IN120 Mortise Lock

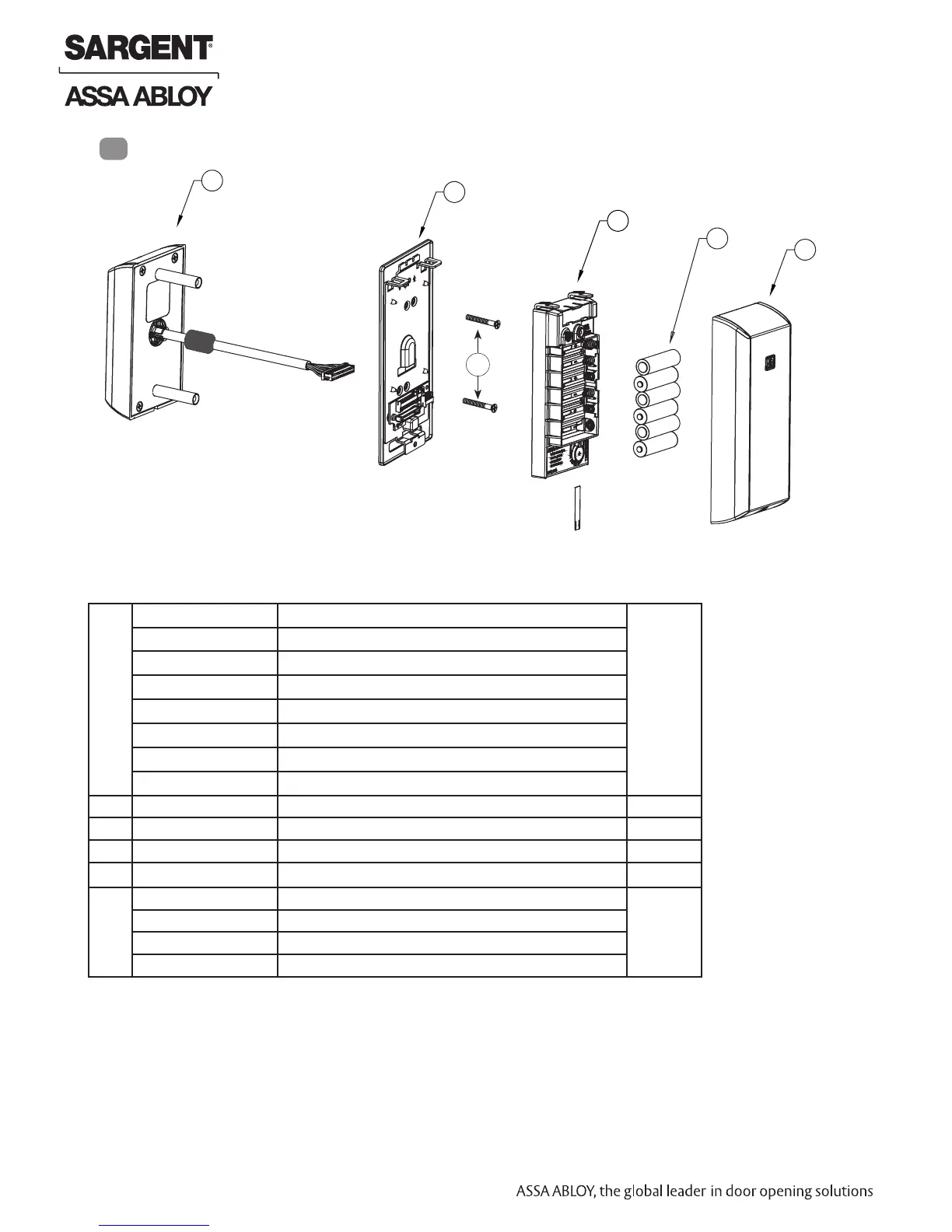

Parts Breakdown
5
1*
5
4
3
2
2a
1 IN-EM01-IPS-B Reader assembly - black plastic 1
IN-EM01-IPS-W Reader assembly - white plastic
IN-EM01-CP-B Reader assembly - FeliCa - black plastic
IN-EM01-CP-W Reader assembly - FeliCa - white plastic
IN-EM01-IPS-MB-xx* Reader assembly - black metal
IN-EM01-IPS-MW-xx* Reader assembly - white metal
IN-EM01-CP-MB-xx* Reader assembly - FeliCa - black metal
IN-EM01-CP-MW-xx* Reader assembly - FeliCa - white metal
2 IN-120-EM04 Mounting plate assembly 1
2a Through-bolts (#8-32 x 1 1/4”) 2
3 IN-120-EM03 Controller assembly 1
4 N/A AA battery 6
5 IN-EM02-B Battery cover assembly - black plastic 1
IN-EM02-W Battery cover assembly - white plastic
IN-EM02-MB-xx* Battery cover assembly - black metal
IN-EM02-MW-xx* Battery cover assembly - white metal
* Specify finish
ITEM
PART NO./ORDER
STRING
DESCRIPTION
QTY.
Tools Required:
• #2 Phillips screwdriver
• Flat head
• T20 Torx
®
driver
• Security allen wrench
(provided)
