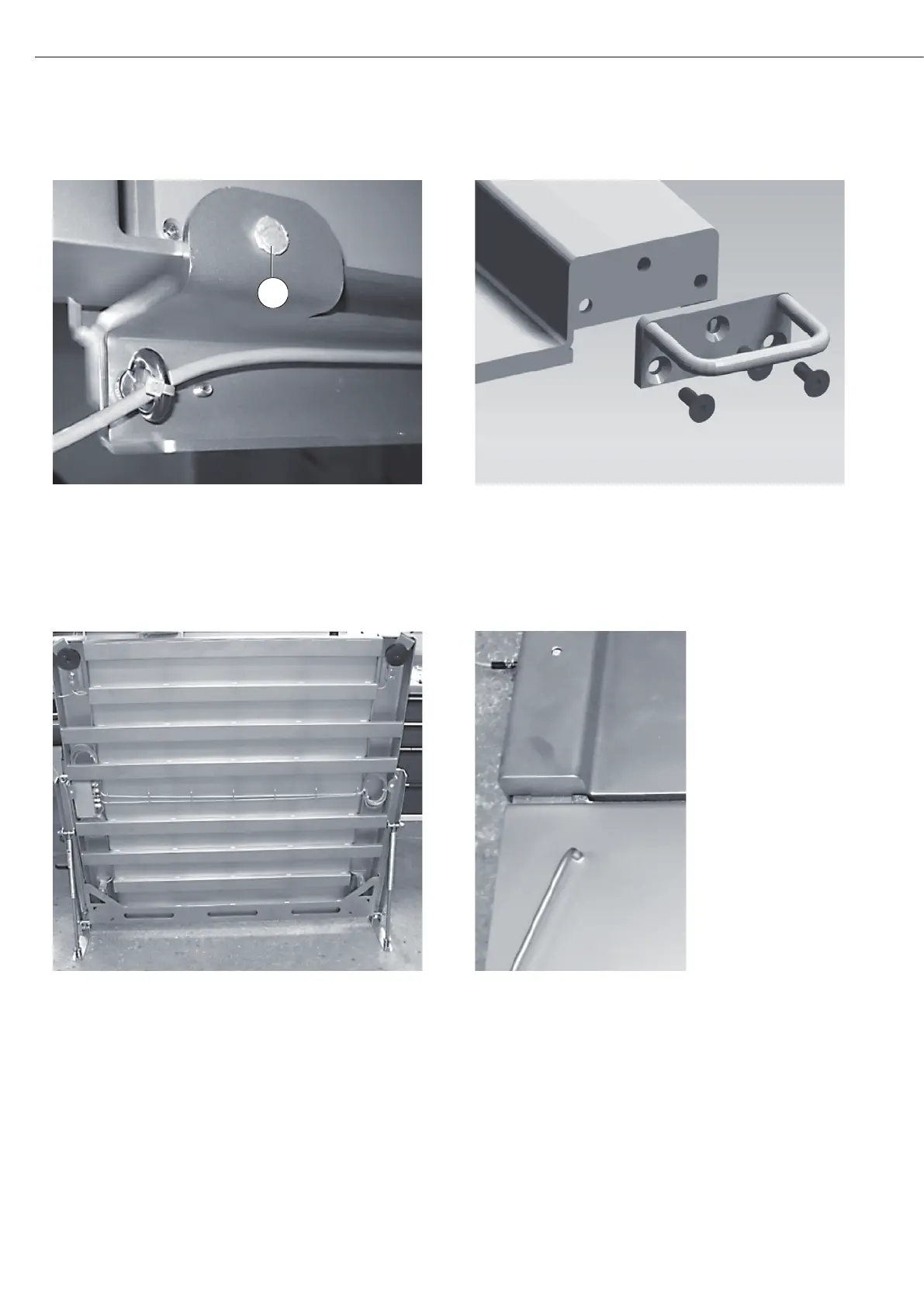

§ Screw the eye bolts to the left longitudinal strut from below
using screws M6 + 20, and fix the measurement cable to the eye
bolts with a cable clip.
§ Press in the plastic impact cap (19) to protect the flooring.
§ When lifting up and down for the first time, ensure that the
measurement cable is not damaged or squashed.
§ Mount the grips to the scale platform:
Drill holes on the front side and secure the grips using screws
and nuts.
§ Mount the drive-on
ramp:
Attach the drive-on
ramp on the right
and left side of the
equipment.
