Sartorius IF Series User Manual

11
Connecting the IF.. Flat-bed Scale
Connecting Cable: IF … to Display and Control Unit or Indicator
011 MP58
Cable, gray or Cable, green
V + (Supply voltage +) blue red
V – (Supply voltage -) black/brown blue
Signal + (Output signal +) white green
Signal – (Output signal -) red/pink gray
Sense + (Sense line +) green white
Sense – (Sense line -) gray black
Ground (Shield) (Shield) (Shield)

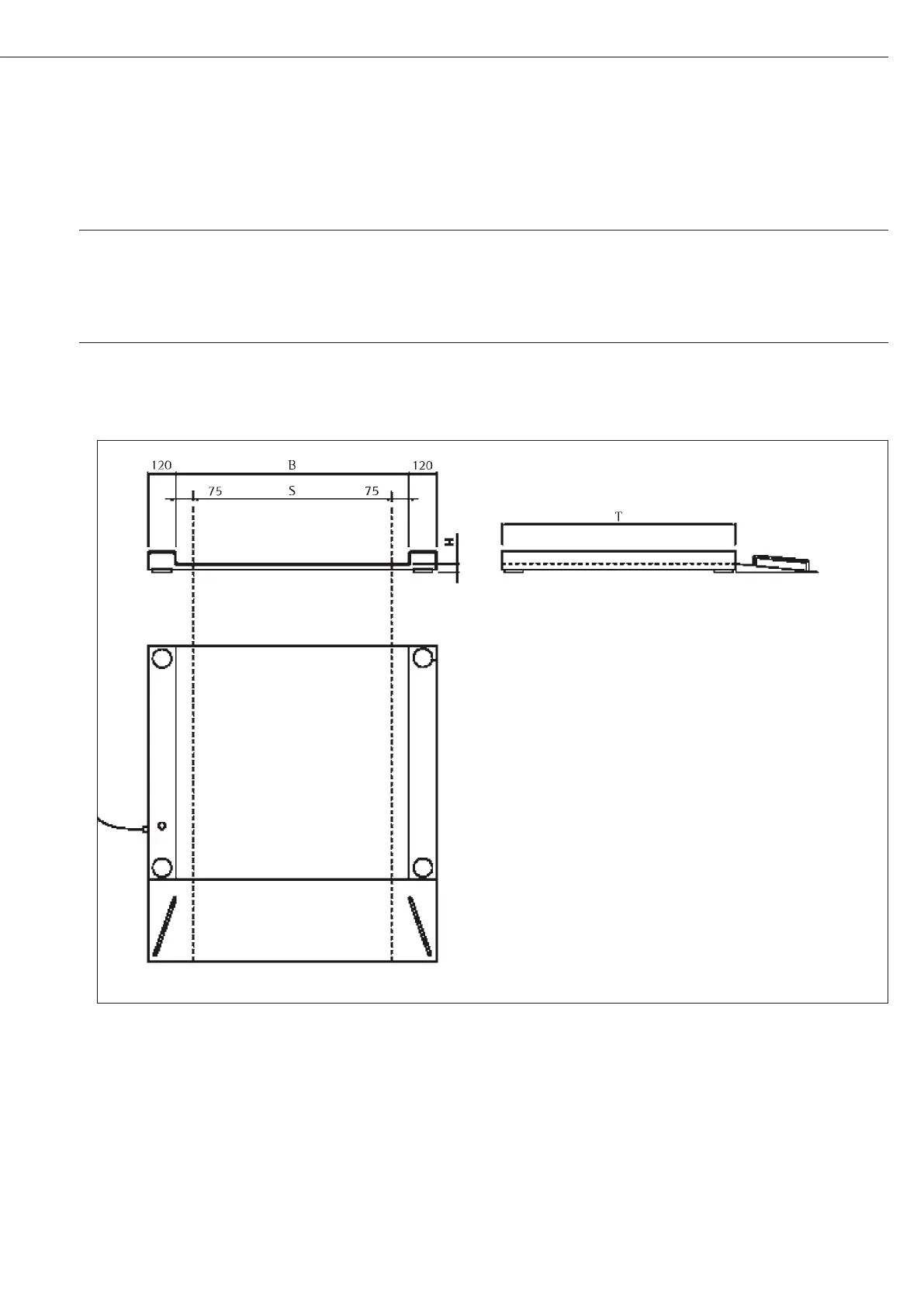

Diagram Showing Loading Areas
Foot
Level indicator
Ramp
B = Clearance width
T = Clearance depth
H = Clearance height
S = Minimum wheel gauge of the vehicle
(applies to all optional profile heights)
