Edition du 29/03/12 4/16 U508113-e Révision 4

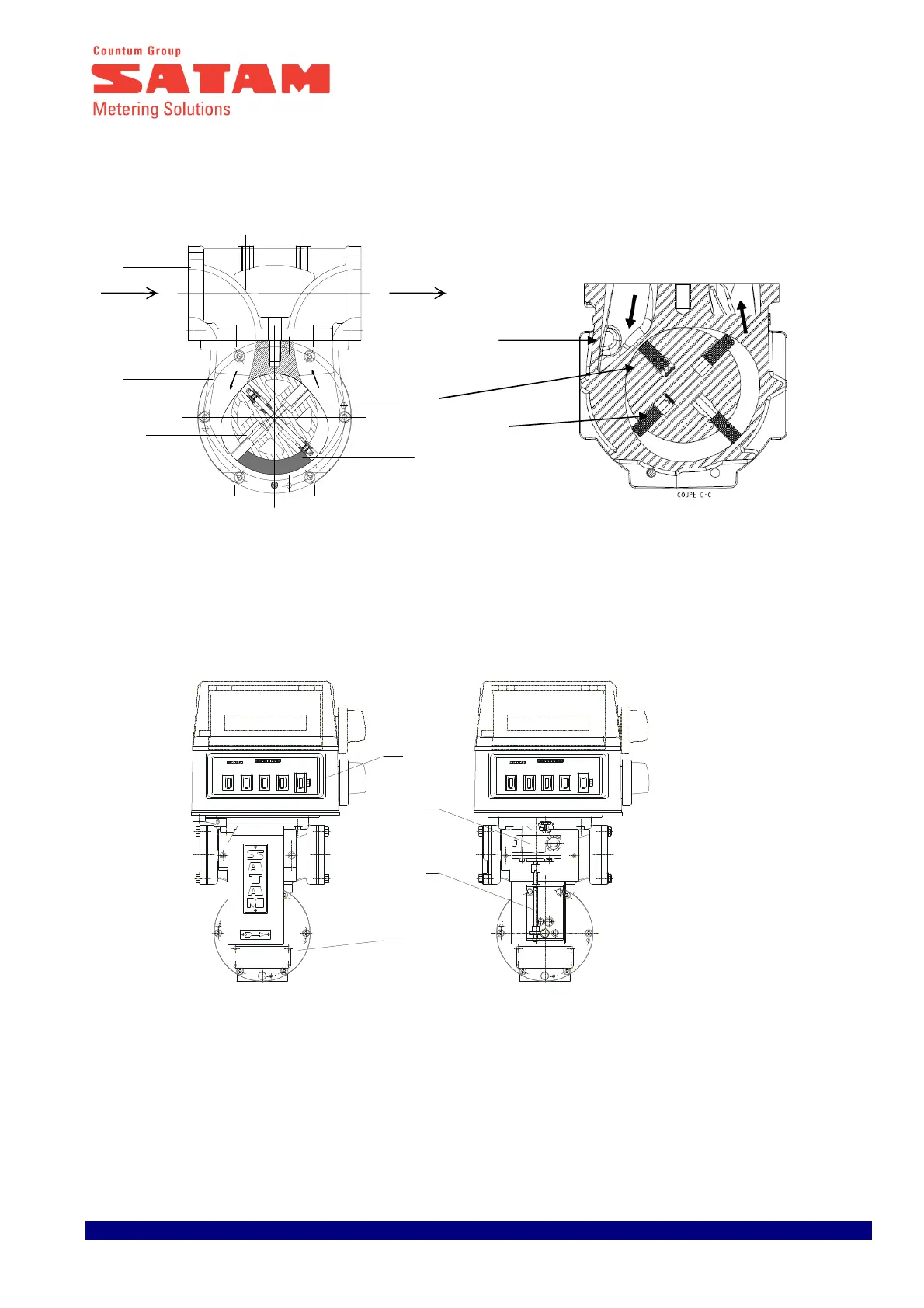

Cell with the shape in the axis of the body
Cell with the shape in 45 ° of the
axis of the
body
4. Components
After removing the meter from its packaging, you will find it is composed of the following elements :
Standard Meter
- Positive displacement measuring chamber (1)
- Transmission system (2)
- Calibrating mechanism model AB 35 (3)
- A meter head (4) mechanics or electronics
reading in litter or gallons, according to the customer requirement.
- The transmission system (2) and the calibrating mechanism AB35 (3) are replaced by a pulser, for meter using
an electronic calculator.
LITRE
LITRE
jauge
4
1
3
2
4
1
3
2
5
A B
3
A
