Edition du 29/03/12 8/16 U508113-e Révision 4

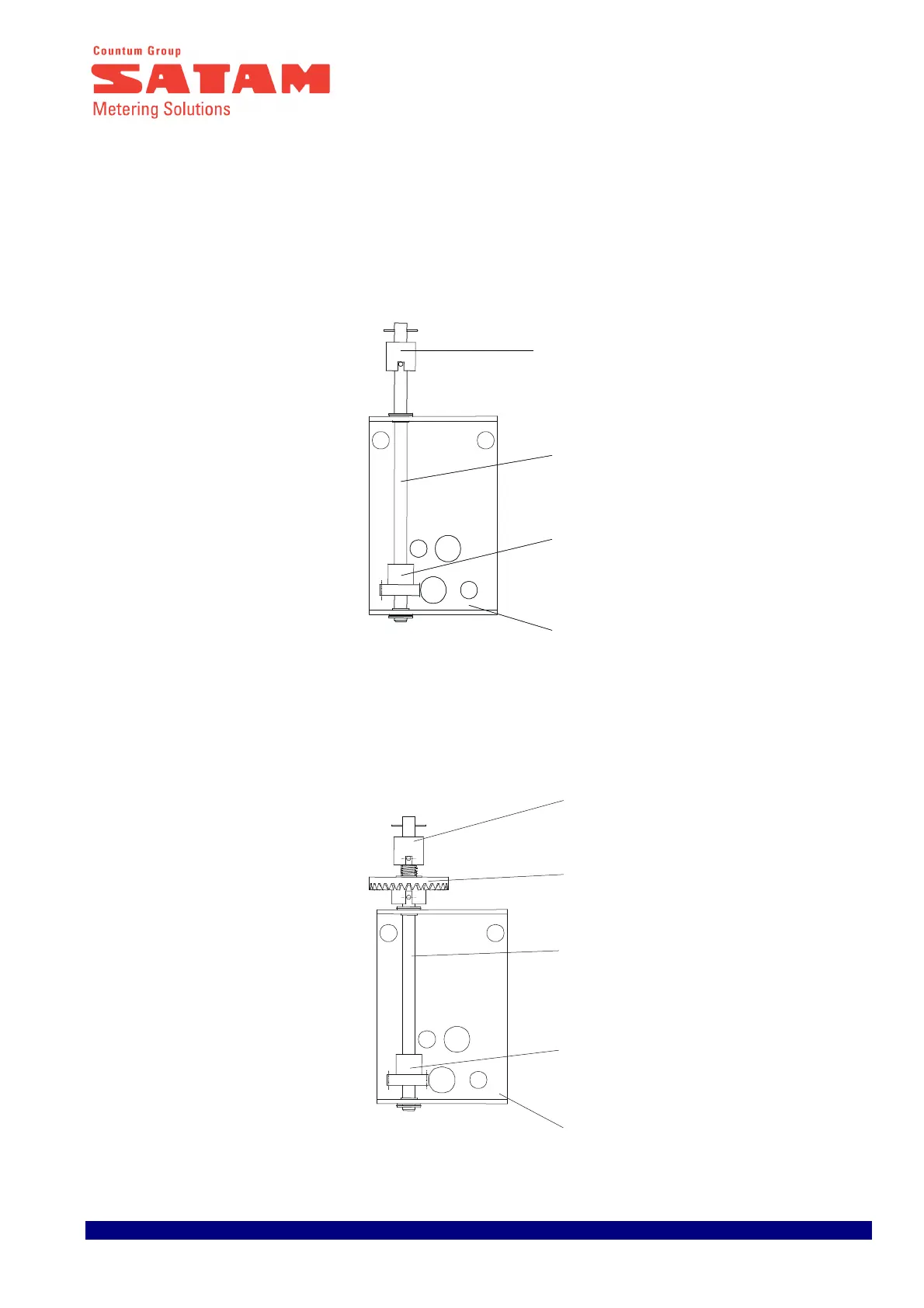

5.3. A transmission system for mechanical indicator
The transmission system forms the link between the measuring chamber and the calibrating mechanism. Two
different types of system are available :
standard system consisting of :
- a housing (1)
- a drive axle (2)
- a measuring chamber outlet gear (3)
- a transmission(4)
a system designed to receive a "Instantaneous Flow Rate" consisting of :
- a housing (1)
- a drive axle (2)
- a measuring chamber outlet gear (3)
- a drive gear to drive the "Instantaneous Flow Rate" (5)
- a transmission (4)
4
2
3
1
4
5
2
