2 INT-S SATEL
The INT-S partition keypad:
• allows the user to control one partition of the alarm system,
• can control the access to a single door.
The keypad is compatible with the INTEGRA / INTEGRA Plus alarm control panels. The
keypad is offered in two versions differing in key backlight color:
INT-S-GR – green backlight,
INT-S-BL – blue backlight.

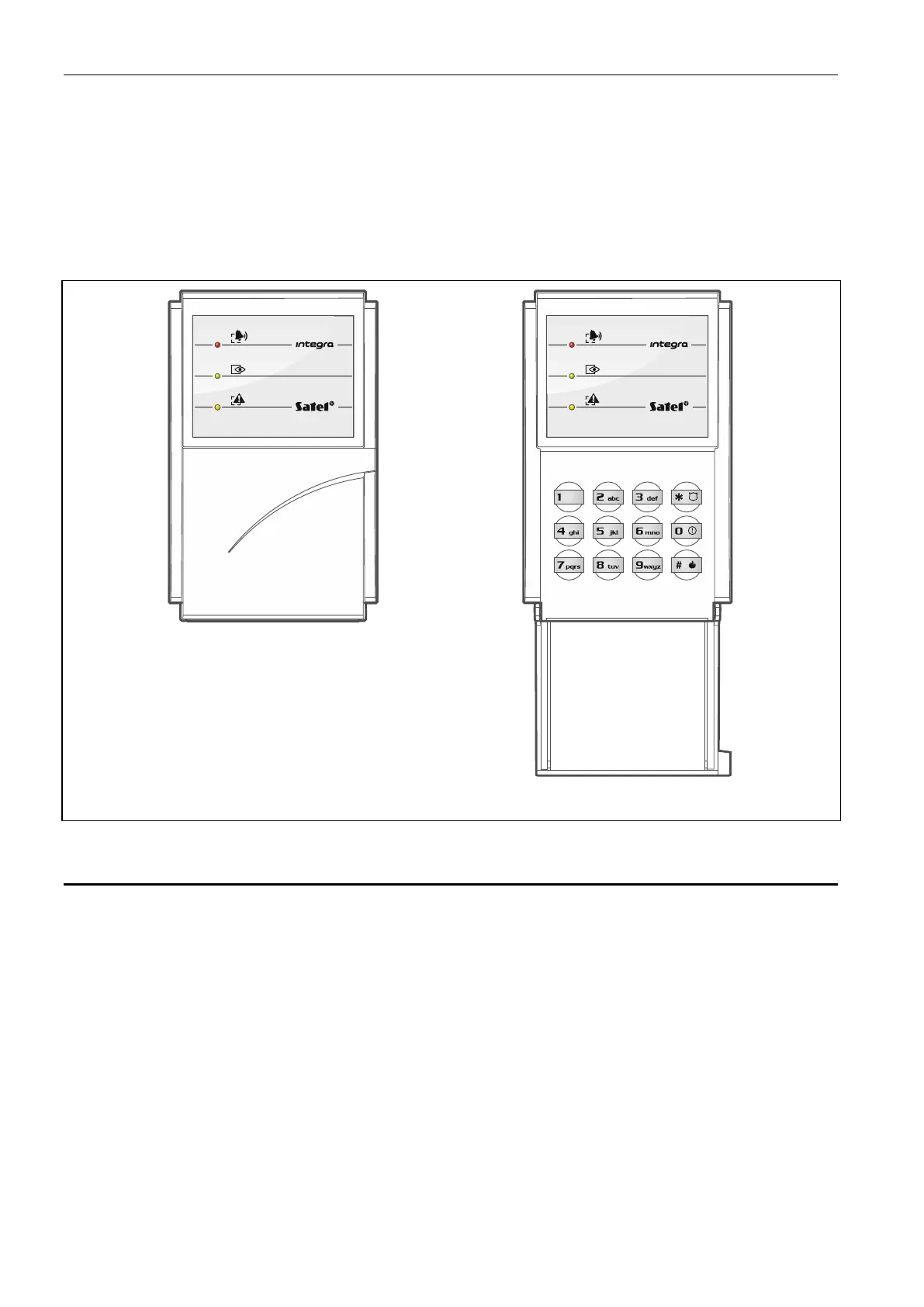

Fig. 1. INT-S partition keypad with closed and open flap cover.
1. Features
• Arming / disarming and alarm clearing in partition.
• Capability of triggering alarm from the keypad.
• Single door control:
– relay output for control of electric strike, electromagnetic lock or another door actuator,
– door status input (NC).
• Control of “24. MONO switch” and “25. BI switch” type outputs.
• The ability to change access code by the user.
• LEDs indicating the partition status.
• 12 keys with backlighting.
• Built-in sounder.
• Tamper protection against enclosure opening and removal from the wall.
