SatKing PRO MAX User manual - 18

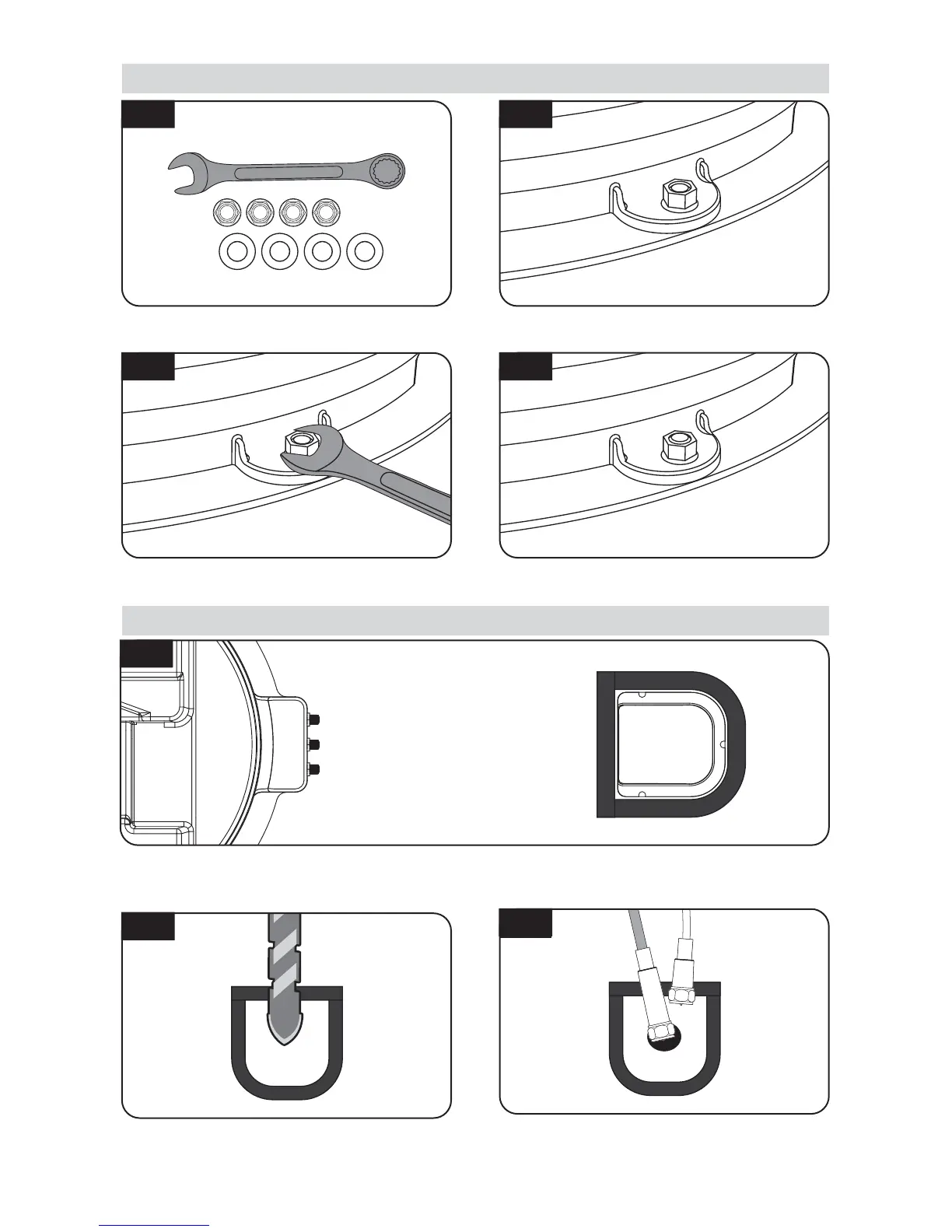

D. Fix the antenna main unit with 4 pcs of nuts using spanner
E. Cable holder installation 1
Make sure you check and four (4) nuts are
tightened
Fit the supplied nuts to each of the four bolts
and tighten rmly with spanner
Place the antenna on the aluminium plate and
place the washers over each bolt
Parts required, spanner, four(4) nuts and four(4)
washers
Make sure that hole size is big enough to insert
all cables together by one and one
E-2
Place cable holder around 30CM from the rear centre of the antenna. Apply friction tape 5mm from
the outside of the holder
E-3
E-1
Drill a 20mm hole (or larger) in the centre of the
tape marking
D-2D-1
D-4D-3
