Freyja GNSS RTK System User Manual
www.satlab.com.se 19

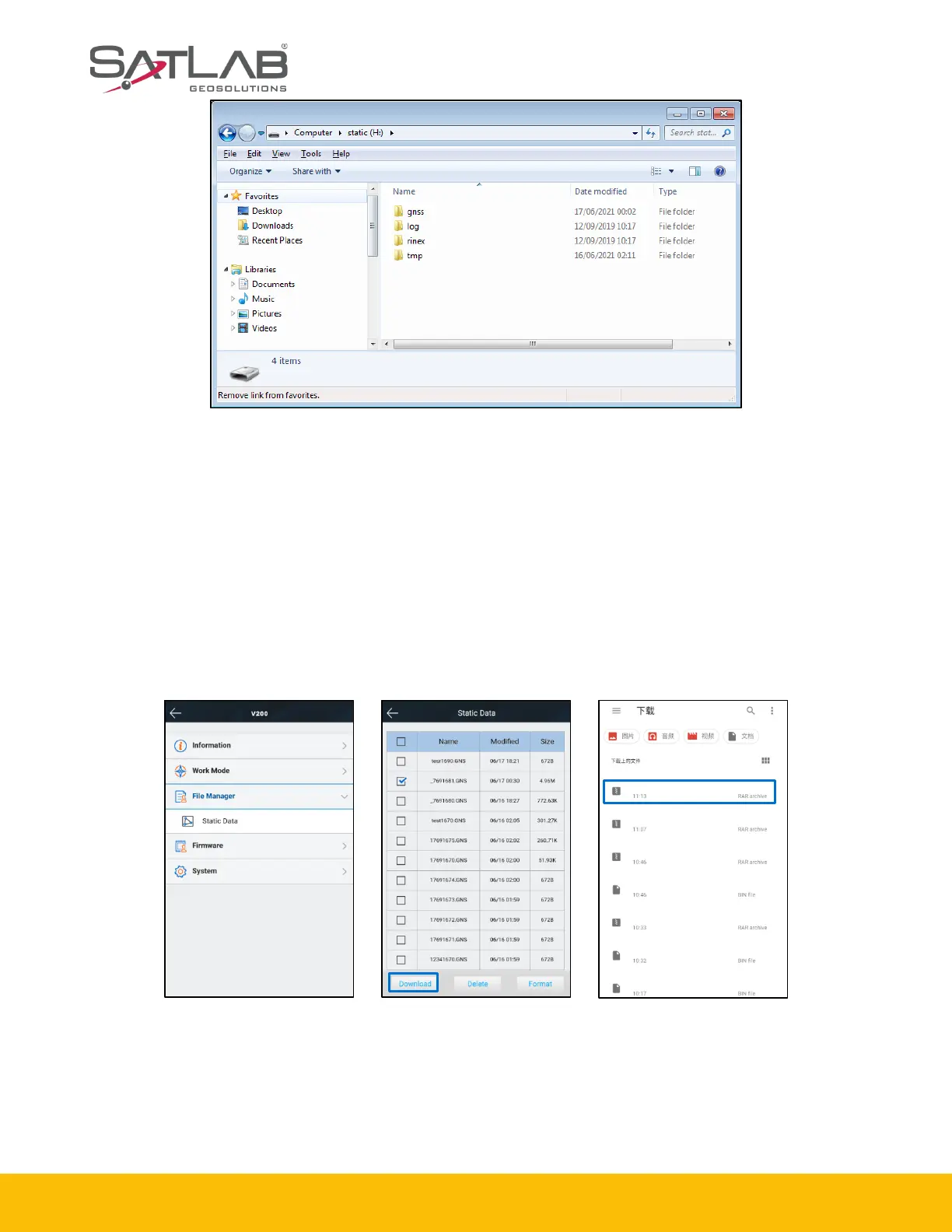

Figure 2-4-3
2. Download in the web management system
The Wi-Fi name of the receiver is its S/N. You can connect it to a controller or phone (the default
password is: 12345678) and then input the IP address 192.168.20.1 into the browser to log into the
WEB management system. Now, open the file manager interface and select the static file that needs
to be exported. Click Download and the file can be downloaded to the controller or phone.
The default save path of the static data to be downloaded from the website is: device internal
storage > MyFavorite. You can customize the save path according to your needs.
Figure 2-4-4 Figure 2-4-5 Figure 2-4-6
To Next Page
