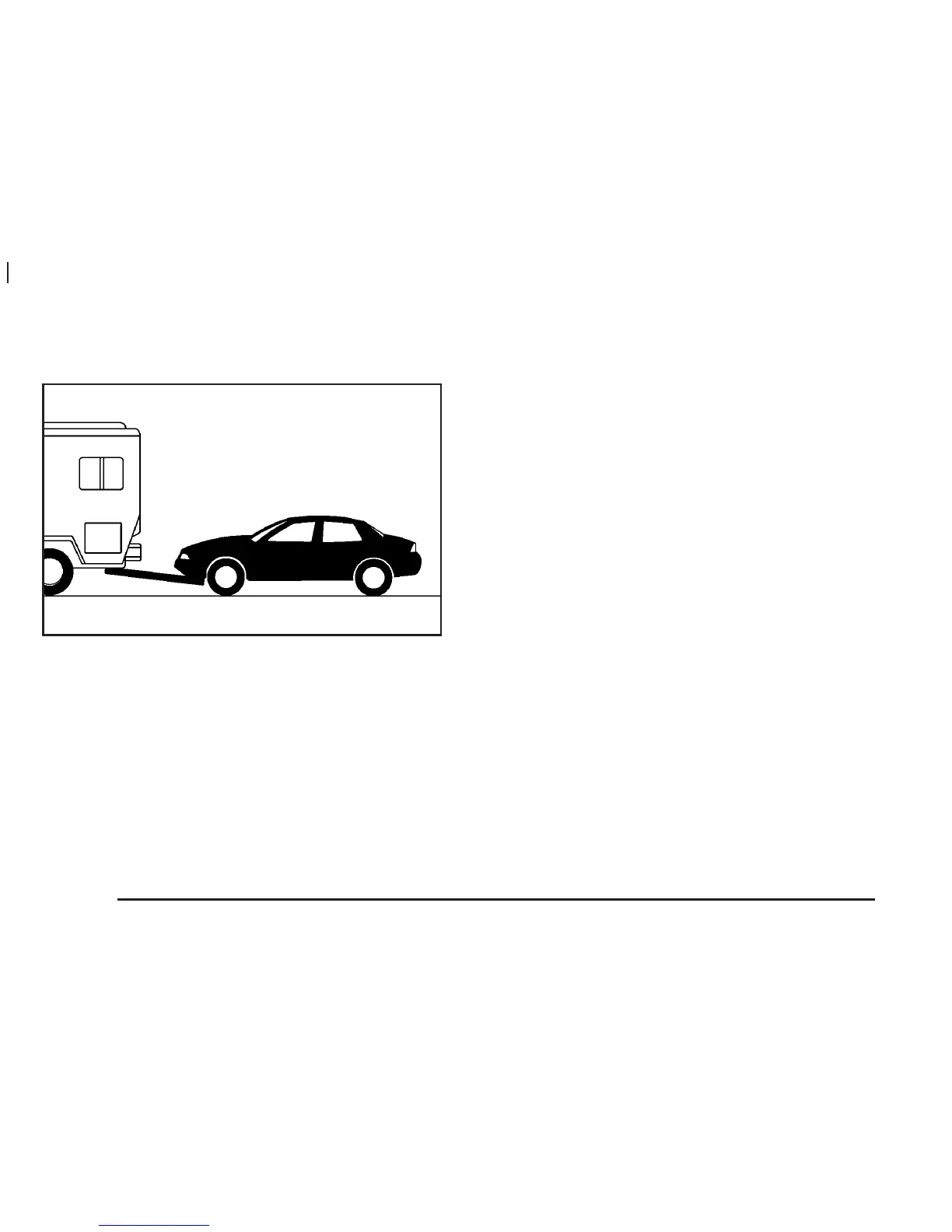

Dinghy Towing (Manual Transaxle)
To tow your vehicle from the front with all four wheels
on the ground, do the following:
1. Set the parking brake.
2. Turn the ignition key to ACC.
3. Shift your transaxle to NEUTRAL.
4. Locate and remove the IP BATT2 fuse from the
engine compartment fuse block.
5. Release the parking brake.
Once you have reached your destination, be sure to
replace the IP BATT2 fuse to its original location in the
engine compartment fuse block.
Notice: Too much or too little fluid can damage the
transaxle. Be sure that the transaxle fluid is at the
proper level before towing with all four wheels
on the ground.
Notice: Don’t tow a vehicle with the front drive
wheels on the ground if one of the front tires is a
compact spare tire. Towing with two different
tire sizes on the front of the vehicle can cause
severe damage to the transaxle.
4-32
