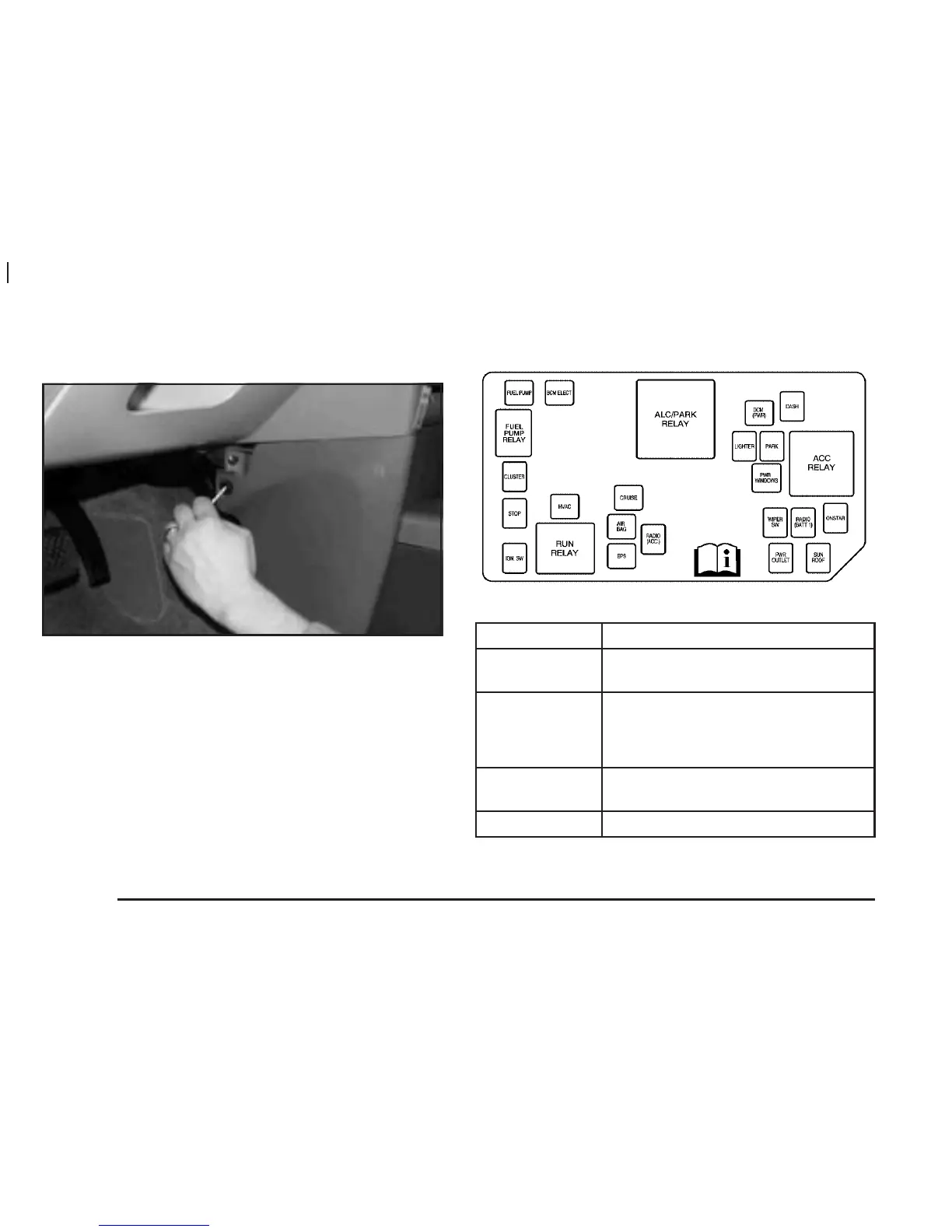

Instrument
Panel
Fuse
Block
Some
fuses
are
in
a
fuse
block
on
the
driver’s
side
of
the
vehicle,
near
the
driver’s
right
leg.
Loosen
the
screw
on
the
cover
and
remove
the
cover.
Fuses
Usage
AIR
BAG
Air
bags,
Sensing
and
Diagnostic
Module
(SDM)
ACCOMMO-
DATION
INTERFACE/
ONSTAR
Entertainment,
Mobile
Communications,
OnStar
CRUISE
Cruise
Control
Module,
Clutch
Start
Switch
EPS/CRUISE
Cruise
Control
Switches,
EPS
Unit
5-96
325
327
