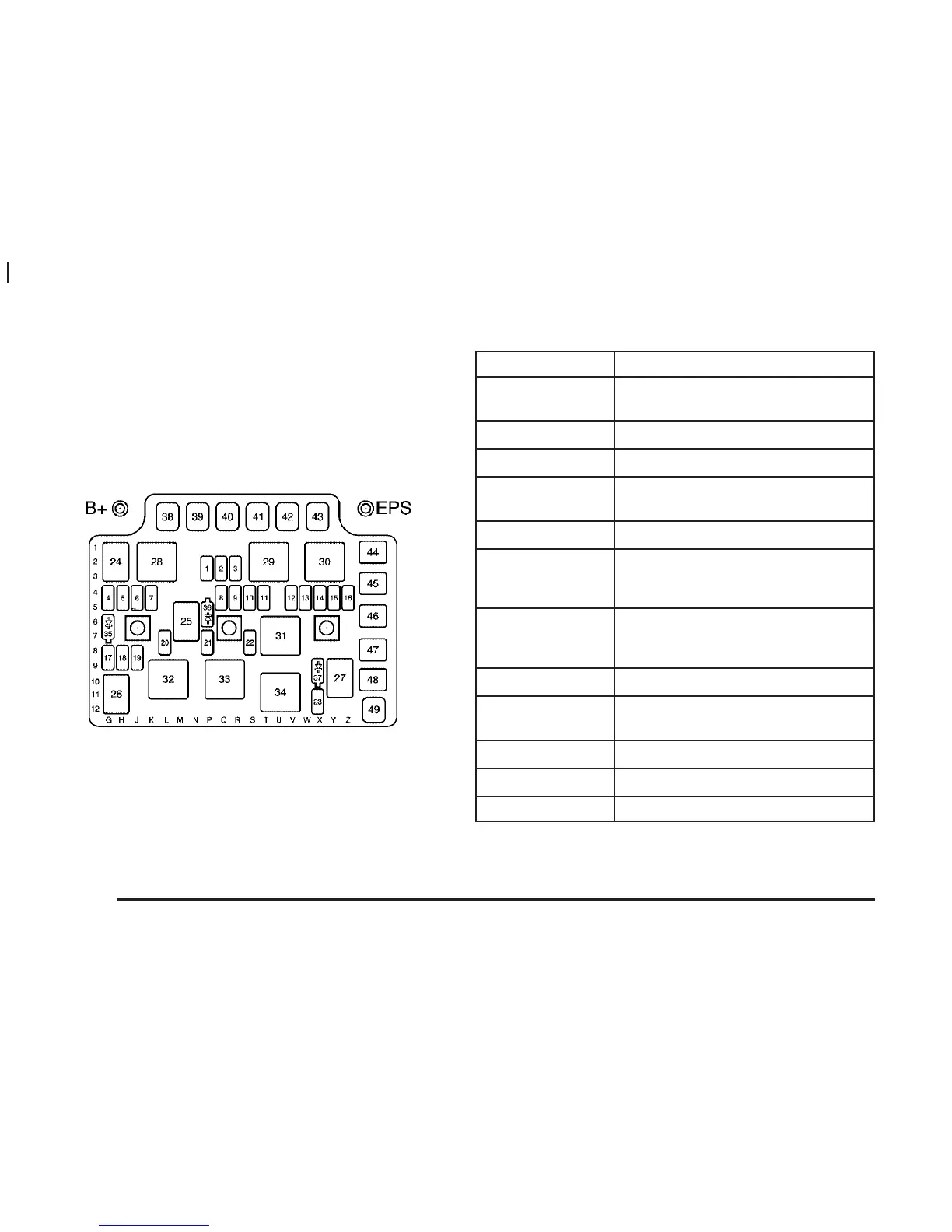

Engine Compartment Fuse Block
(2.2L L4 Engine)
Some fuses are in a fuse block in the engine
compartment on the driver’s side of the vehicle.
See Engine Compartment Overview on page 5-12 for
more information on location.
Fuses Usage
1 ECM/TCM
Engine Control Module,
Transmission Control Module
4 HDLP-RH Passenger’s Side Headlamp
5 A/C Air Conditioning Clutch Relay
8 ABS2
Anti-Lock Brake System,
Traction Control Module
9 ECM Engine Control Module
10 ERLS
Canister Purge Solenoid, Canister
Vent Solenoid, Low Coolant
Switch, Oxygen Sensors
11 IGN
Electric Ignition Control Module,
Charging System, Neutral Stop
Back-Up Switch
13 TRANS2 Transaxle (VTi Variable)
14 TRANS1
Transmission Control Module,
Neutral Stop Back-Up
15 BACK-UP PRNDIL, Back-up Switch
16 INJECTORS Fuel Injectors (Cylinder 1, 2, 3, 4)
17 FOG Fog Lamp Micro Relay
5-98
