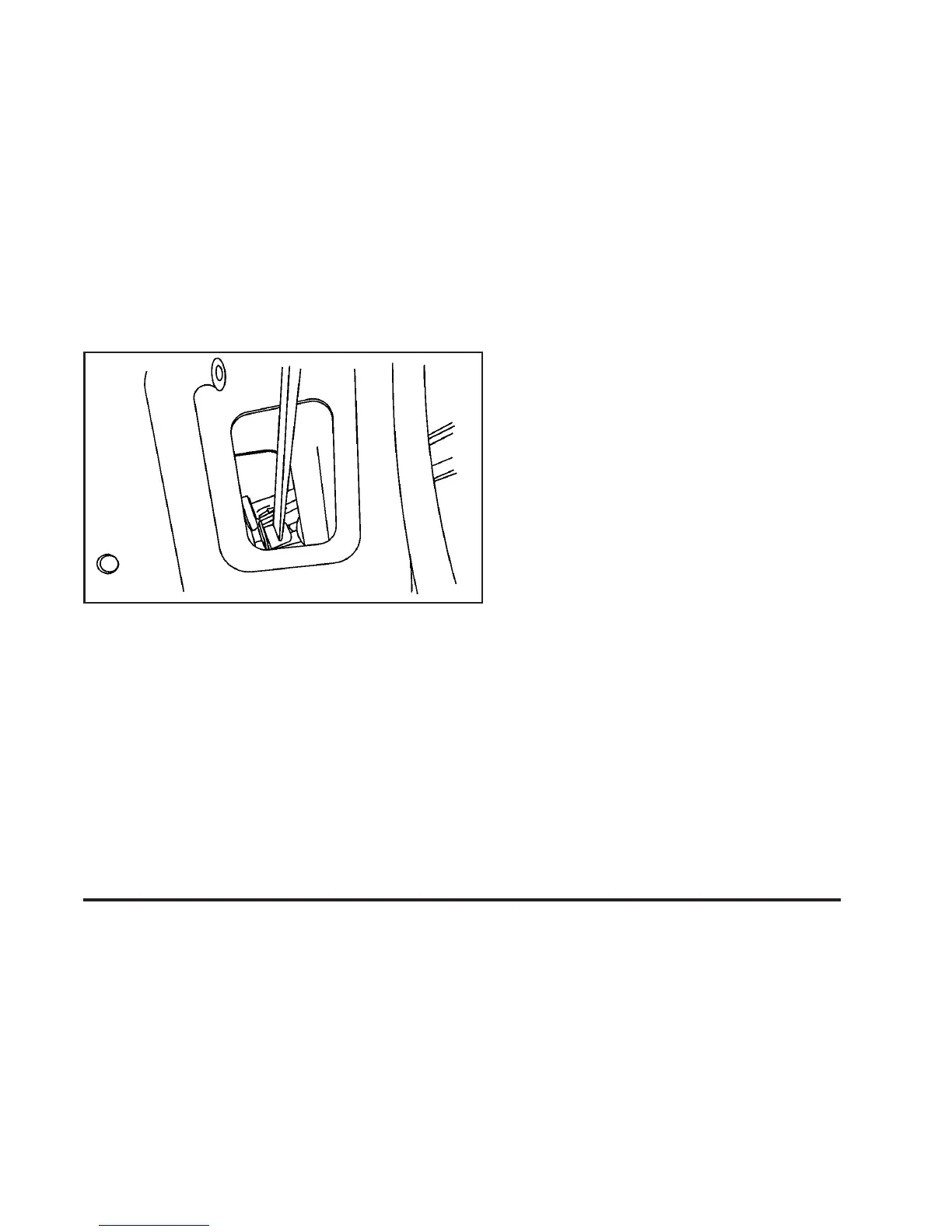

5. Push the locking tab toward the rear of the vehicle
with the tool to lift the headlamp bracket lower arm.
6. Pull back on the front fascia and then pull the
headlamp assembly out from the vehicle. You
may need someone to assist you with this step.
7. Disconnect the electrical connector from the bulb
assembly.
8. Rotate the bulb assembly counterclockwise to
remove it from the housing.
9. Replace the old bulb with a new one.
10. Reverse Steps 1 through 8 to reinstall.
Front Turn Signal and
Parking Lamps
To replace a front turn signal or parking lamp bulb,
do the following:
1. Follow Steps 1 through 6 under Headlamps on
page 5-49 to access the front turn signal or
parking lamp.
2. Rotate the bulb to be replaced counterclockwise
to remove it from the headlamp assembly.
3. Pull the bulb out of the bulb socket assembly.
5-51
