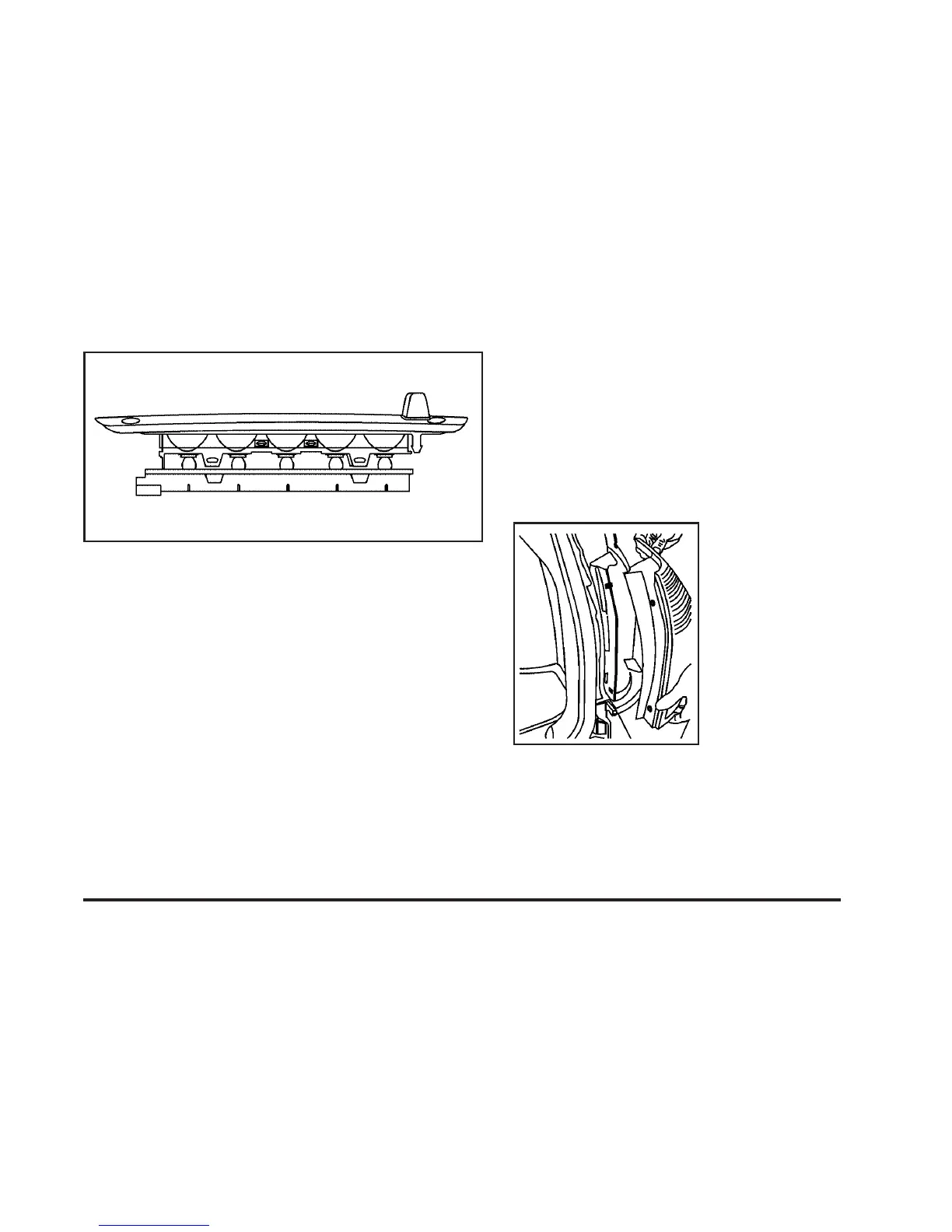

5. Depress the tabs on the CHMSL lens to separate
the CHMSL bulb from the CHMSL lens.
6. Pull the CHMSL bulb out of the assembly.
7. Replace the old bulb with a new one.
8. Align the tabs on the CHMSL lens with the CHMSL
bulb assembly, and push to install.
9. Reverse Steps 1 through 4 to reinstall the CHMSL
assembly.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
To replace one of these bulbs, do the following:
1. Open the liftgate. See Liftgate on page 2-11 for
more information.
2. Remove the two screws retaining the taillamp
assembly.
3. Slide the taillamp
assembly rearward
and away from
the vehicle.
4. Disconnect the electrical connector and remove it
from the taillamp assembly.
5-53
