Headlamps
To replace one of the headlamp bulbs, use the following
procedure. To replace the parking/turn signal lamp
bulb, see Front Turn Signal and Parking Lamps
on page 5-43.
1. Open the hood. See Hood Release on page 5-11
for more information.
2. Remove the two screws from the top of the front
fascia and grille. They are inboard of the headlamp
assembly.
3. Remove the three screws retaining the headlamp
assembly.
4. Insert a flat blade tool through the opening in the
top. Make sure the tool fits through the opening in
the headlamp bracket lower arm.
5. Push the locking tab toward the rear of the vehicle
with the tool to lift the headlamp bracket lower arm.
6. Pull back on the front fascia and then pull the
headlamp assembly out from the vehicle. Another
person might be needed to assist with this step.

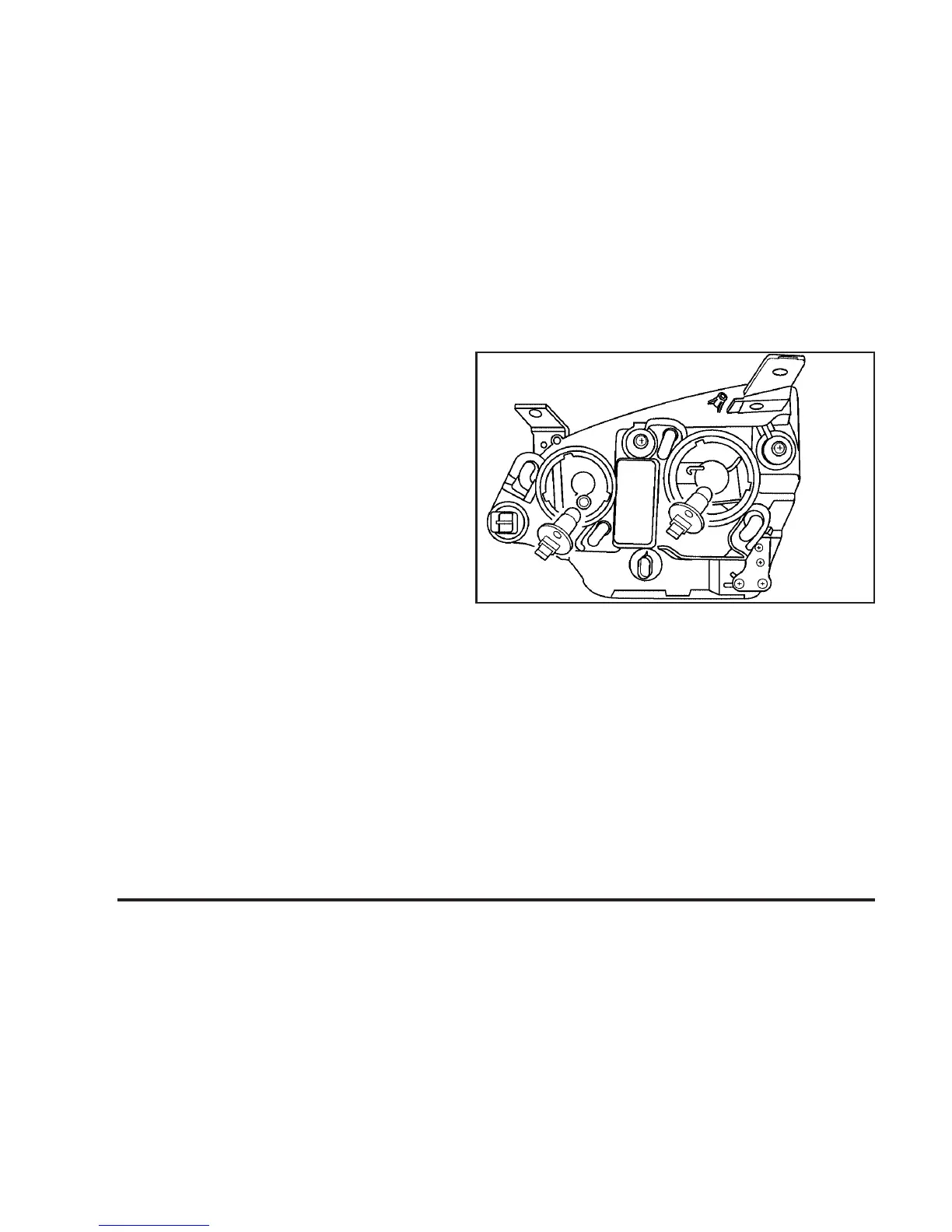

7. Disconnect the electrical connector from the bulb
assembly.
8. Turn the bulb assembly counterclockwise to remove
it from the housing.
9. Replace the old bulb with a new one.
10. Reverse Steps 1 through 8 to reinstall.
5-42
