Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by fuses. This greatly reduces the chance
of circuit overload and fire caused by electrical
problems.
There are three fuse blocks - the main underhood fuse
block, the auxiliary hybrid underhood fuse block and
the instrument panel fuse block.
To identify and check fuses and relays, refer to the
Fuse Usage Chart on the inside surface of the
fuse panel door.
Instrument Panel Fuse Block

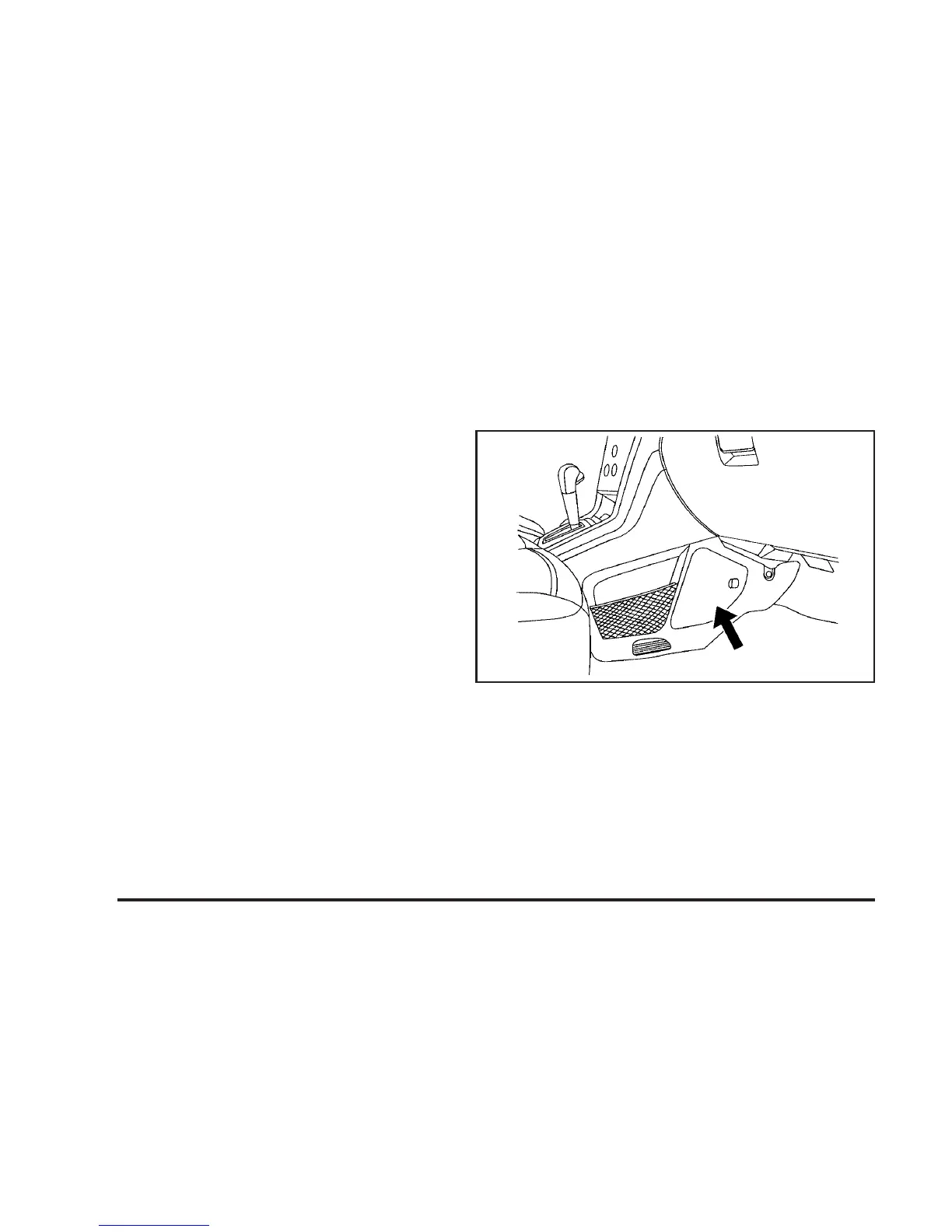

The instrument panel fuse block is located on the
passenger side of the lower console.
Pull the latch of the fuse box cover straight back to
access the fuses.
