A. Vehicle Capacity Weight for
Example 2 = 1,000 lbs
(453 kg).
B. Subtract Occupant Weight
150 lbs (68 kg) × 5 = 750 lbs
(340 kg).
C. Available Cargo
Weight = 250 lbs (113 kg).
A. Vehicle Capacity Weight for
Example 3 = 1,000 lbs
(453 kg).
B. Subtract Occupant Weight
200 lbs (91 kg) × 5 =
1,000 lbs (453 kg).
C. Available Cargo
Weight = 0 lbs (0 kg).
Refer to your vehicle’s tire and
loading information label for
specific information about your
vehicle’s capacity weight and
seating positions. The combined
weight of the driver, passengers,
and cargo should never exceed
your vehicle’s capacity weight.
Certification/Tire Label
A vehicle specific Certification/
Tire label is attached to the lower
area of the center pillar (B-Pillar).

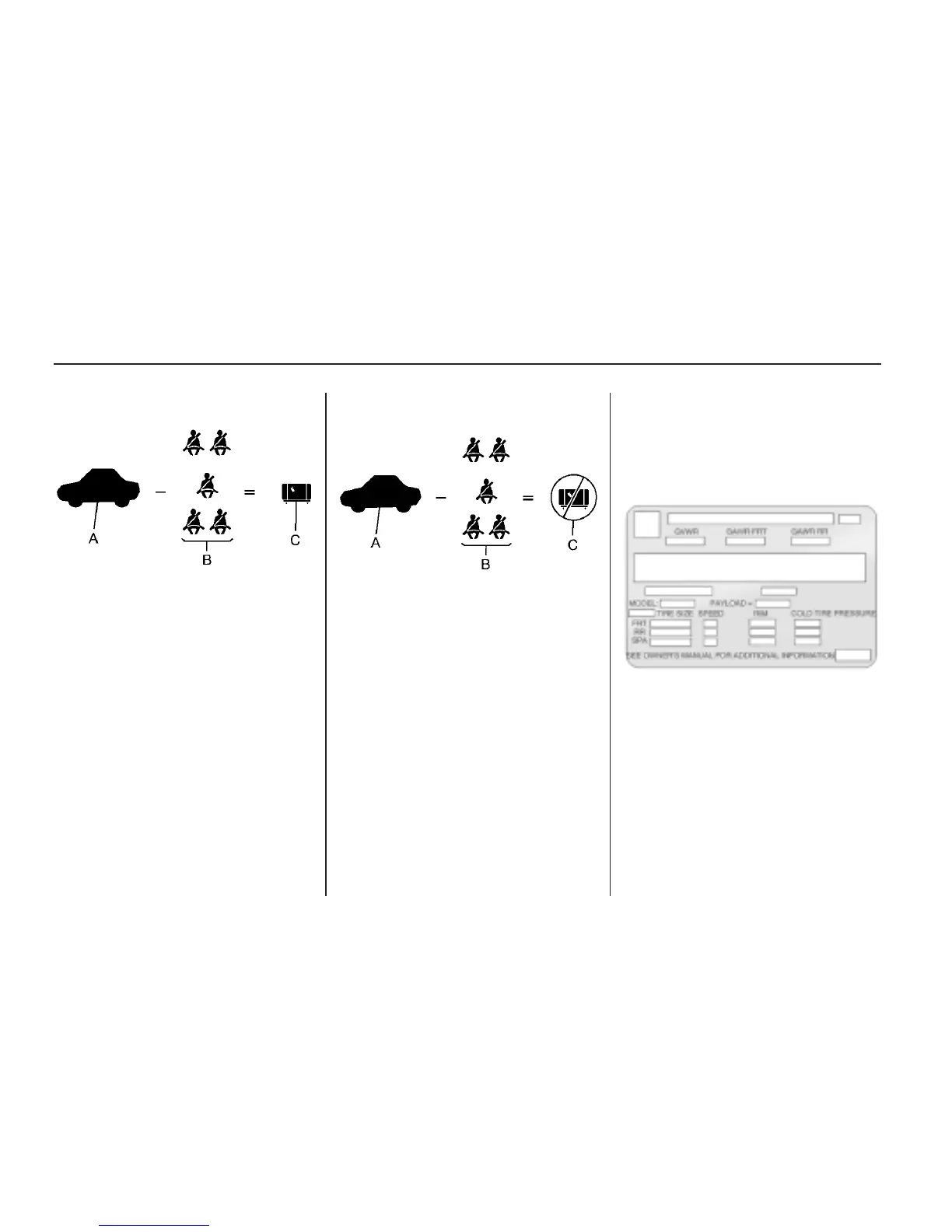

Example 2
Example 3
Label Example
4-30 Driving Your Vehicle
