3
158085
CAM
SCREW (R2)
Arrow
HIDDEN
CAM (Q2)
SHELF (D)
SHELF
MOLDING (K)

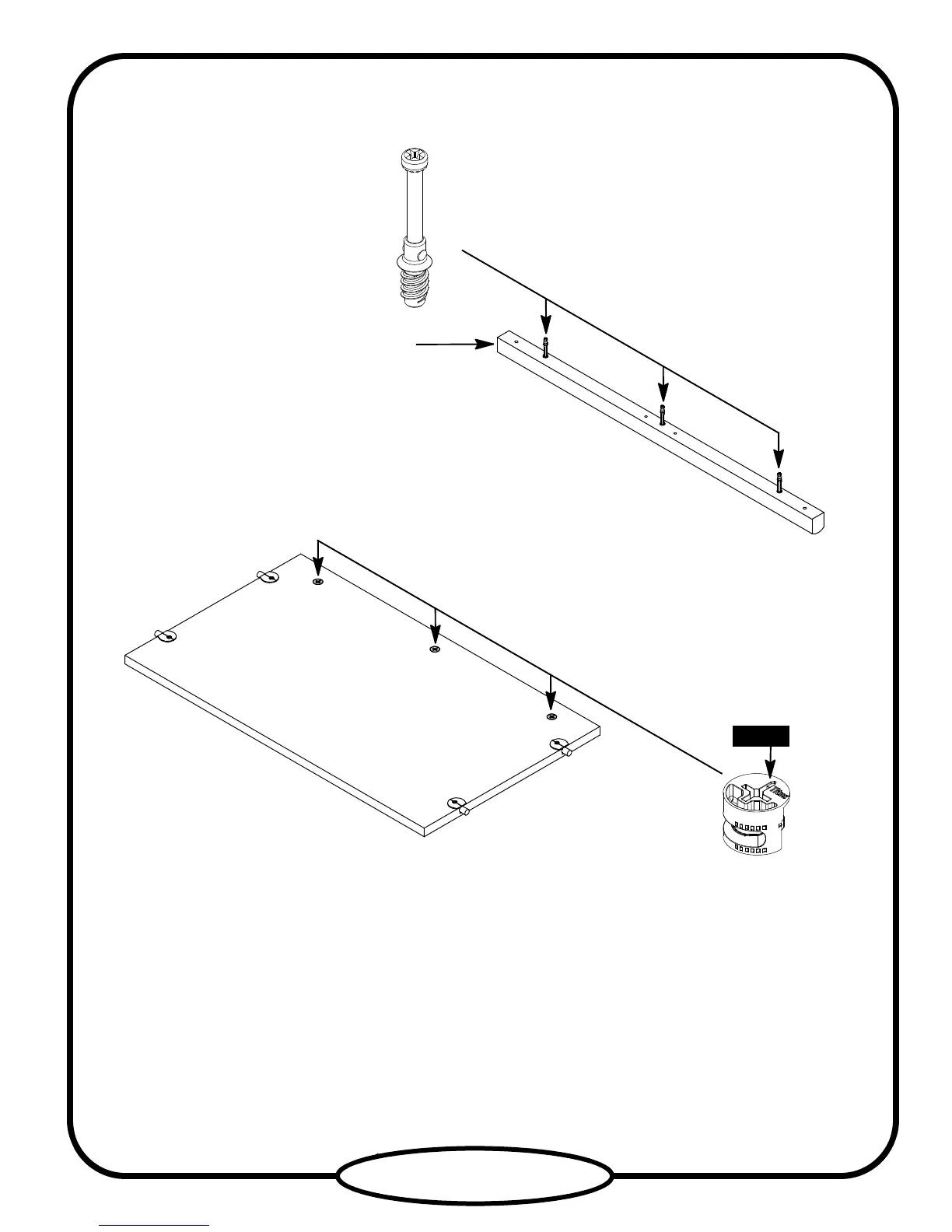

- Use your screwdriver to turn three CAM SCREWS (R2) into the SHELF MOLDING (K).
NOTE: Be sure to use the exact holes shown. Turn the CAM SCREWS until they are tight.
- Insert three HIDDEN CAMS (Q2) into the large holes in the SHELF (D).
NOTE: Be sure the arrow in the top of each HIDDEN CAM is facing the direction shown. Follow the
enlarged diagram closely.
www.sauder.com/services
