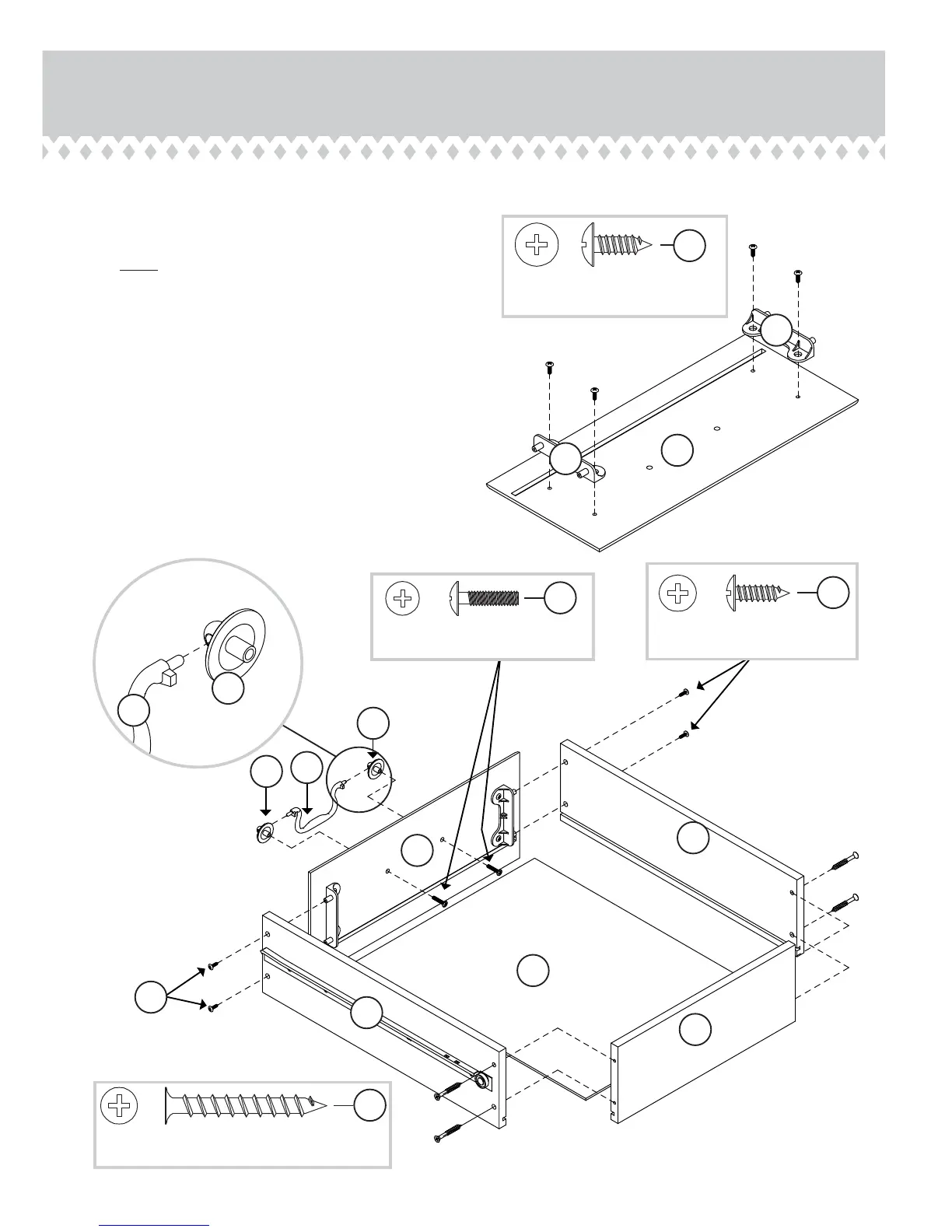

Fasten the PANEL CONNECTORS (J1) to one of the
DRAWER FRONTS (O). Use four BLACK 9/16" PAN HEAD
SCREWS (S4).
å
NOTE: As you assemble the drawer, be sure the DRAWER
BOTTOM (S) inserts into the grooves in the DRAWER
FRONT, DRAWER BACK, and DRAWER SIDES.
å
Fasten the SMALL DRAWER SIDES (P and Q) to the
PANEL CONNECTORS (J1). Use four BLACK 1/2" PAN
HEAD SCREWS (S7).
å
Fasten the SMALL DRAWER SIDES (P and Q) to the
SMALL DRAWER BACK (R). Use four BLACK 1-1/2" FLAT
HEAD SCREWS (S2).
å
Fasten a HANDLE (L1) and two HANDLE BASES (M1) to
a DRAWER FRONT (O). Use two BLACK 9/16" MACHINE
SCREWS (S8).
å
Repeat this step for the other SMALL DRAWER.
Step 16
O
O
P
Q
R
S
BLACK 9/16" PAN HEAD SCREW
(8 used in this step)
S4
BLACK 1-1/2" FLAT HEAD SCREW
(8 used in this step)
S2
Page 20 www.sauder.com 402159
L1
M1
M1
J1
J1
BLACK 1/2" PAN HEAD SCREW
(8 used in this step)
S7
S7
BLACK 9/16" MACHINE SCREW
(4 used in this step)
S8
L1
M1
