Sauder 402159 - Step 17: Large Drawer Side Assembly

å

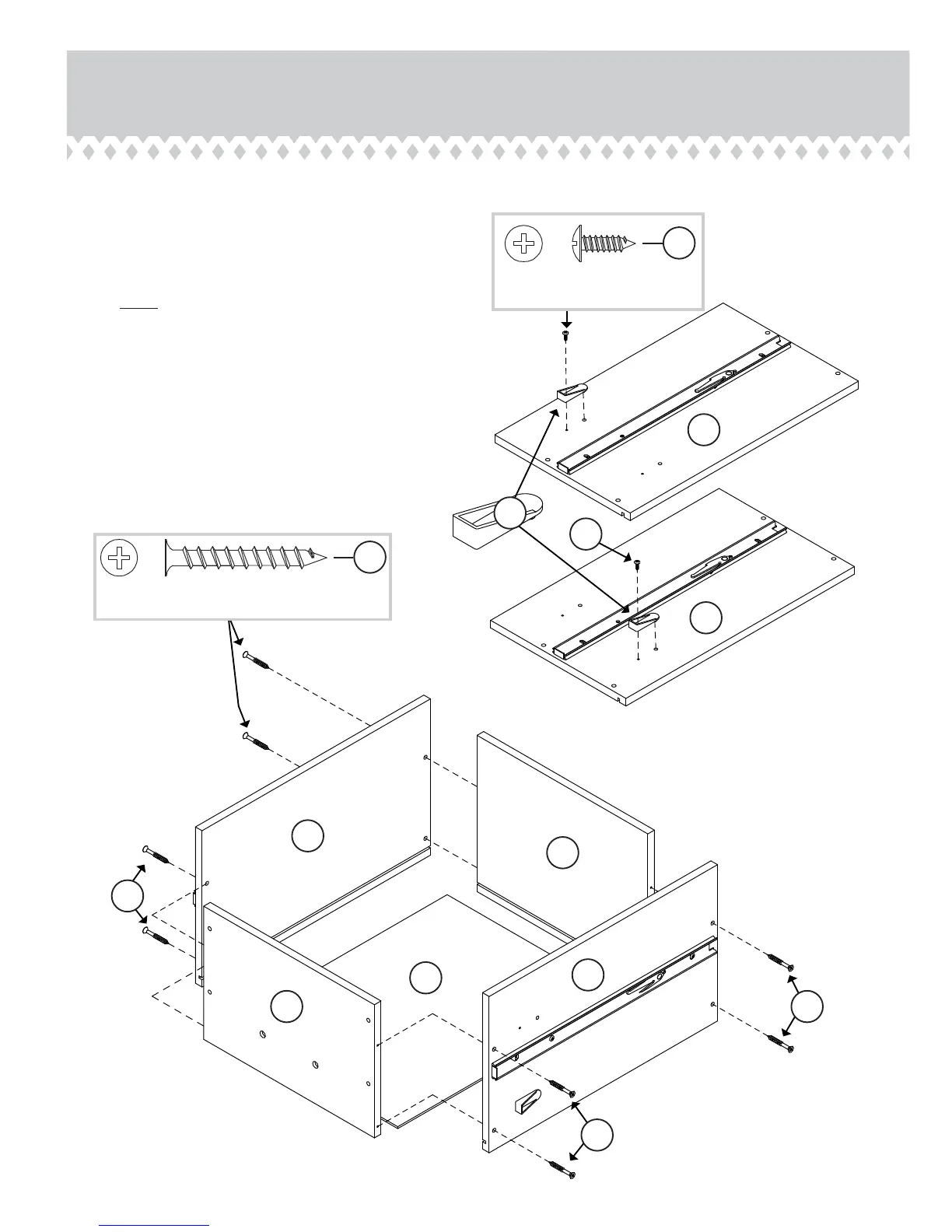

Fasten two LOCK BRACKETS (I1) to two LARGE
DRAWER RIGHT SIDES (I). Use two BLACK 1/2" FLAT
HEAD SCREWS (S7). One LOCK BRACKET will attach
above the SLIDE and other LOCK BRACKET will attach
below the slide.
å
NOTE: As you assemble the large drawer, be sure the
DRAWER BOTTOM (S) inserts into the grooves in the
LARGE DRAWER BACK and LARGE DRAWER SIDES.
å
Fasten the LARGE DRAWER SIDES (H and I) to the LARGE
DRAWER BOX FRONT (J) and LARGE DRAWER BACK (K).
Use eight BLACK 1-1/2" FLAT HEAD SCREWS (S2).
å
Repeat twice the LARGE DRAWER BOX assembly using
parts (H, I, J, K and S) and eight BLACK 1-1/2" FLAT HEAD
SCREWS (S2).
Step 17
BLACK 1/2" PAN HEAD SCREW
(2 used in this step)
S7
BLACK 1-1/2" FLAT HEAD SCREW
(24 used in this step)
S2
