Step 6
å

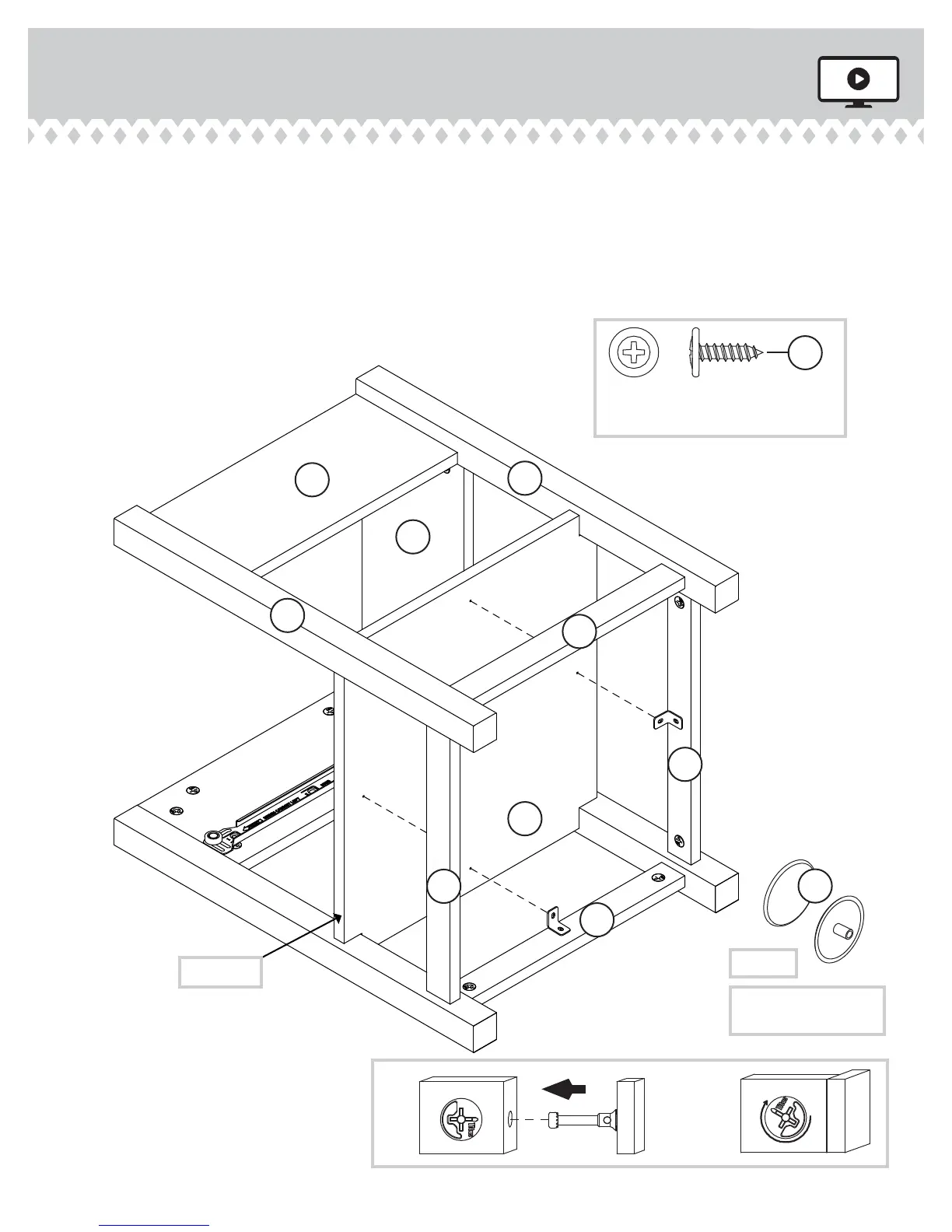

Fasten the BACK (D) and LONG BACK SKIRT (I) to the
RIGHT REAR LEG (G). Tighten three HIDDEN CAMS.
å
Fasten the LONG FRONT SKIRT (I) to the RIGHT FRONT
LEG (E). Tighten one HIDDEN CAM.
å
Fasten the BOTTOM (C) to the SKIRTS (I and J). Use four
BLACK 9/16" LARGE HEAD SCREWS (1S) through the
METAL BRACKETS and into the BOTTOM.
å
Push a CAM COVER (13P)
onto each HIDDEN CAM
on the SKIRTS (I and J).
417771 www.sauder.com/servicesPage 10
E
G
A
C
I
J
I
J
D
12
BLACK 9/16" LARGE HEAD SCREW
(4 used in this step)
1S
Surface
with holes
Long edge
(8 used)
To cover the HIDDEN
CAMS on the SKIRTS.
13P
To Next Page
