Step 5
Page 7www.sauder.com423408
å
NOTE: Be sure the BRACE (D) surface without HIDDEN CAMS is positioned
as shown.
å

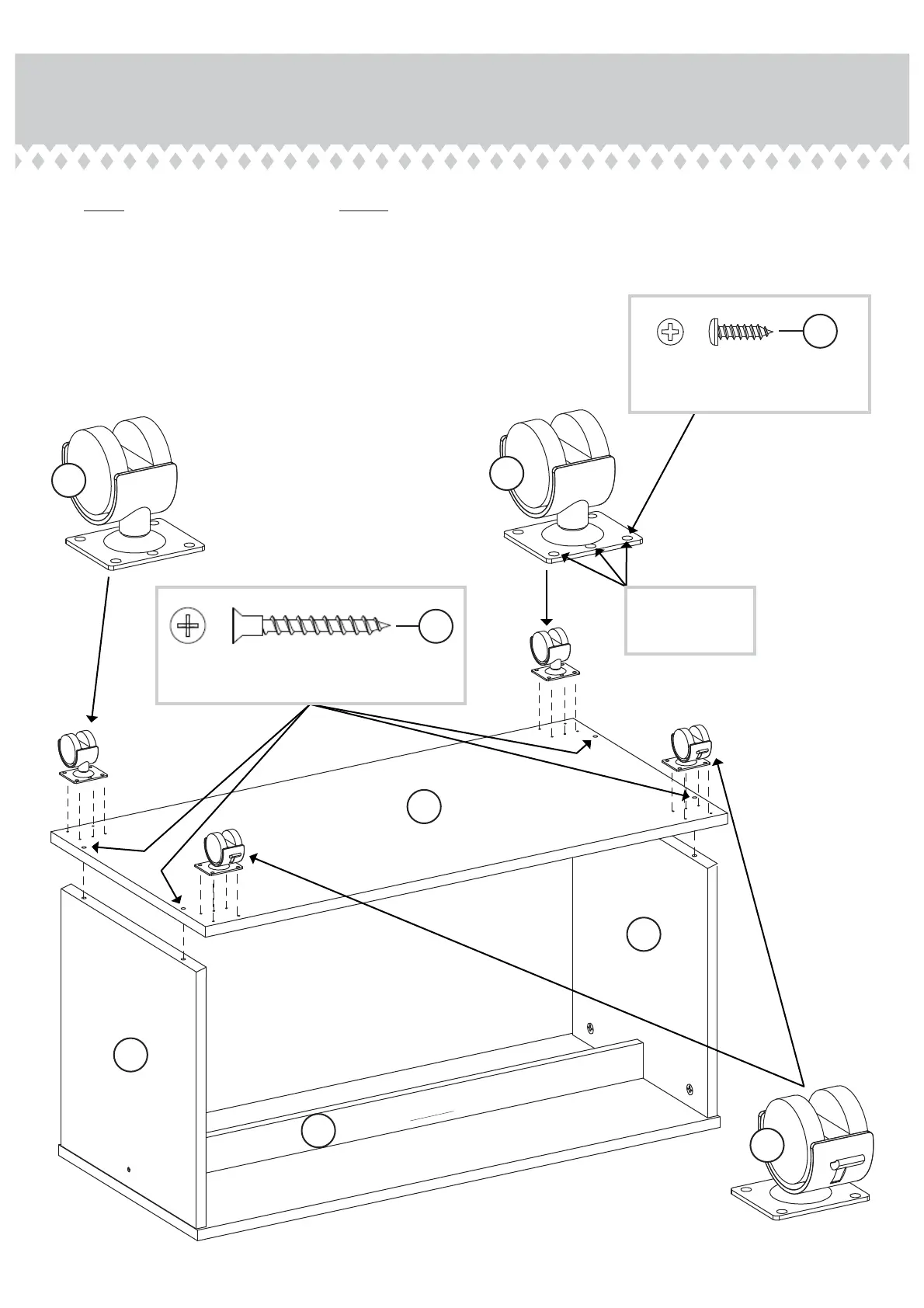

Fasten the BOTTOM (C) to the ENDS (A). Use four SILVER 1-1/2" FLAT HEAD
SCREWS (9).
å
Fasten two CASTERS (4) to the BOTTOM (C) as shown. Use ten SILVER 7/16”
PAN HEAD SCREWS (10).
å
Fasten two LOCKING CASTERS (5) to the BOTTOM (C). Use ten SILVER 7/16”
PAN HEAD SCREWS (10).
C
A
A
Unfi nished surface
5
4
All edges with
three holes should
be facing in.
4
D
Surface without HIDDEN CAMS
SILVER 7/16" PAN HEAD SCREW
(20 used for the CASTERS)
10
SILVER 1-1/2" FLAT HEAD SCREW
(4 used for the BOTTOM)
9
