Sauder Bookcase 414726 - Page 11

å

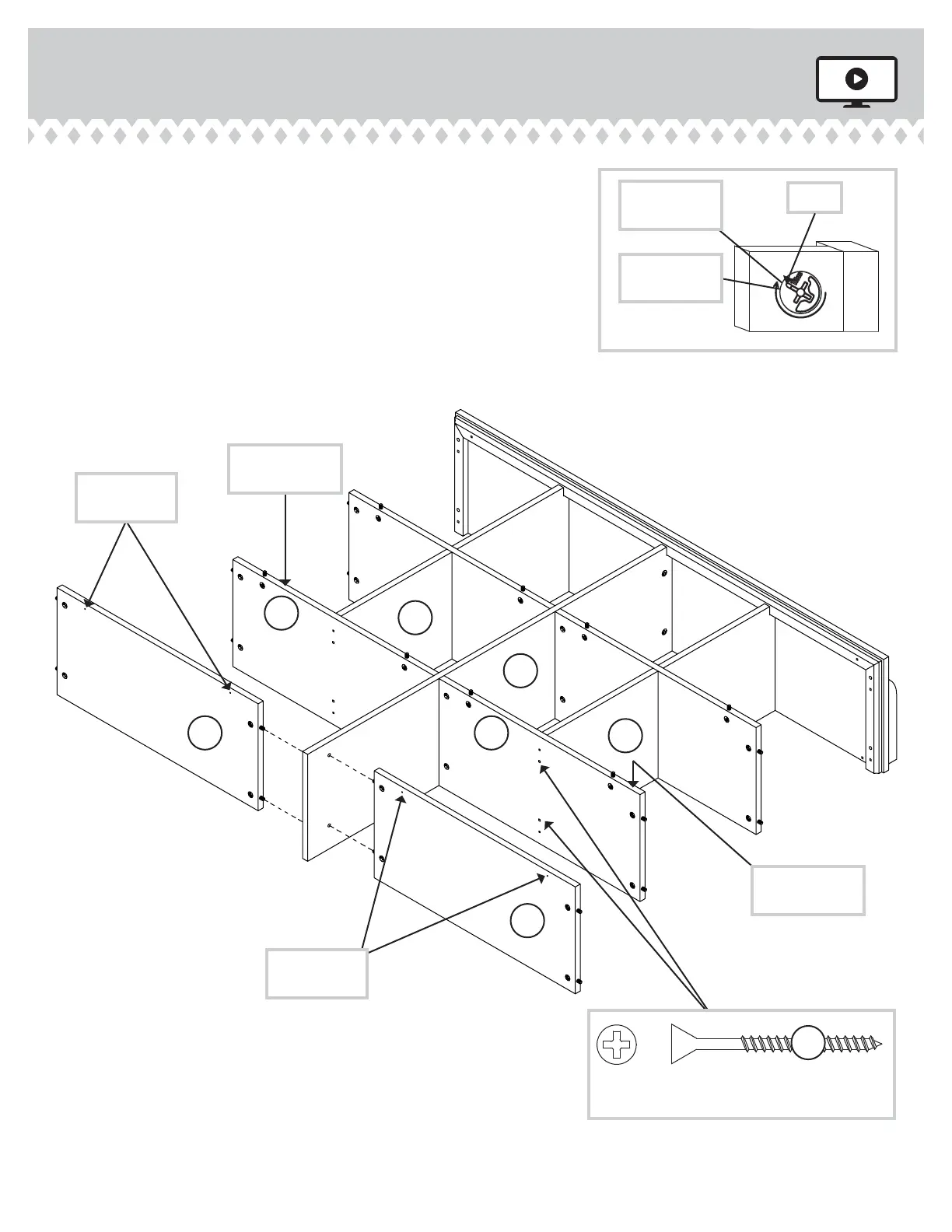

Fasten the remaining two SHELVES (H) to the
UPRIGHT (C). Tighten four HIDDEN CAMS.
å
Fasten the SHELVES (H) to the LOWER UPRIGHTS (E).
Use four BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å
Fasten the BOTTOMS (G) to the UPRIGHT (C). Tighten
four HIDDEN CAMS.
Step 7
414726www.sauder.com/services
Page 11
H
H
C
G
G
E
E
Arrow
Minimum
190 degrees
Maximum
210 degrees
BLACK 1-7/8" FLAT HEAD SCREW
(4 used in this step)
2S
Long edge with
HIDDEN CAMS
Long edge with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
These holes
must be here.
These holes
must be here.
