Sauder Bookcase 414726 - Page 10

Step 6
å

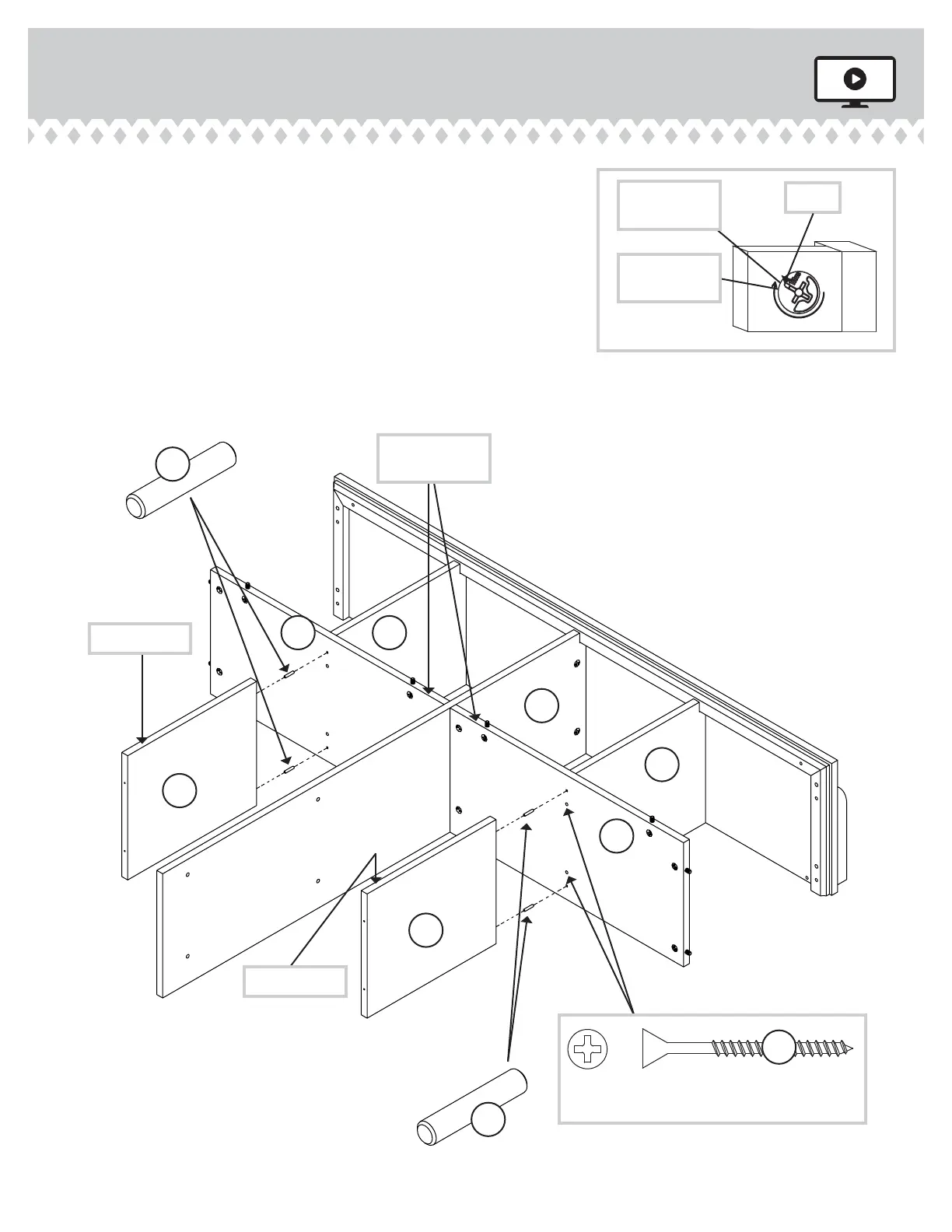

Fasten two SHELVES (H) to the UPRIGHT (C). Tighten four
HIDDEN CAMS.
å
Fasten the SHELVES (H) to the UPPER UPRIGHTS (D). Use
four BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å
Insert four METAL PINS (1R) into the LOWER UPRIGHTS (E).
å
Insert the METAL PINS (1R) in the end of the LOWER
UPRIGHTS (E) into the holes in the SHELVES (H).
414726 www.sauder.com/servicesPage 10
D
D
C
H
H
E
E
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Finished edge
Finished edge
1R
1R
Long edge with
HIDDEN CAMS
BLACK 1-7/8" FLAT HEAD SCREW
(4 used in this step)
2S
Arrow
Minimum
190 degrees
Maximum
210 degrees
