Sauder Carson Forge 412920 - Page 11

å

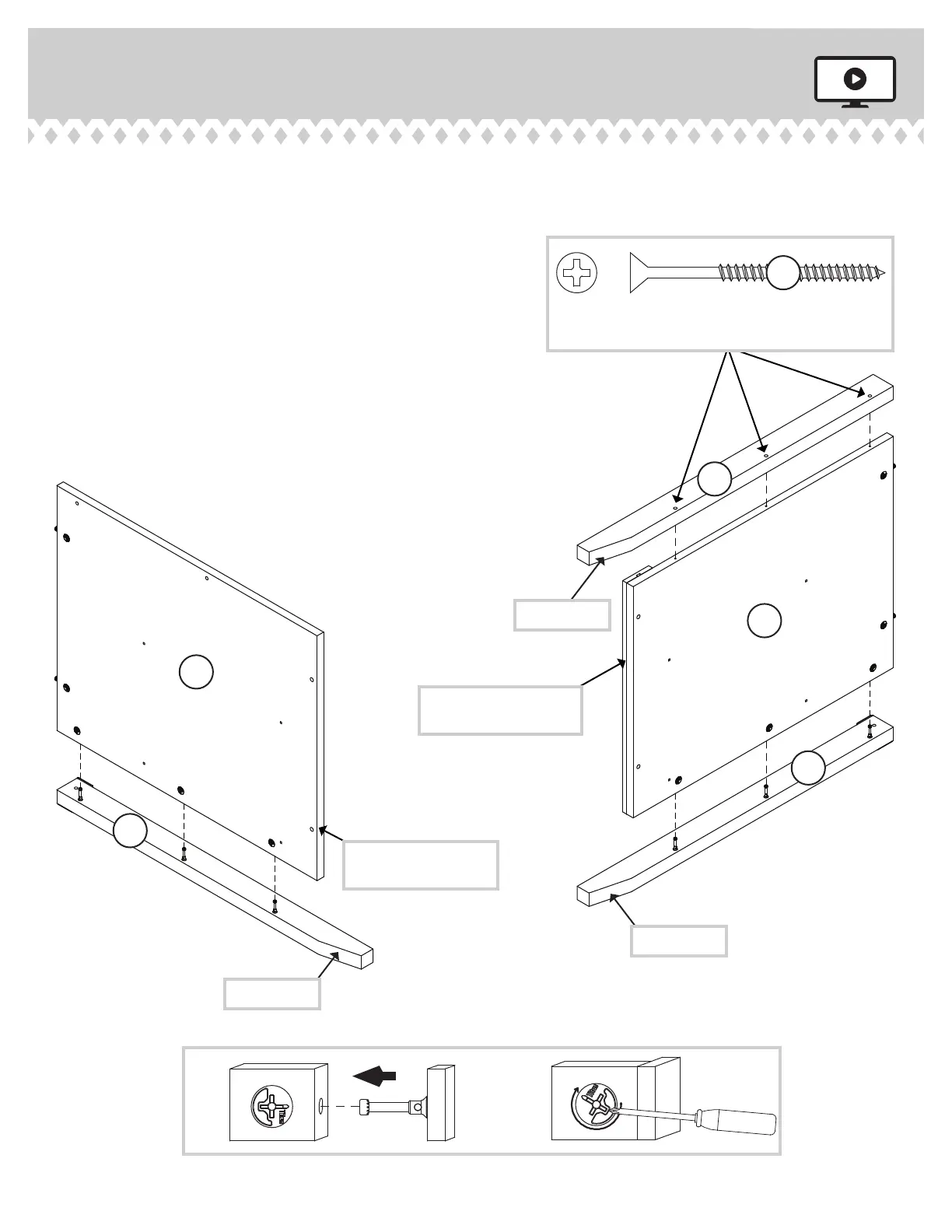

Fasten the END (A) to the RIGHT FRONT LEG (U) as
shown in the right diagram. Tighten three HIDDEN CAMS.
å
Fasten the RIGHT REAR LEG (W) to the RIGHT END (A).
Use three BLACK 2-1/4" FLAT HEAD SCREWS (26S).
å
Fasten the UPRIGHT (D) to the CENTER LEG (Y) as shown
in the left diagram. Tighten three HIDDEN CAMS.
Step 6
Page 11
U
A
Angled edge
Surface with
HIDDEN CAMS
W
Angled edge
The LEGS will overhang
this edge of the END.
D
Y
Surface with
HIDDEN CAMS
Angled edge
The LEG will overhang
this edge of the END.
BLACK 2-1/4" FLAT HEAD SCREW
(3 used in this step)
26S
