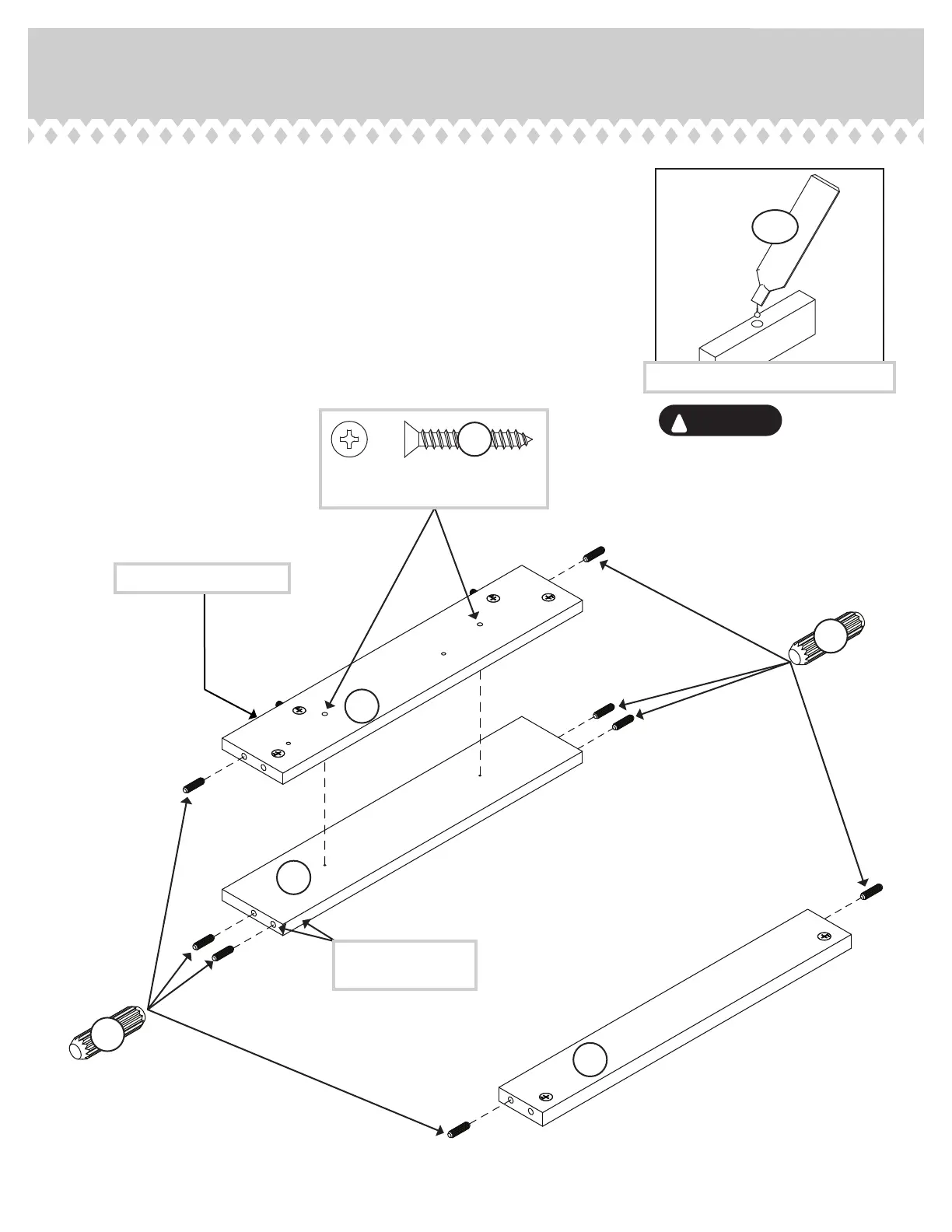

Step 7
å
First, fi ll the holes in one edge of the UPPER LEFT END (B) 1/4
to 1/2 full with GLUE (177M). Then, insert the WOOD
DOWELS (15F) into the holes. Wipe away the excess GLUE.
å
Repeat adding GLUE and inserting the WOOD DOWELS in
the short edges of the LOWER LEFT END (C) and BRACE (I)
as shown below.
å
Now, fasten the BRACE (I) to UPPER LEFT END (B). Use two
SILVER 1-1/8" FLAT HEAD SCREWS (10S).
Surface with
HIDDEN CAMS
I
Surface with
HIDDEN CAMS
Surface with holes
C
B
15F
15F
Edge with HIDDEN CAMS
The holes should be
closer to this edge.
SILVER 1-1/8" FLAT HEAD SCREW
(2 used in this step)
10S
Page 12
Inspect the parts thoroughly before
assembling. Disassembly of glued
parts is extremely di cult.
Caution
!
177M
Fill the holes 1/4 to 1/2 full with GLUE.
To Next Page
