Step 9
å

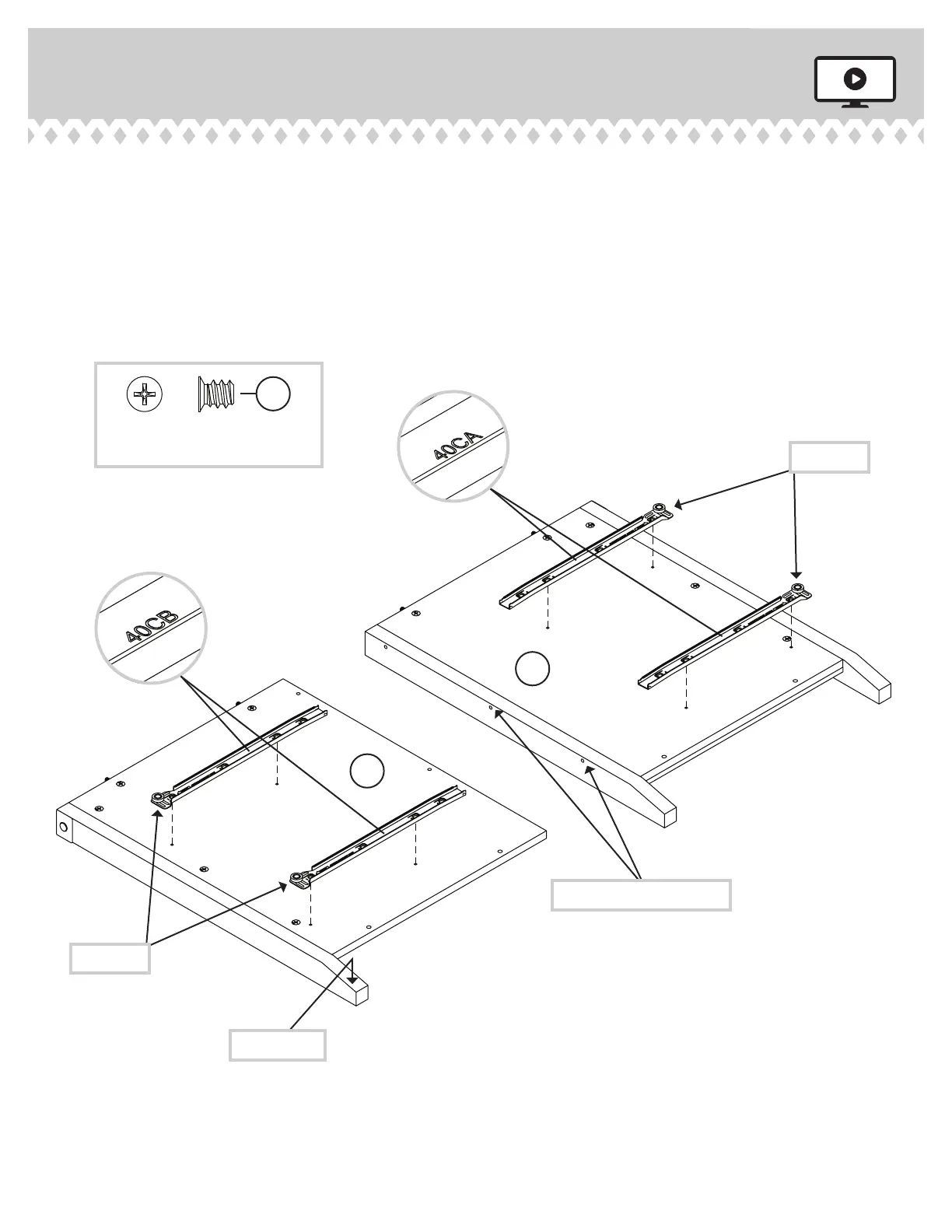

Fasten two CABINET RIGHTS (40CA) to the RIGHT
END (A) and two CABINET LEFTS (40CB) to the
UPRIGHT (D). Use eight GOLD 5/16" FLAT HEAD
SCREWS (3S) through holes #1 and #3.
1
2
3
4
1
2
3
4
A
D
Roller end
Roller end
Angled edge
1
2
3
4
1
2
3
4
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Page 14
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
These holes must be here.
To Next Page
