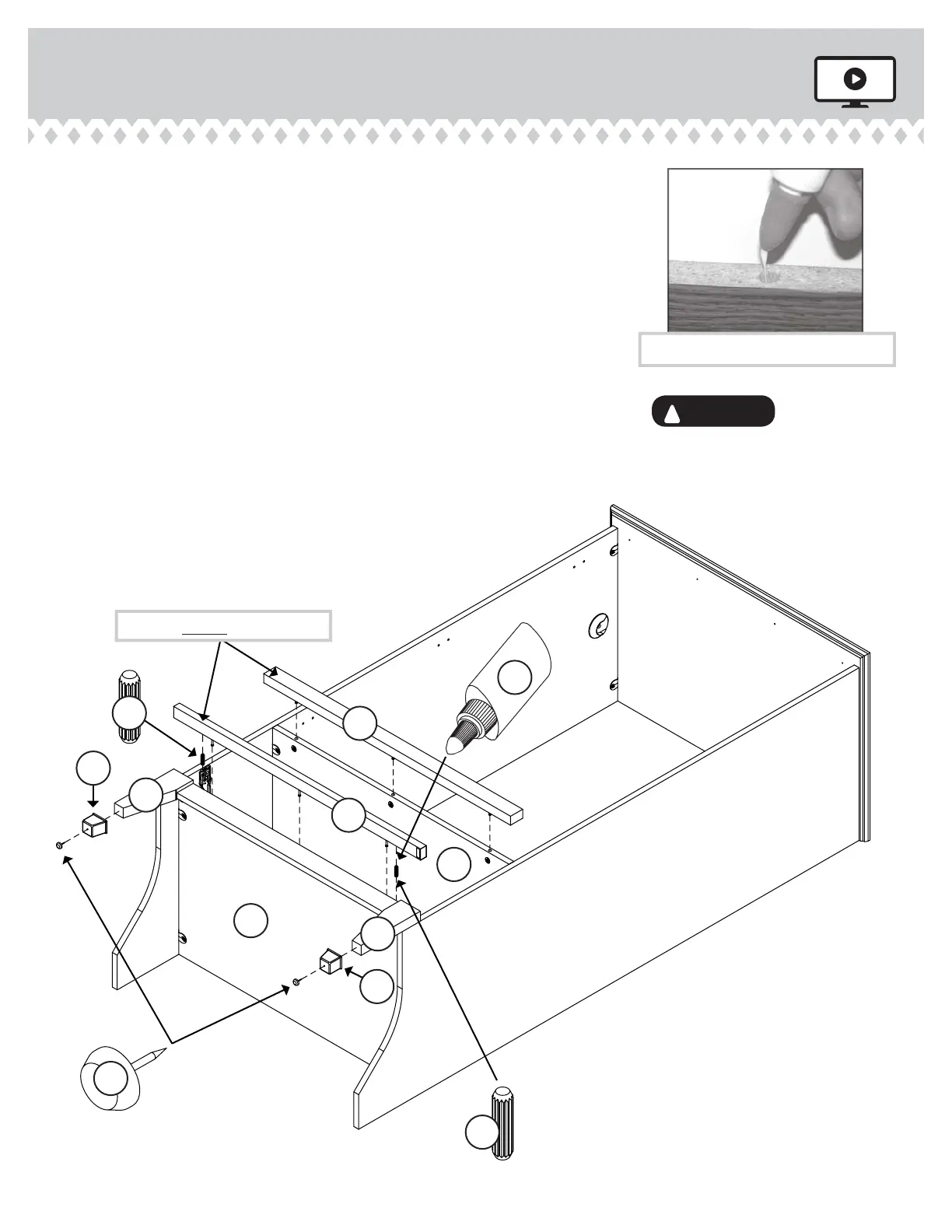

Fasten the SHELF MOLDING (M) to the SHELF (E).
Tihten three HIDDEN CAMS.
å
Fill the holes in the BOTTOM MOLDING (N) 1/4 to 1/2 full
with GLUE (54M). Then, insert a WOOD DOWEL (15F)
into these holes. Wipe away the excess GLUE.
å
Fill the two outer holes in the BOTTOM (D) 1/4 to 1/2 full
with GLUE (54M).
å
Insert the WOOD DOWELS (15F) in the BOTTOM
MOLDING (N) into the holes in the BOTTOM (D). Wipe
away the excess GLUE.
å
Fasten the BOTTOM MOLDING (N) to the BOTTOM (D).
Tihten three HIDDEN CAMS.
å
Push two FOOT CAPS (10E) onto the FEET (I and J). With
a hammer, tap two TACK GLIDES (12E) throuh the holes
of the FOOT CAPS (10E).
Step 10
Fill the holes 1/4 to 1/2 full with GLUE.
Inspect the parts thorouhly before
assemblin. Disassembly of lued parts
is extremely di cult.
Caution
!
15F
15F
E
I
J
M
N
D
10E
10E
12E
Surfaces without CAM SCREWS
54M
415107www.sauder.com/services
