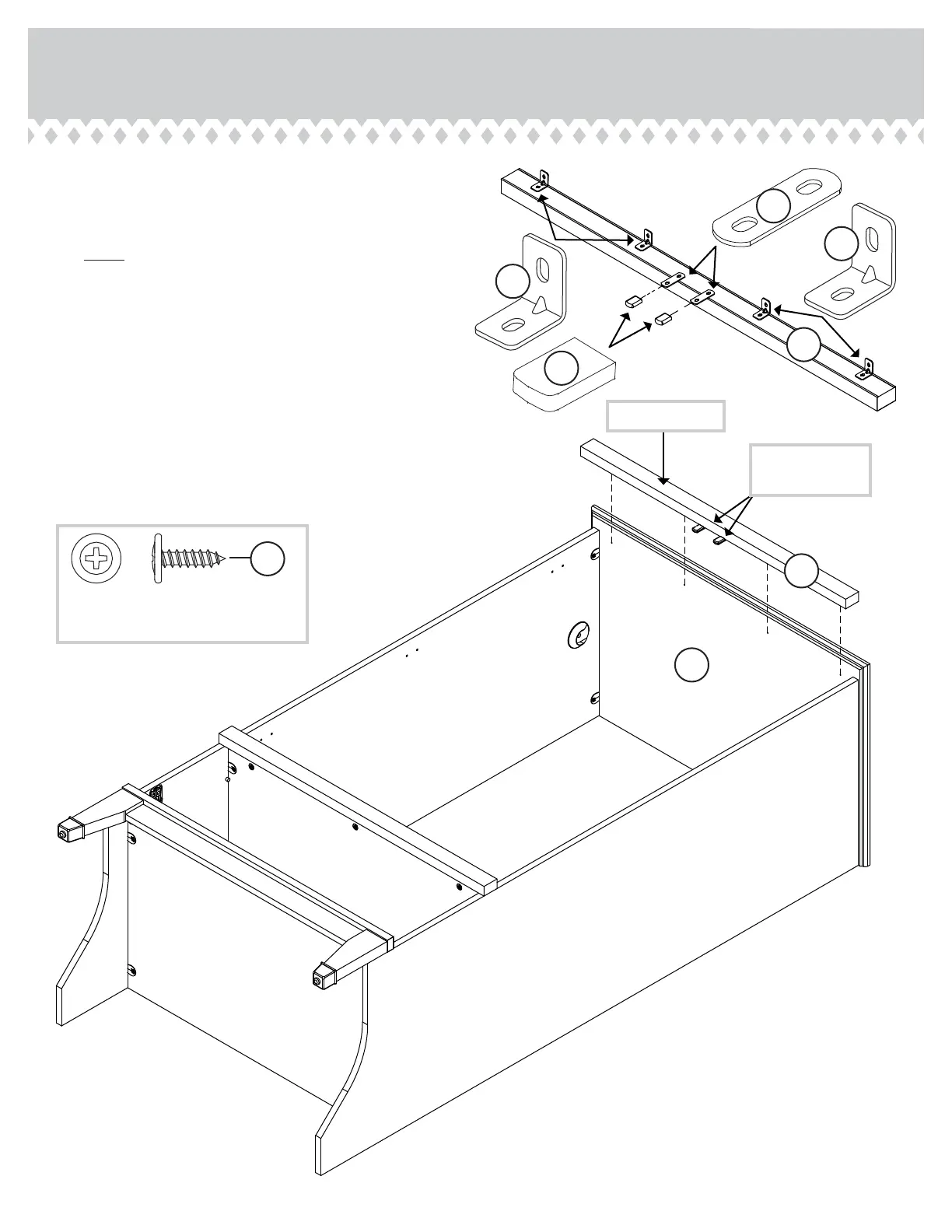

Fasten four METAL BRACKETS (4G) to the TOP
MOLDING (K). Use four BLACK 9/16" LARGE
HEAD SCREWS (1S).
å
NOTE: Be sure the BRACKETS are even with the ede of
the TOP MOLDING (K).
å
Fasten two TIE PLATES (3G) to the TOP MOLDING (K).
Use two BLACK 9/16" LARGE HEAD SCREWS (1S).
å
Push two LARGE RUBBER SLEEVES (59G) onto the
TIE PLATES (3G).
å
Fasten the TOP MOLDING (K) to the TOP (C).
Use four BLACK 9/16" LARGE HEAD SCREWS (1S)
throuh the METAL BRACKETS on the TOP
MOLDING and into the TOP.
Step 11
K
59G
C
K
Finished surface
The TIE PLATES
should be here.
BLACK 9/16" LARGE HEAD SCREW
(10 used in this step)
1S
415107 www.sauder.com/servicesPae 16
