Sauder Carson Forge Series - Step 3: Attach Rails with Dowels and Cams

å

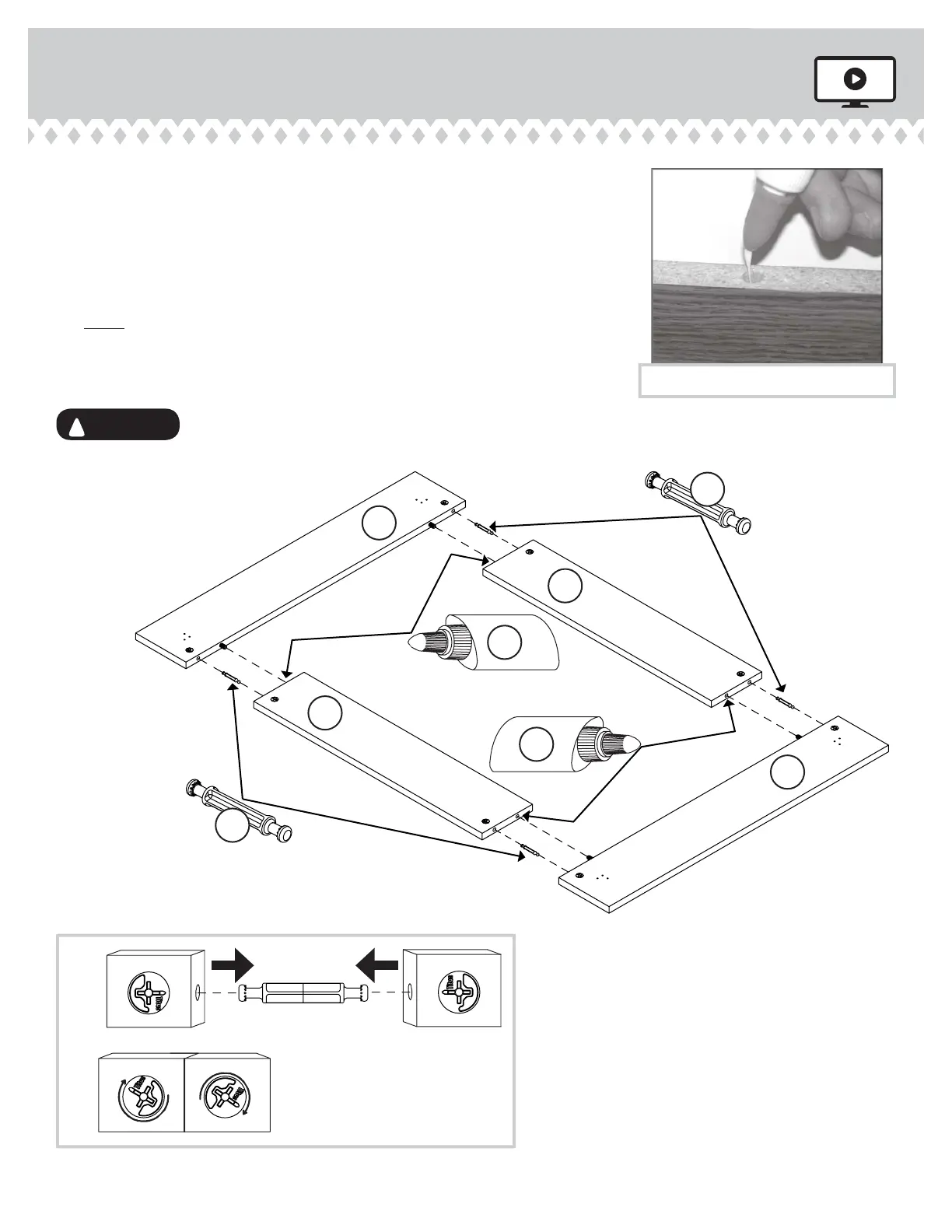

Insert one end of four DOUBLE DOWELS (22F) into the HIDDEN
CAM holes in the SIDE RAILS (C). Tighten four HIDDEN CAMS.
å
Fill the holes in the SIDE RAILS (C) 1/4 to 1/2 full with GLUE (8M).
å
Fasten the TOP/BOTTOM RAILS (B) to the SIDE RAILS (C). Tighten
four HIDDEN CAMS.
å
NOTE: Be sure the WOOD DOWELS in the TOP/BOTTOM RAILS (B)
insert into the SIDE RAILS (C). Wipe away the excess GLUE.
Step 3
415556 www.sauder.com/servicesPage 6
8M
B
C
B
C
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
Fill the holes 1/4 to 1/2 full with GLUE.
Inspect the parts thoroughly before
assembling. Disassembly of glued
parts is extremely di cult.
Caution
!
22F
8M
22F
Surface
with
HIDDEN
CAMS
Surface
with
HIDDEN
CAMS
