Sauder Transit 414417 - Step 11: Attach Bottom and Shelf to Return Frame; Fasten Bottom to Return Frame; Install Lower Pivot Hinge and Shelf; Install Upper Pivot Hinge and Shelf

å

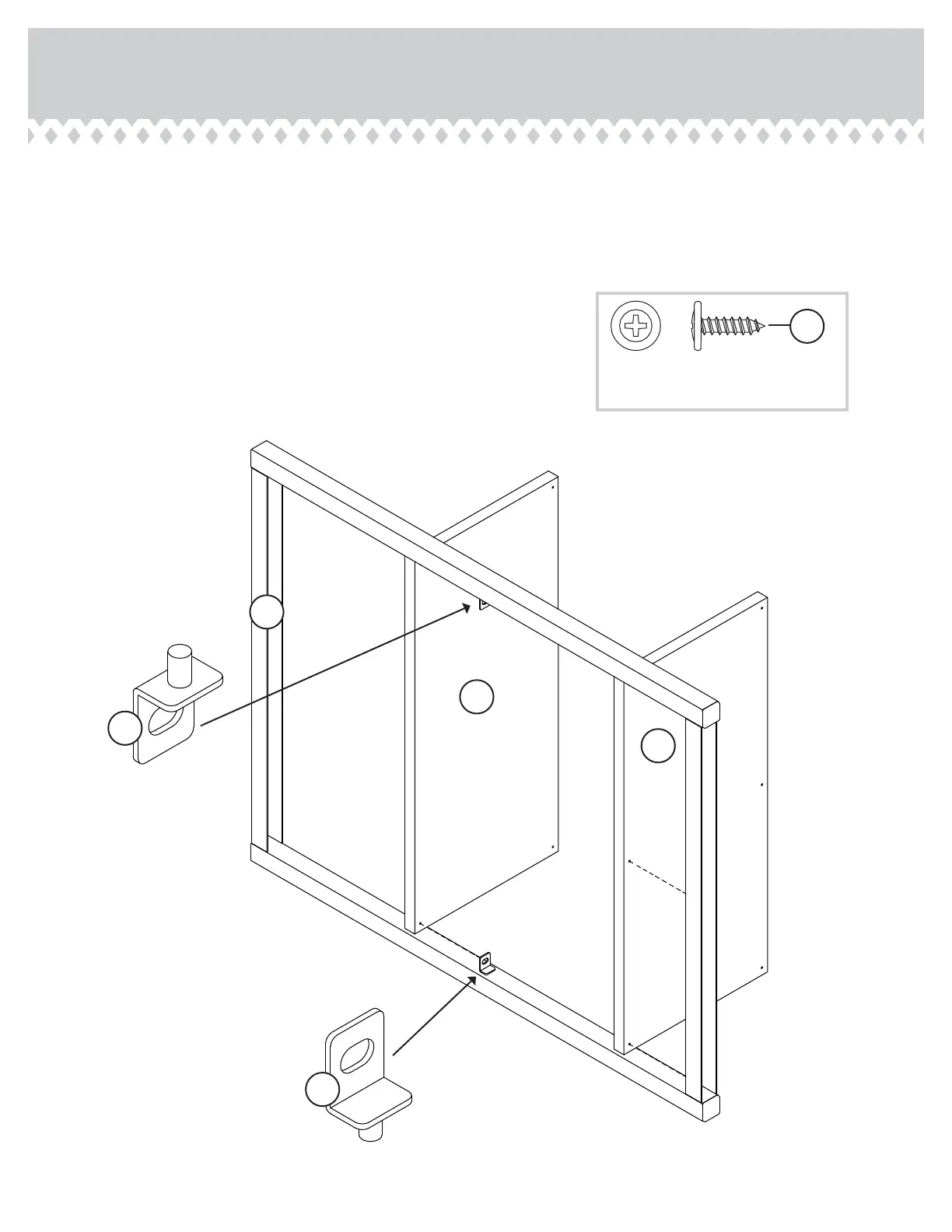

Fasten the BOTTOM (K) to a RETURN FRAME (W). Use three
BLACK 9/16" LARGE HEAD SCREWS (1S).
å
1st - Insert a PIVOT HINGE (15H) into the lower center hole in
the RETURN FRAME (W). Fasten the SHELF (J) to the PIVOT
HINGE in the RETURN FRAME. Use a BLACK 9/16" LARGE
HEAD SCREW (1S).
å
2nd - Then, insert a PIVOT HINGE (15H) into the upper
center hole in the RETURN FRAME (W). Fasten the SHELF (J)
to the PIVOT HINGE in the RETURN FRAME. Use a BLACK
9/16" LARGE HEAD SCREW (1S).
Step 11
414417www.sauder.com/services
Page 15
K
J
W
Surface
with
holes
Surface
with
holes
15H
15H
1
st
2
nd
BLACK 9/16" LARGE HEAD SCREW
(5 used in this step)
1S
