Sauer Danfoss SPV2 Series - Disassembly and Assembly

16
DKMH.PS.315.B1.02 520L0535
Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions
Disassembly and Assembly

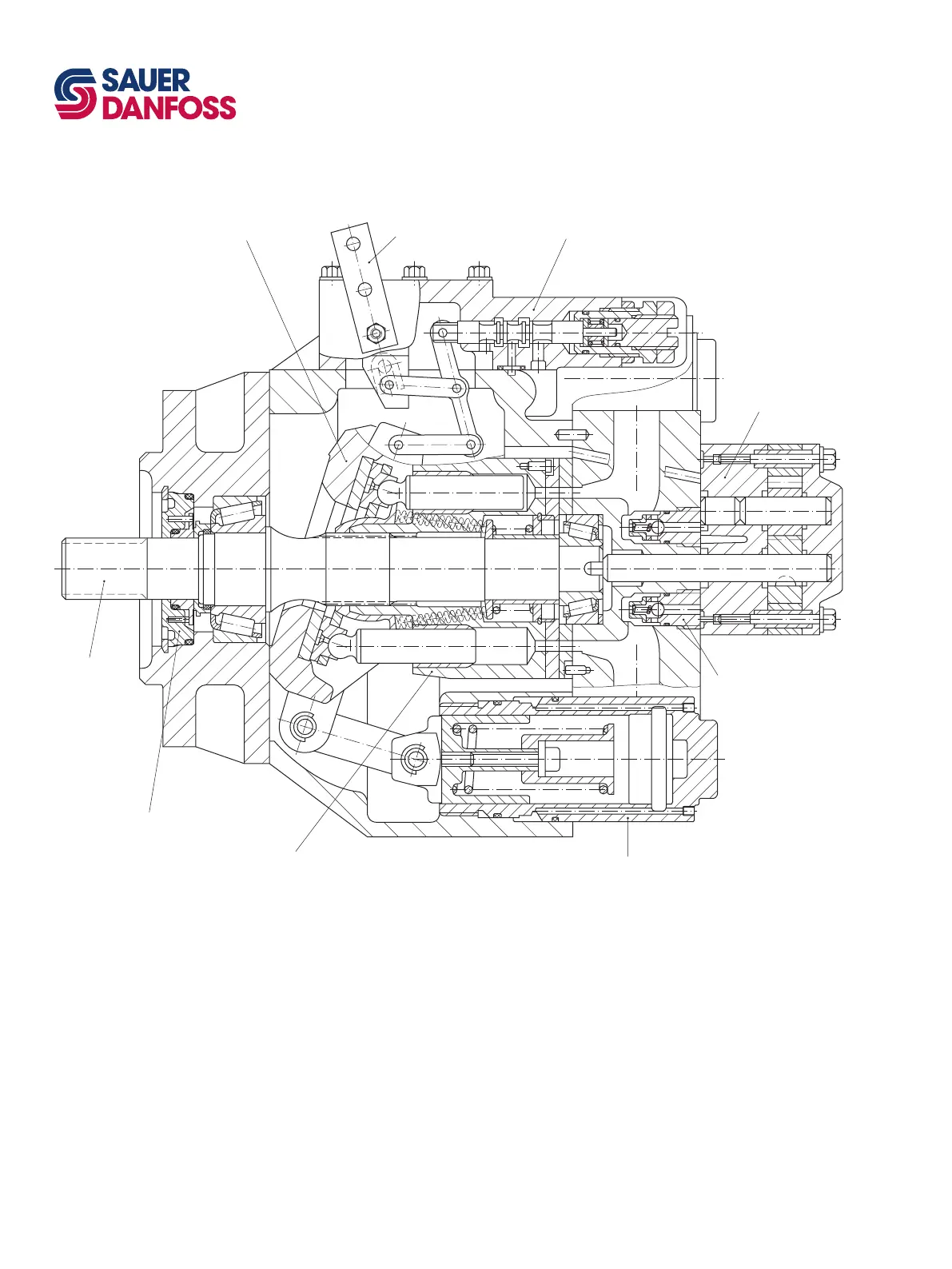

SECTIONAL VIEW
Input shaft
Swash plate Control handle Servo valve (control valve)
Charge pump
Charge check valve
Servo cylinder
Cylinder block assembly
Shaft seal
P005 121E
Axial piston variable displacement pump
