Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions
Ø10 Pin
[Ø0.394]
70
[2.756]
5x45˚
20
[0.787]
10
[0.394]
ca. 5 mm Chamfer
[ca. 0.2 in]
Ø130
[Ø
5
.118
]
165
[6.496]
250
[9.843]
250
[9.843]
P005 112E
The areas of repair indicated may be serviced, following the procedures in this manual,
without invalidating the warranty.

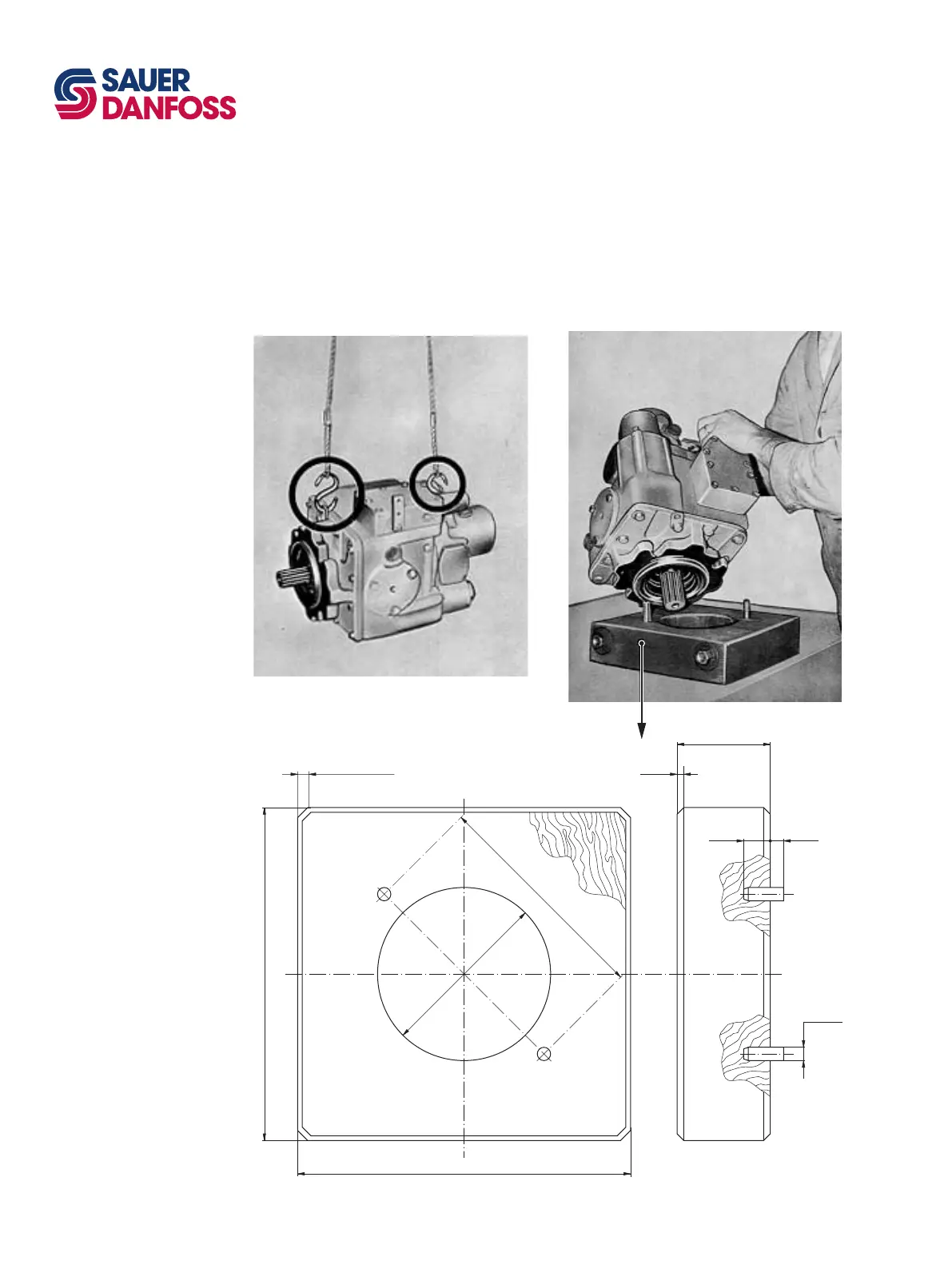

Preparation for assembly
When using a lifting device, the hooks at the end of the slings, are to be fastened in the
rings tted at the front and rear of the motor body. It is recommended that an mounting
block should be used in order to facilitate a professional operation.
Mounting block
Disassembly and Assembly
F000 084
MINOR REPAIRS
F000 085
