Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions
Disassembly and Assembly
MAJOR REPAIRS
(continued)

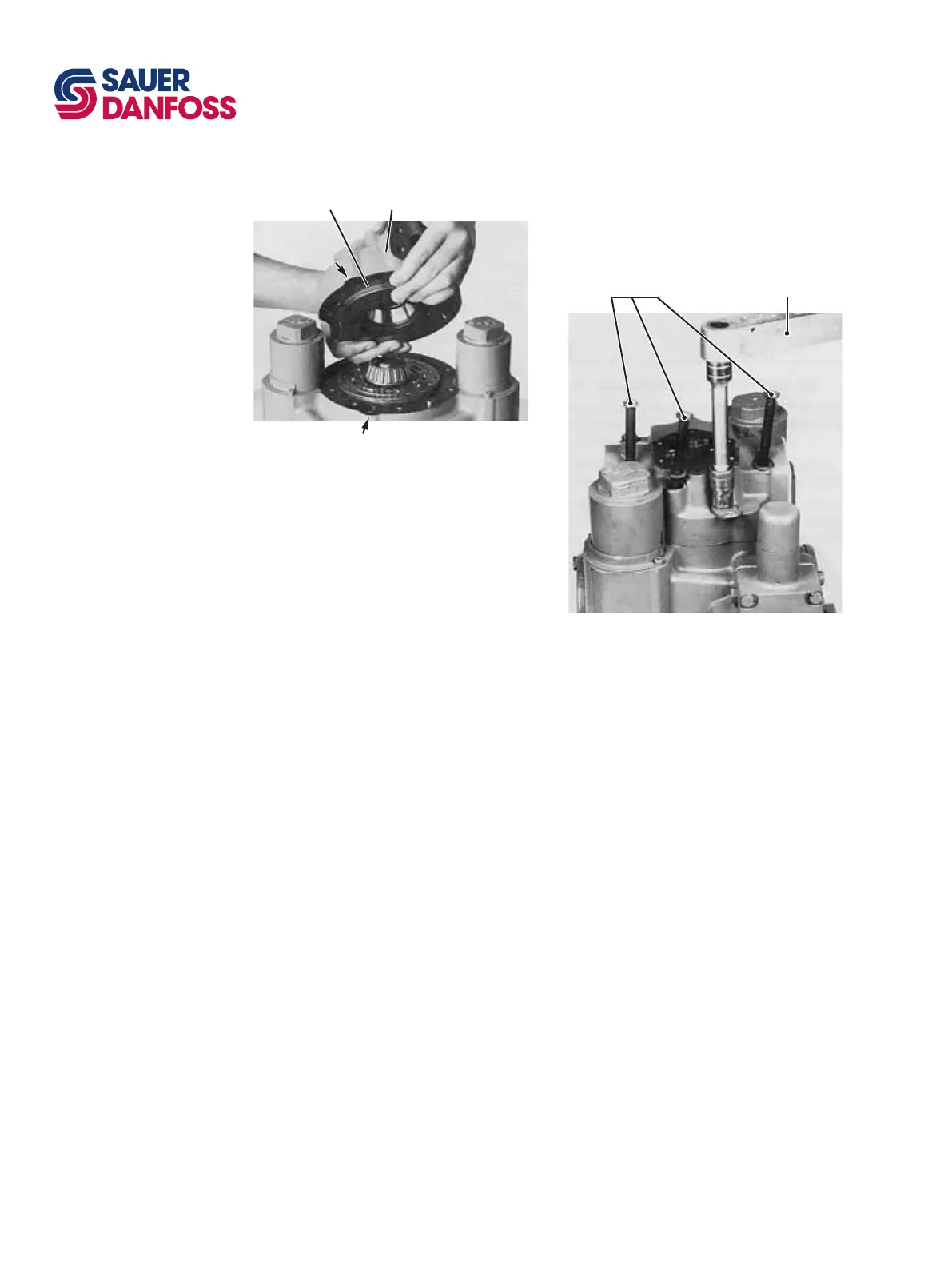

The valve plate must be positioned with
the slot in the valve plate on the dowel
pin of the end cap housing.
The end cap must now be carefully tigh-
tened down with two opposing xing
screws, ensuring that the two dowel pins
t into the holes in the end cap. The
remaining screws can then be inserted
and tightened up.
Install the remaining shaft seal and
charge pump as outlined in the minor
repair procedure.
Mount the end cap and the valve plate,
ensuring that the valve plate is held in
such a way that it cannot be dropped
during assembly.
The end cap must be turned so that the
two dowel pins of the pump housing are
positioned over the locating holes.
Torque spanner
7, 8, 9 with extension piece
F000 065
F000 103
15 10
