Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions

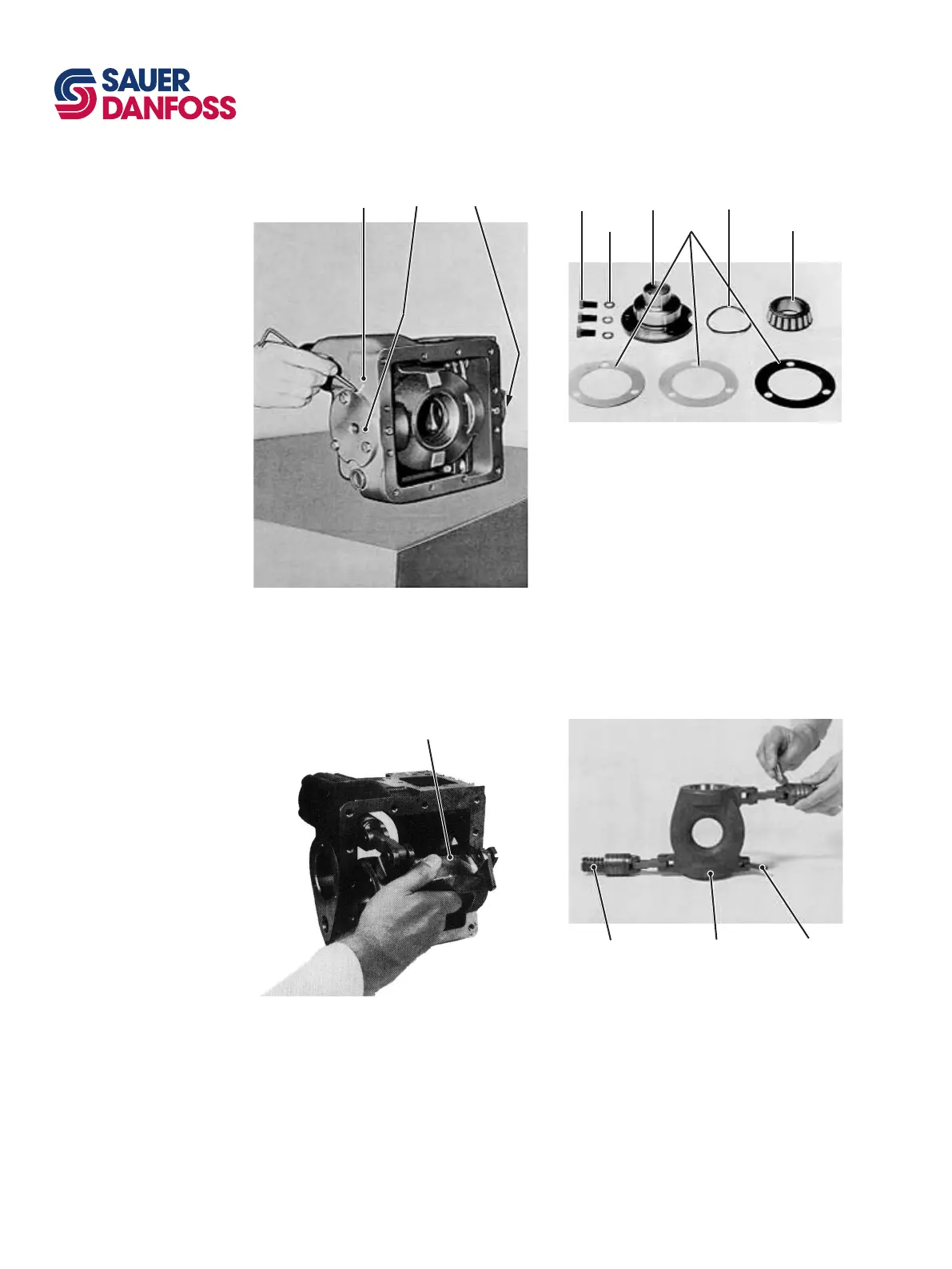

Mark the trunnion to facilitate correct
re-assembly later, and loosen the three
screws on each trunnion. Than remove
the trunnion.
Once the trunnions have been removed,
the swash plate can be removed
complete with servo piston.
Disassembly and Assembly
MAJOR REPAIRS
(continued)
F000 114
Take care that the plastic shims are kept
together with the respective trunnions.
Individual parts of the servo piston can if
necessary, be replaced.
F000 245
F000 116
135
F000 113
35, 36, 37, 38 135 46, 47, 48
62 67 67
65 67 69 70
66 68 Cone bearing
