Saunders M-VUE - Wiring

23
www.cranecpe.com
Crane ChemPharma & Energy

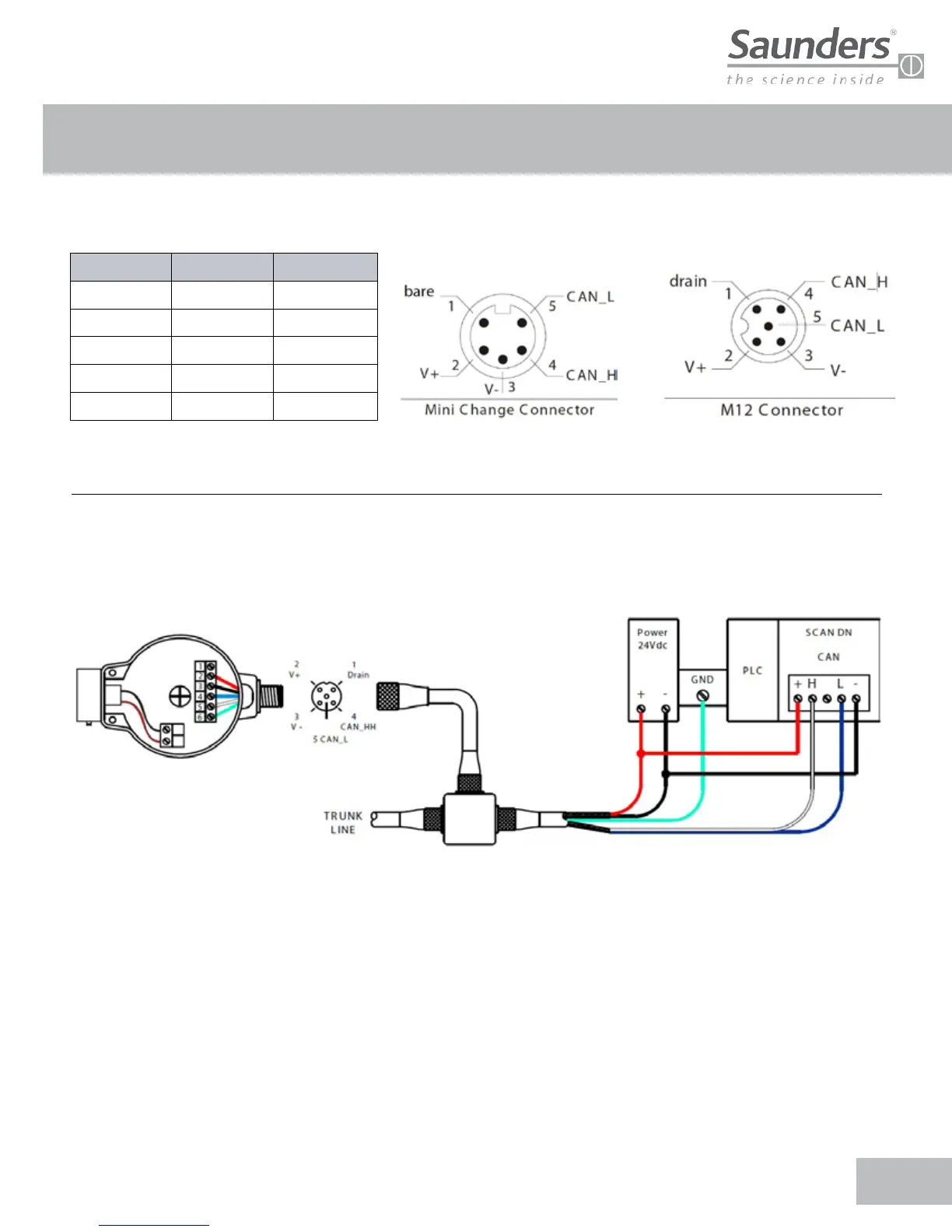

DeviceNet Wiring
Pin Wire Colour Designation
1 Bare/Drain GND
2 Red 24 V dc (+)
3 Black 24 V dc (-)
4 White CAN_H
5 Blue CAN_L
Pin Configuration
Wiring Diagram
