Saunders M-VUE - Page 8

8
www.cranecpe.com
Crane ChemPharma & Energy
Basic Installation Guide
PRODUCT TYPE COMMUNICATION TYPE CONNECTION TYPE SOLENOID TYPE OPTIONAL EXHAUST
M-VUE = M-VUE
2E2 = Point to Point V15= M12 5-Pin + SC = No Solenoid +E = Exhaust with 1/8” NPT
ASI 3.1 = ASi v2.0 Profile 70 V1 = M12 4-Pin + BM-V = 1/8” NPT +ES= Exhaust with 1/8” BSP
ASI 3.1A = ASi v2.0 Profile 7H + BM-VS = 1/8” BSP
ASI 3.2 = ASi v2.1
ASI 3.3 = ASi v 3.0
DNC = DeviceNet
VM = 7/8” 5-Pin
V15= M12 5-Pin
EXAMPLE: M-VUE-DNC-VM + BM-V + E
MEANING: M-VUE Sensor with DeviceNet, 7/8” 5 Pin connector, 1/8” NPT Solenoid Valve and 1/8” Exhaust NPT Block
Note: Configurations are dependent upon communication type, network protocol etc. Contact Saunders® for more information

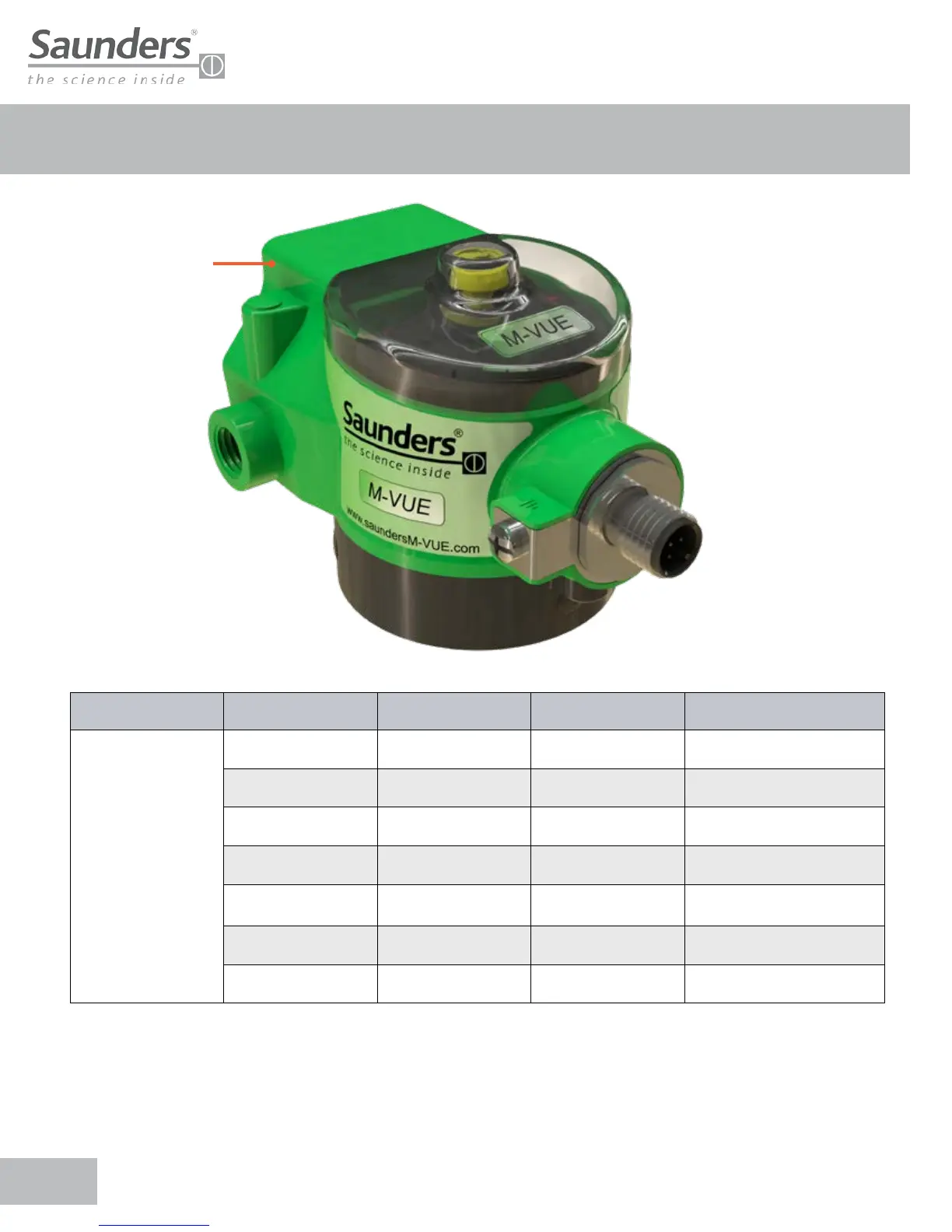

Check that the M-VUE
model number is correct for
the application
