1. DESCRIPTION
Lift Unit
The lift unit is comprised of the components shown in Figure 1 below.
• Platform control panel which has a key switch, an emergency STOP
button, an alarm button and a running light (see Figure 4 on page 7) to
indicate that the unit is in use
• Safety arms
• Pendant control
• Carriage (behind cover)
• Platform access ramps
•Main power switch

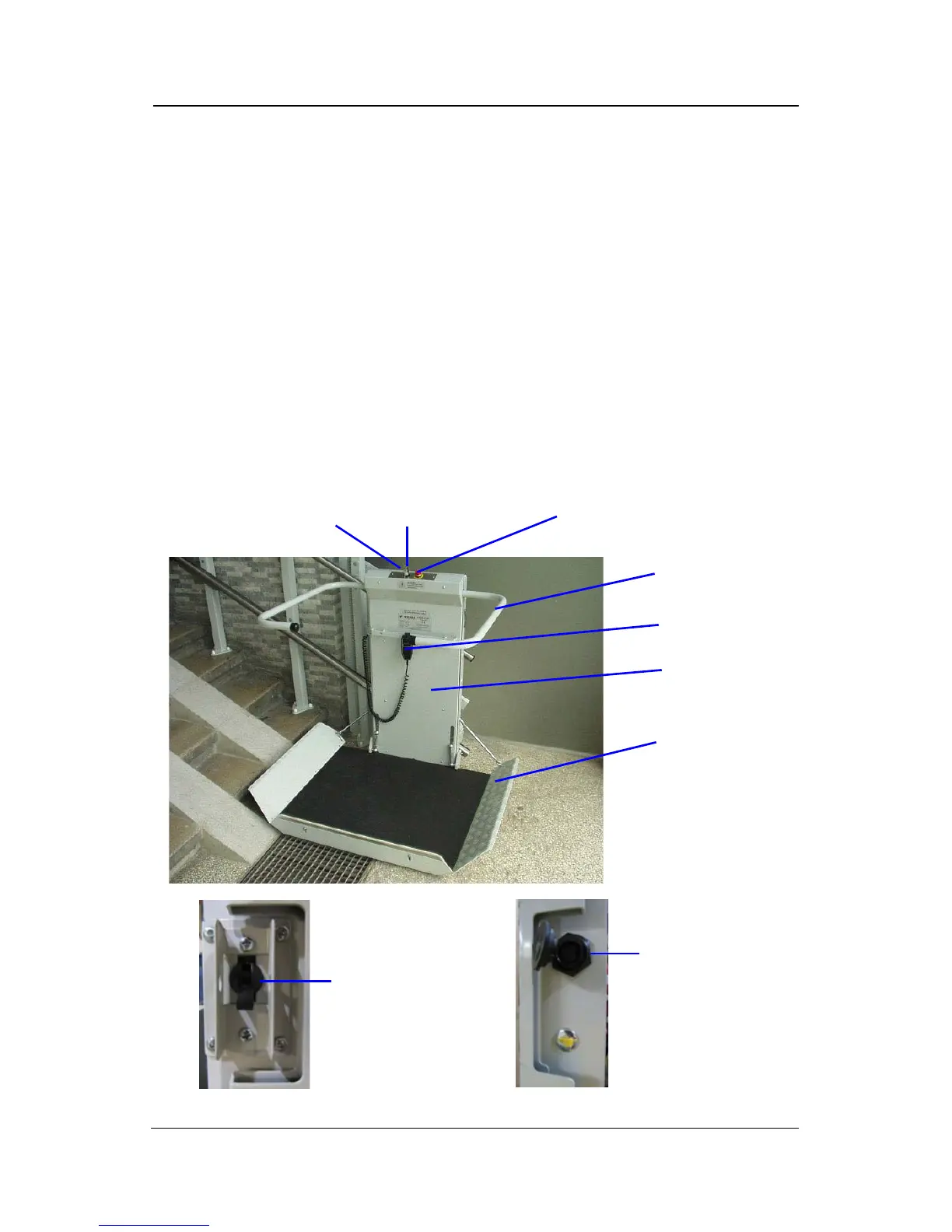

Figure 1
Safety arms
Platform access
Key switch
Emergency STOP button
Pendant control
Carriage
(behind cover)
ramps
Green lamp
Main power switch
Open cap and
plug in pendant
