WARNING
Do not remove the dust shroud because
the blade will be exposed. If you contact the
blade under the table, the blade may retract
toward you and cause a severe injury.

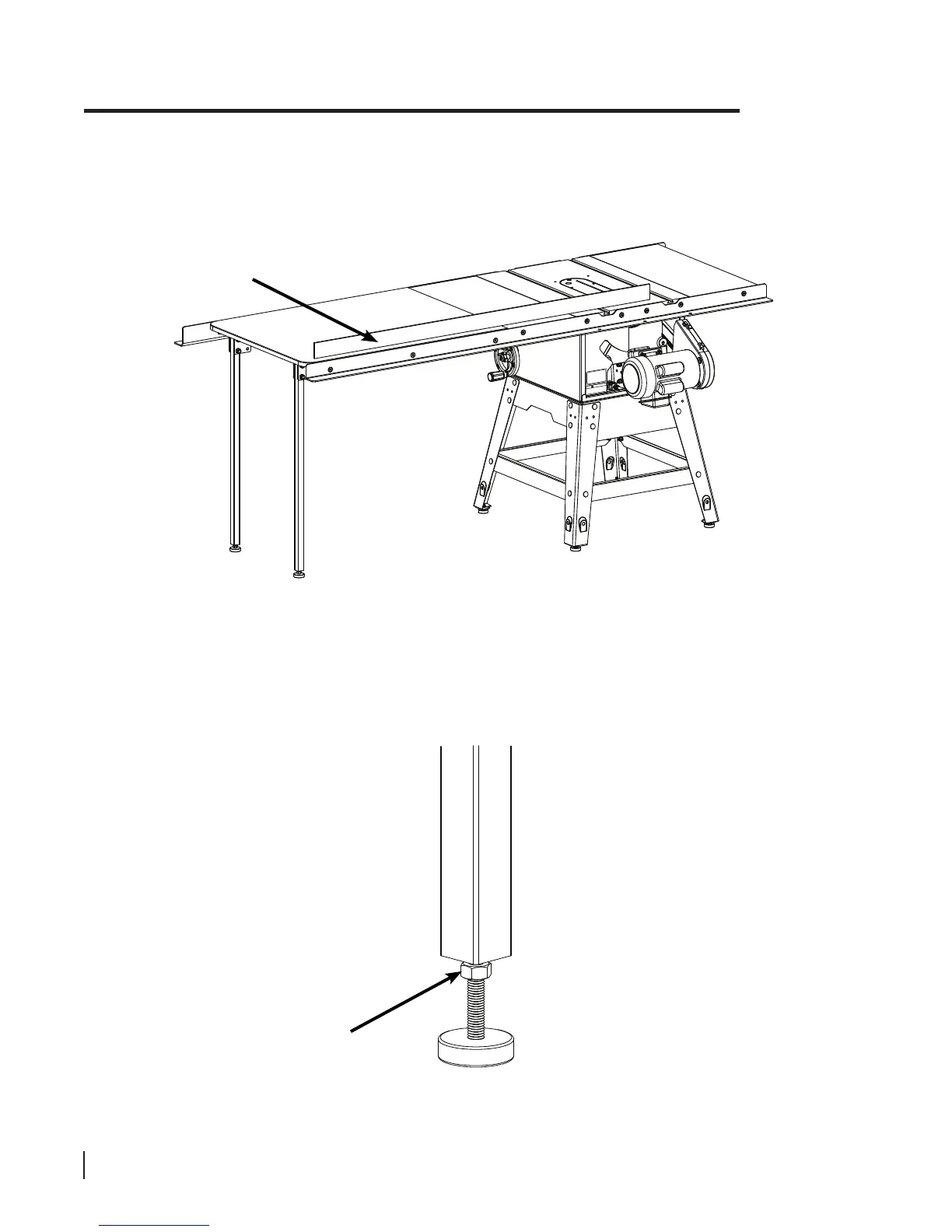

15. Repeat the process described in the previous step to level the rear edge of the extension table to the cast iron
table top (see Fig. 15).
16. Turn the foot on the bottom of each support leg to adjust its position until it is in solid contact with the ground.
Once the foot is in contact with the ground, fully tighten the hex nut against the bottom of the leg using a
13 mm wrench (see Fig. 16).
Fig. 15
Fig. 16
adjust the position of
the foot and tighten
the hex nut
straight-edge
8 SawStop T-Glide Fence System - Professional Series
