SawStop tsa-sa48 - Standard Mounting With Left Wing; Flush Mounting With Left Wing

6
SLIDING CROSSCUT TABLE INSTALLATION
mounting options

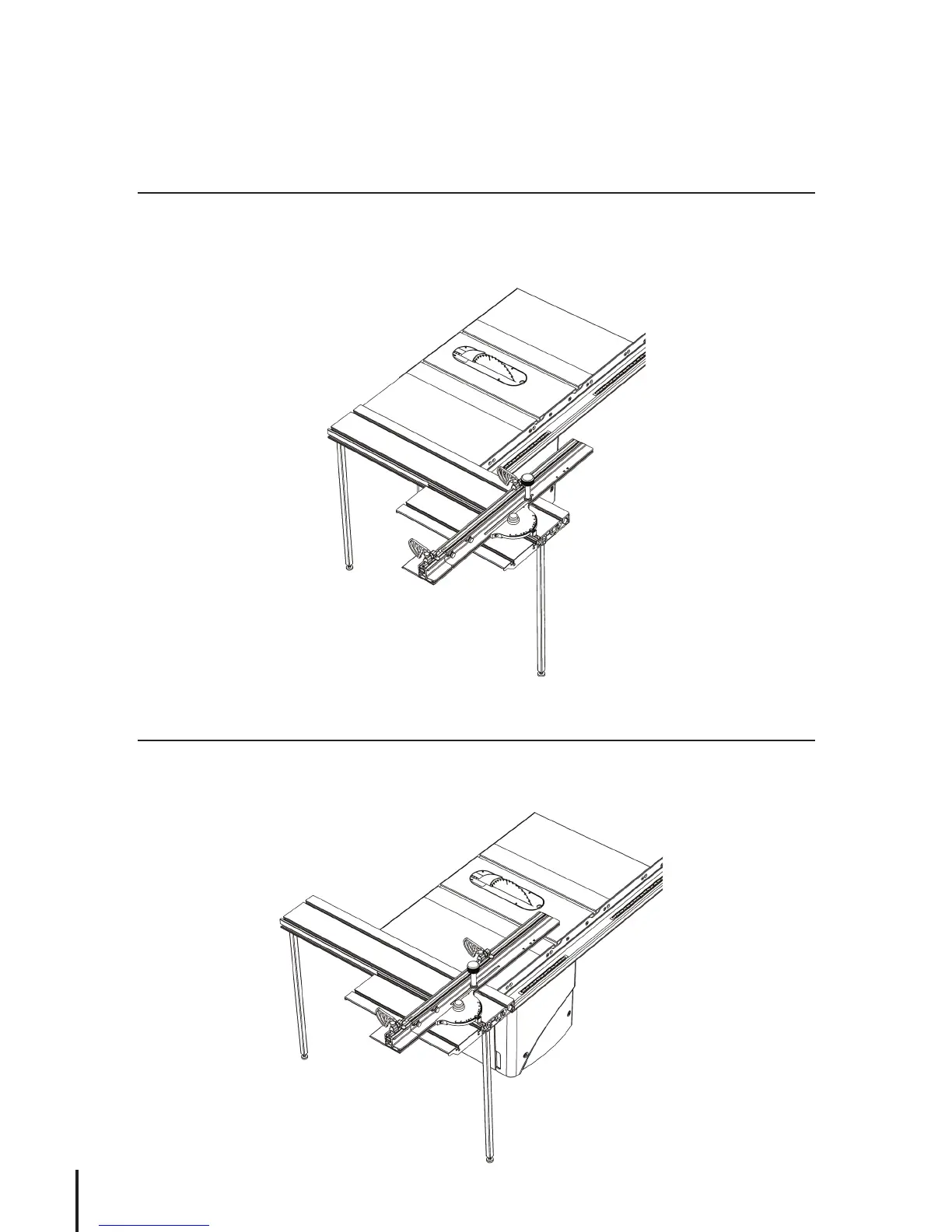

This conguration provides the maximum ripping length while also maintaining the additional
support to the left of the blade provided by the left extension wing.
STANDARD MOUNTING
WITH LEFT WING
Option 3 of 4
Start on Page 7
Option 4 of 4
Start on Page 7
This conguration reduces the front-to-back footprint of the saw and crosscut table while
maintaining the additional support to the left of the blade provided by the left extension wing.
FLUSH MOUNTING
WITH LEFT WING
