10

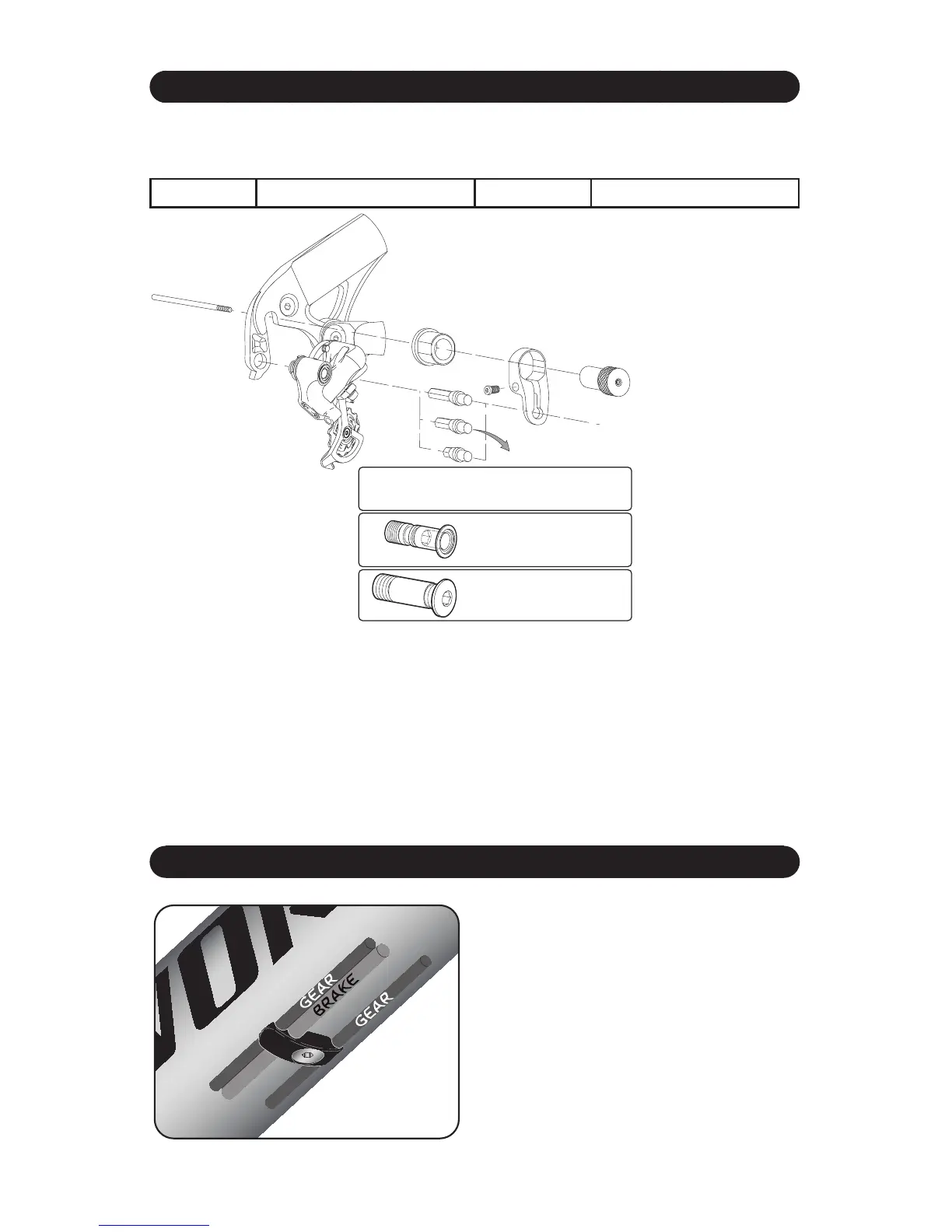

DERAILLEUR GUARD
The Specialized Derailleur guard is available separately through your local Specialized
dealer. The guard works with solid or Q/R axle types and is compatible with all Mountain
bike models using the Rev2 Alloy Mtn Derailleur Hanger.
Guard Part# 9896-4030 Hanger Part# 9895-4021
Short (10mm):
(All Shimano derailleurs without
countersunk hanger bolt)
Medium (25mm):
Shimano XTR / XT / LX
(All Shimano derailleurs with
countersunk hanger bolt)
Long (31mm):
All SRAM derailleurs
All Shimano Shadow derailleurs
GUARD PINS
31
25
10
Q/R Axle
Guard
Spacer
Guard
Q/R Nut
Derailleur Guard Installation (Q/R option):
Install rear derailleur on derailleur hanger.
Place rear wheel in frame and install Q/R, with springs and without Q/R end nut.
Insert appropriate derailleur guard pin in derailleur.
Place guard sleeve in derailleur guard.
Slide derailleur guard and sleeve over guard pin and Q/R.
Install supplied Q/R nut and tighten Q/R.
Torque guard pinch bolt to 80 in-lbf (9 N*m).
DOWN TUBE CABLE GUIDE INSTALLATION
The Specialized Enduros are equipped
with bolt-on down tube cable guides. For
proper housing placement and function,
the hydraulic rear brake housing goes in the
larger middle slot, the gear cables go on the
outside.
NOTE: Only use 4mm gear housing.
Do not overtighten the guide bolts!
