WARNING! Never modify your frame or bicycle in any way. Do not sand, drill, fill, or
remove parts. Do not install incompatible forks or suspension parts. An improperly
modified frame, fork, or component, can cause you to lose control and fall.
CAUTION: Any modification of your frame, fork, or components means that your
bike no longer meets our specifications and therefore voids your warranty.
FORK SETUP INFORMATION
WARNING! The Enduro frames are compatible ONLY with single crown forks that have travel
of 6.7” (170mm) or less. Use of different styled forks or forks with longer travel may result in
catastrophic failure of the frame which may result in serious personal injury or death.
Certain Specialized frames and forks are equipped with tapered head tubes with a 1 1/8”
upper bearing and a 1.5” lower bearing.

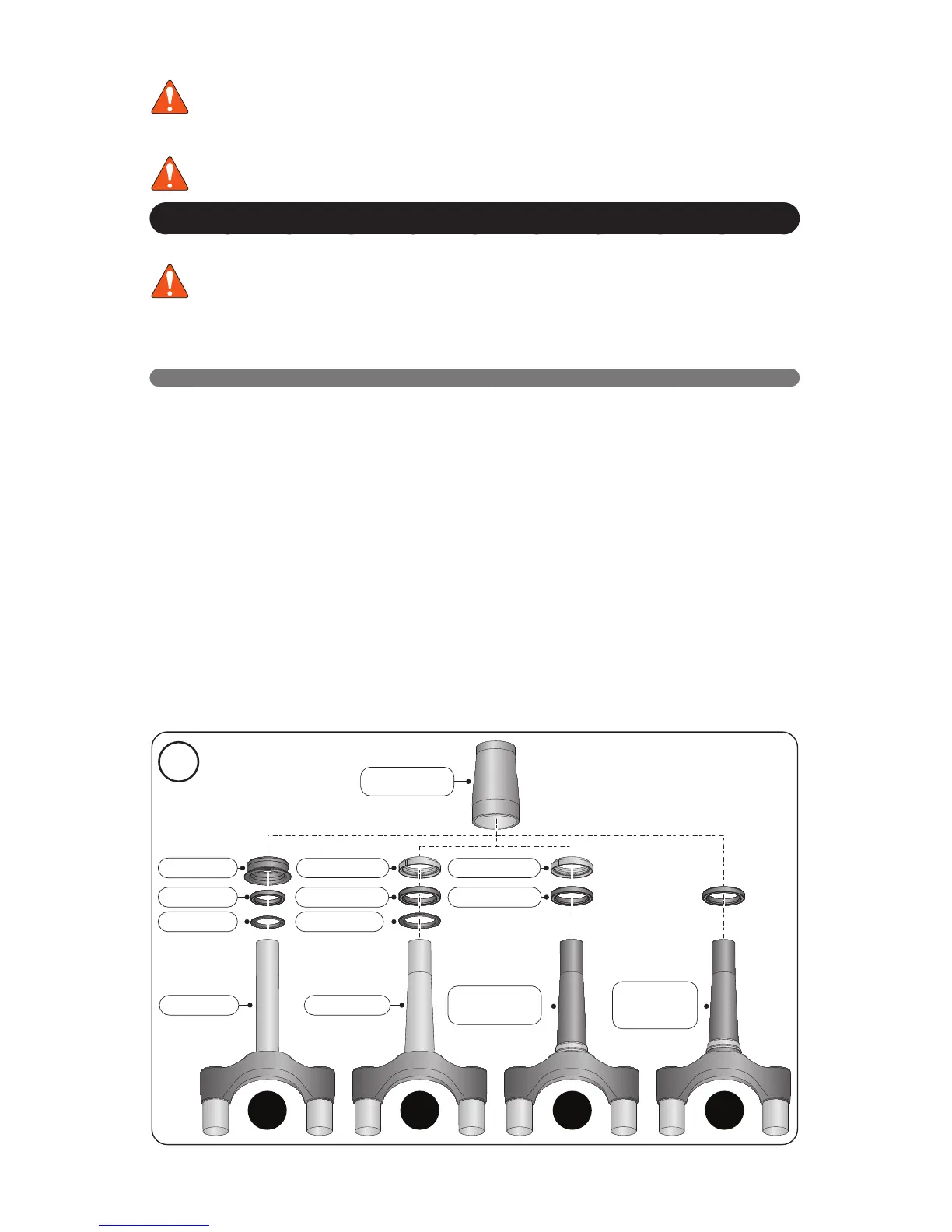

ENDURO (Fig.A)
1. Aftermarket brand fork with a 1 1/8” steerer tube
High position bearing adapter (Part # 2009-9060)
1 1/8” Campy-style bearing
Crown race
2. Aftermarket brand fork with 1 1/8” to 1.5” tapered steerer tube
1.5 slip-fit adapter (part # S09250004)
1.5” bearing (part # S092500001)
Crown race (part # S092500005)
3. Specialized fork with low position crown
1.5 slip-fit adapter (part # S09250004)
1.5” bearing (part # S092500001)
4. Specialized fork with high position crown
1.5” bearing only (part # S092500001)
High bearing head tube
1 1/8” - 1.5”
(Specialized-exclusive)
1.5” Adapter
Part #: S092500004
1.5” Bearing (52x40x7)
Part #: S092500001
1.5” Adapter
Part #: S092500004
1.5” Bearing (52x40x7)
Part #: S092500001
1.5” Crown Race
Part #: S092500005
1.5” to 1 1/8” Adapter
Part #: 2009-9060
1 1/8” Campy Bearing
1 1/8” Crown Race
1 1/8” Steerer Tube
1 1/8” to 1.5” Specialized
carbon steerer tube with
built-in crown race
(Low bearing position)
1 1/8” to 1.5”
Specialized carbon
steerer tube with
built-in crown race
(High bearing position)
1 1/8” to 1.5” Standard
Steerer Tube
1 2 3 4
A
