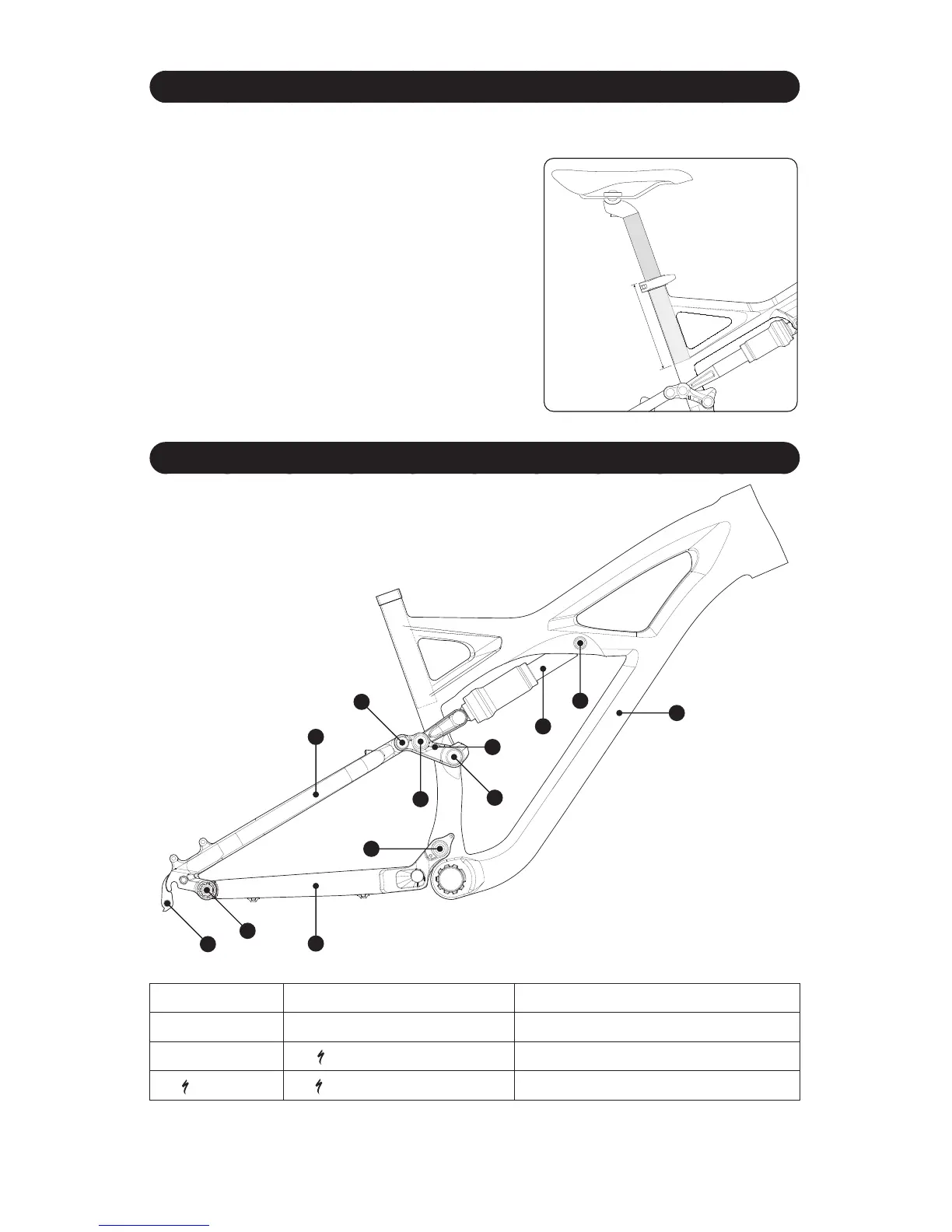

SEATPOST SETUP INFORMATION
SEATPOST MINIMUM INSERTION: To prevent damage to the frame, it’s important
to have a minimum amount of seatpost in the seat tube.
SM/MD:70mm
LG/XL:100mm
Carbon frames:
Small / Medium - 70mm insertion
Large / X-Large - 100mm insertion
Aluminum frames:
If you cannot see the seatpost tube through the
seat tube hole, your seatpost is too far extended.
If a greater saddle height is required, replace the
seatpost with a longer one.
FRAME FEATURES
1
2
3
4
5
6
7
8
9
10
11
12
1. Main Frame 5. Main Pivot / DMD 9. Lower Shock Eyelet
2. Seatstay 6. Dropout (Horst) Pivot 10. Upper Shock Eyelet
3. Chainstay
7.
-Link @ Seatstay Pivot
11. Shock
4.
-Link 8. -Link @ Frame Pivot 12. Replaceable Derailleur Hanger
