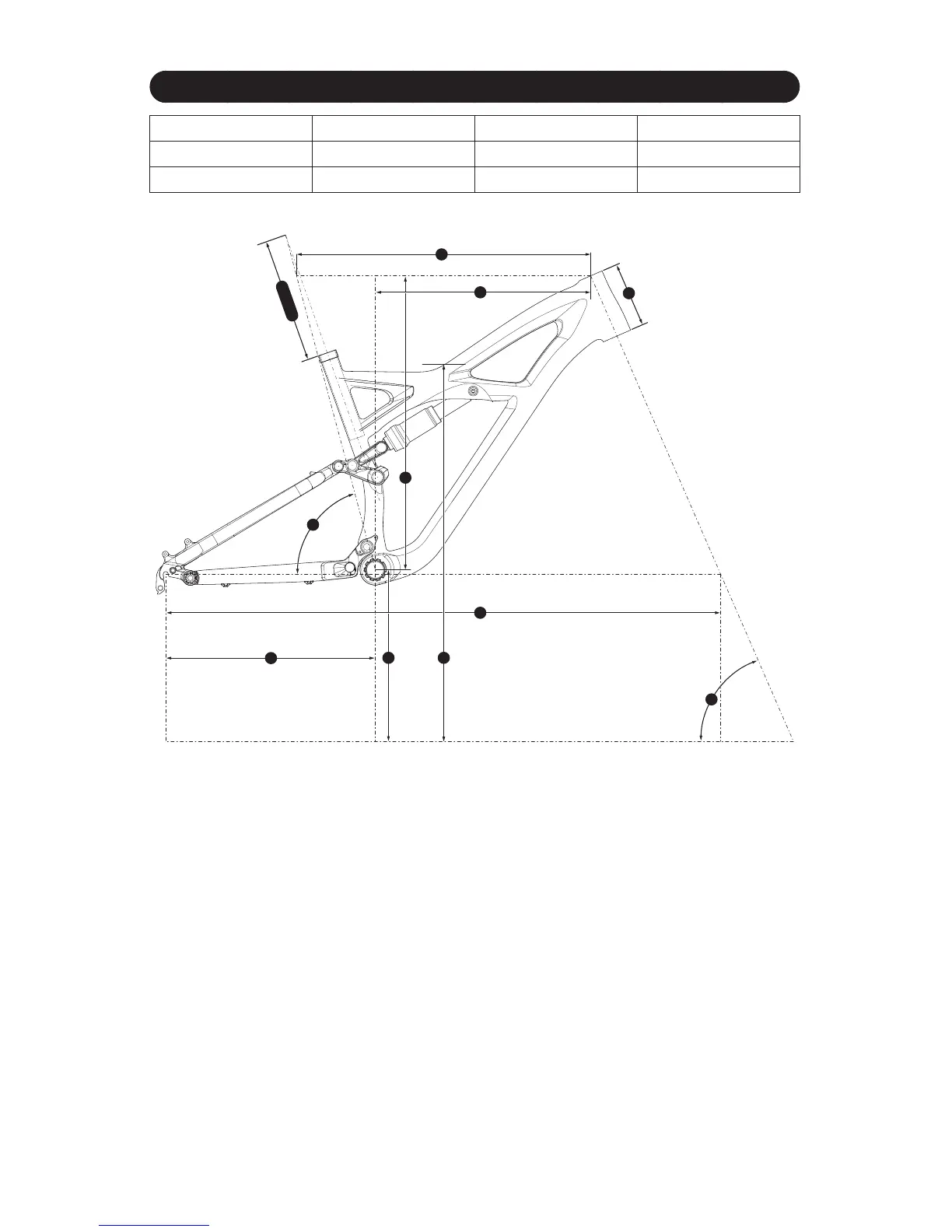

FRAME GEOMETRY
1. Top Tube Length
1
4. Seat Tube Angle
3
7. Standover Height
2
10. Reach
2. Chainstay Length 5. Head Tube Angle
4
8. Head Tube Length
3. BB Height 6. Wheelbase 9. Stack
9
1
8
5
4
3
6
2
10
7
250mm
1
TT length is the Horizontal Measurement from the center-line of the HT at the top of the
HT to the center-line of the projected seat tube.
2
Stand Over height is measured vertically at the centerpoint of the TT measurement.
3
Effective Seat Tube Angle is measured from BB to 250mm above seat collar.
4
All angles measured with the fork in the extended position (if the fork has travel adjust
capability). Head angle steepens by 0.75° when a travel adjust fork is in the lower
position. Enduro EVO measured with a 170mm travel fork.
Headset: 1 1/8” top, 1.5” bottom Rear hub spacing: 135mm
Seatpost diameter: 30.9mm
BB shell: 73mm (Including ISCG Mount)
Front derailleur clamp: E-Type Direct Mount (DMD)
Derailleur Hanger: 9895-4020
Carbon Frame Seat Collar: 36.9mm
Eye to Eye: 216mm (8.5”)
Alloy Frame Seat Collar: 34.9mm
Shock Stroke: 54mm (2.125”)
