DOOR (SELF-CLOSING)
NOTICE: Scan 67 1300 mm/1600 mm.

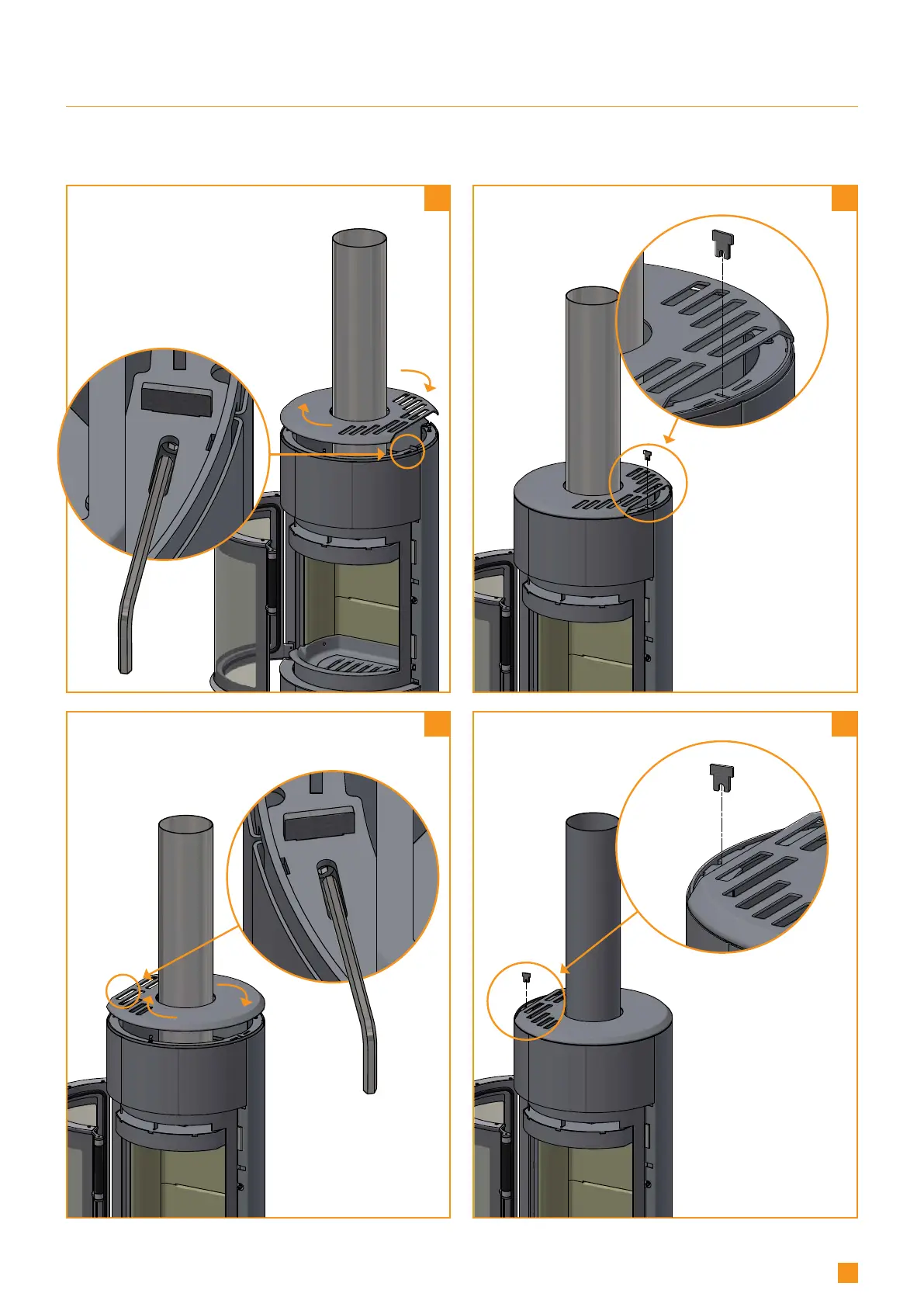

If you want a self-closing door, when the flue pipe is mounted, the front plate must first be removed.
Pull up the locking pieceLift the top plate and turn it a quarter turn.
Then loosen the screw inside the top.
Important! Open the door before
loosening the screws
Lift the top plate and turn it half a turn.
Then loosen the screw inside the top
Pull up the locking piece
