Fit the cover and tighten it.
Place the top plate
Fit the connecting piece with the four screws

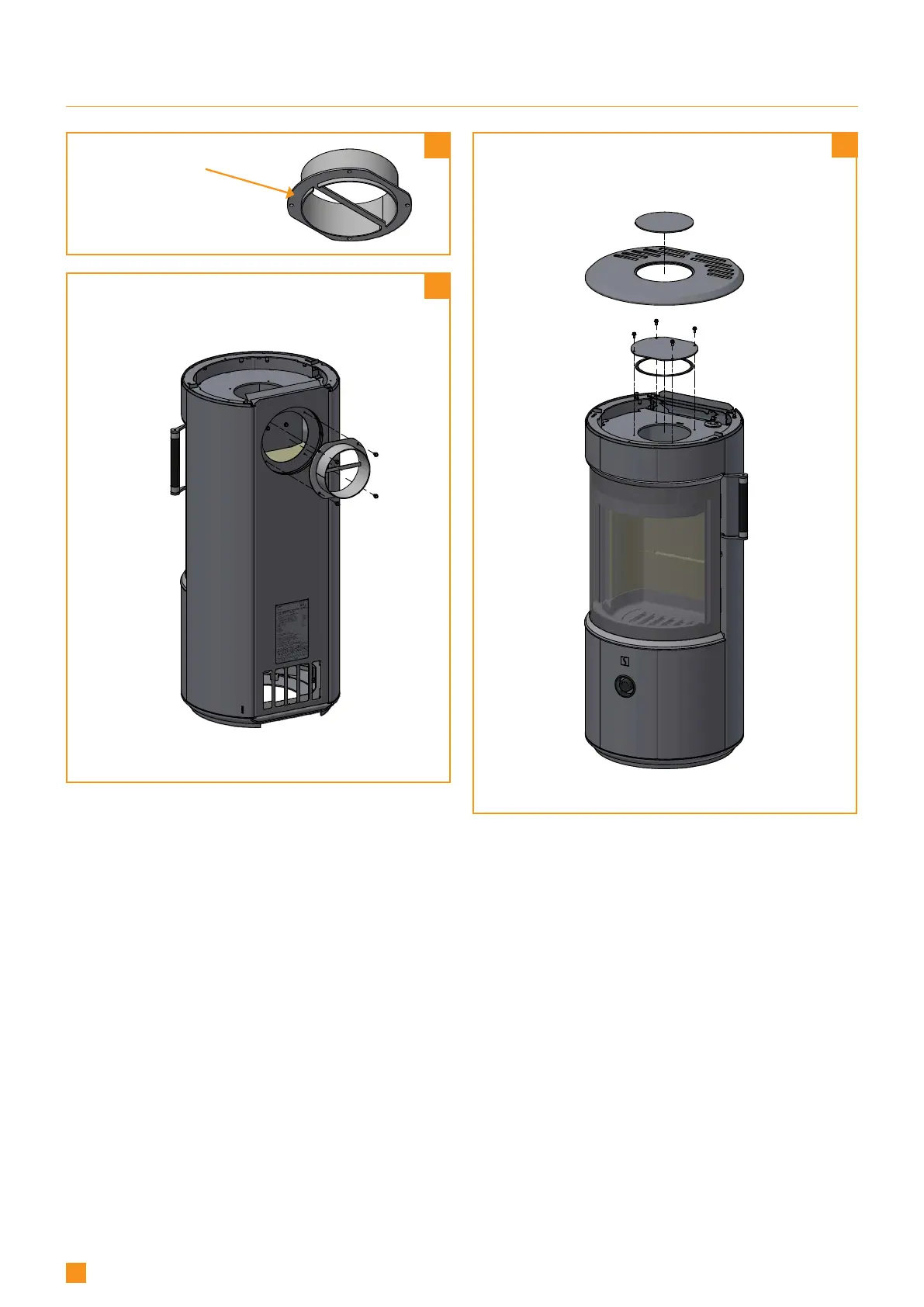

FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET
Mount the ceramic gasket on the
connecting piece
