SCAN A10 - Corner Installation; Ceiling Height

7

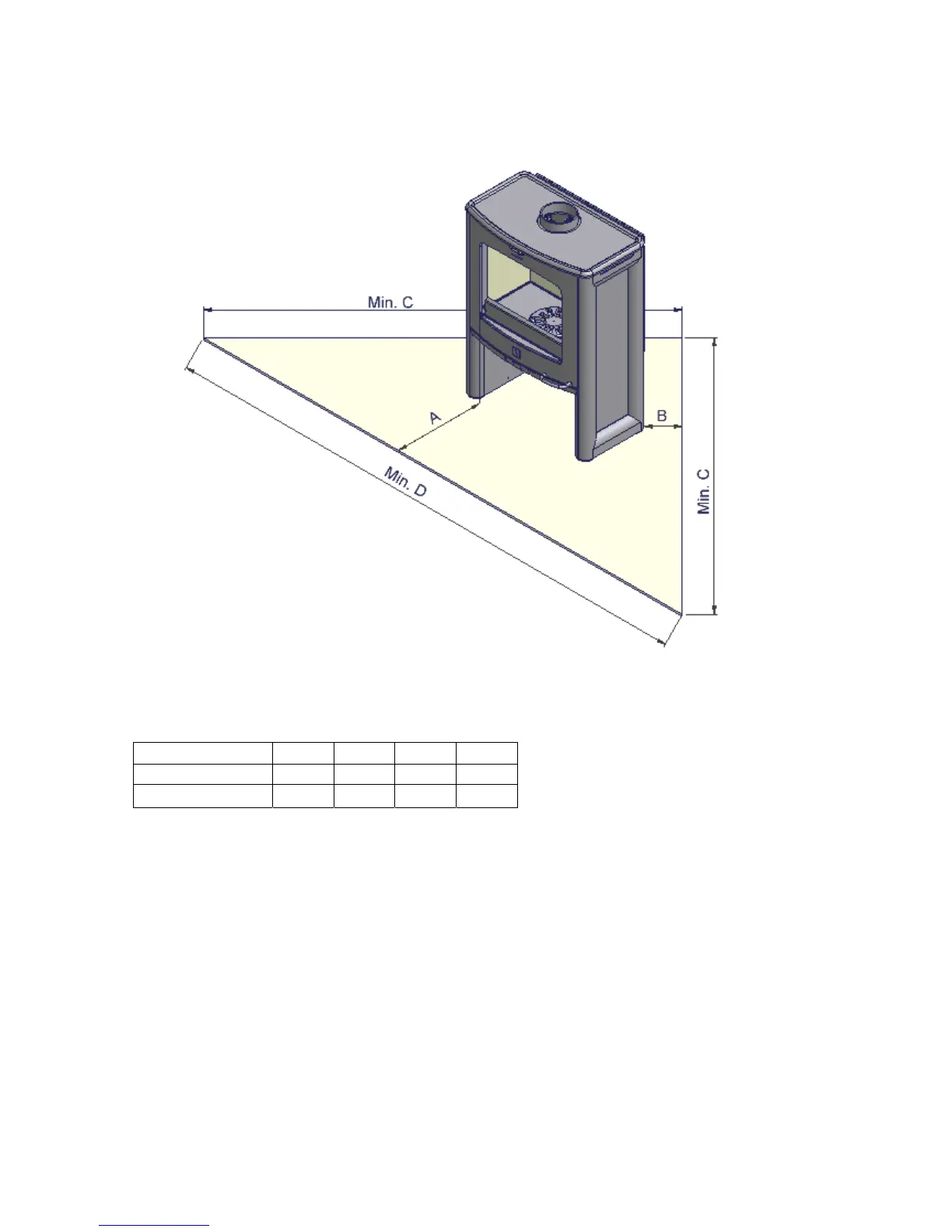

Corner installation
Floor protection for Corner Installation
A B C D
USA 16" 4” 69 5/8” 98 ½”
Canada 457 1840 2602
In a rear vent installation the floor protection must also extend under the stovepipe a minimum of 2”
(50mm) beyond either side of the pipe.
Ceiling Height:
Do not install in an alcove or confined space and do not install in a room with a ceiling high below 7’
(210 cm)
