6.0 Service
Warning! Any unauthorised changes to the product is not
allowed! Only original spare parts may be used!
6.1 Replacing the baffl e/defl ectors

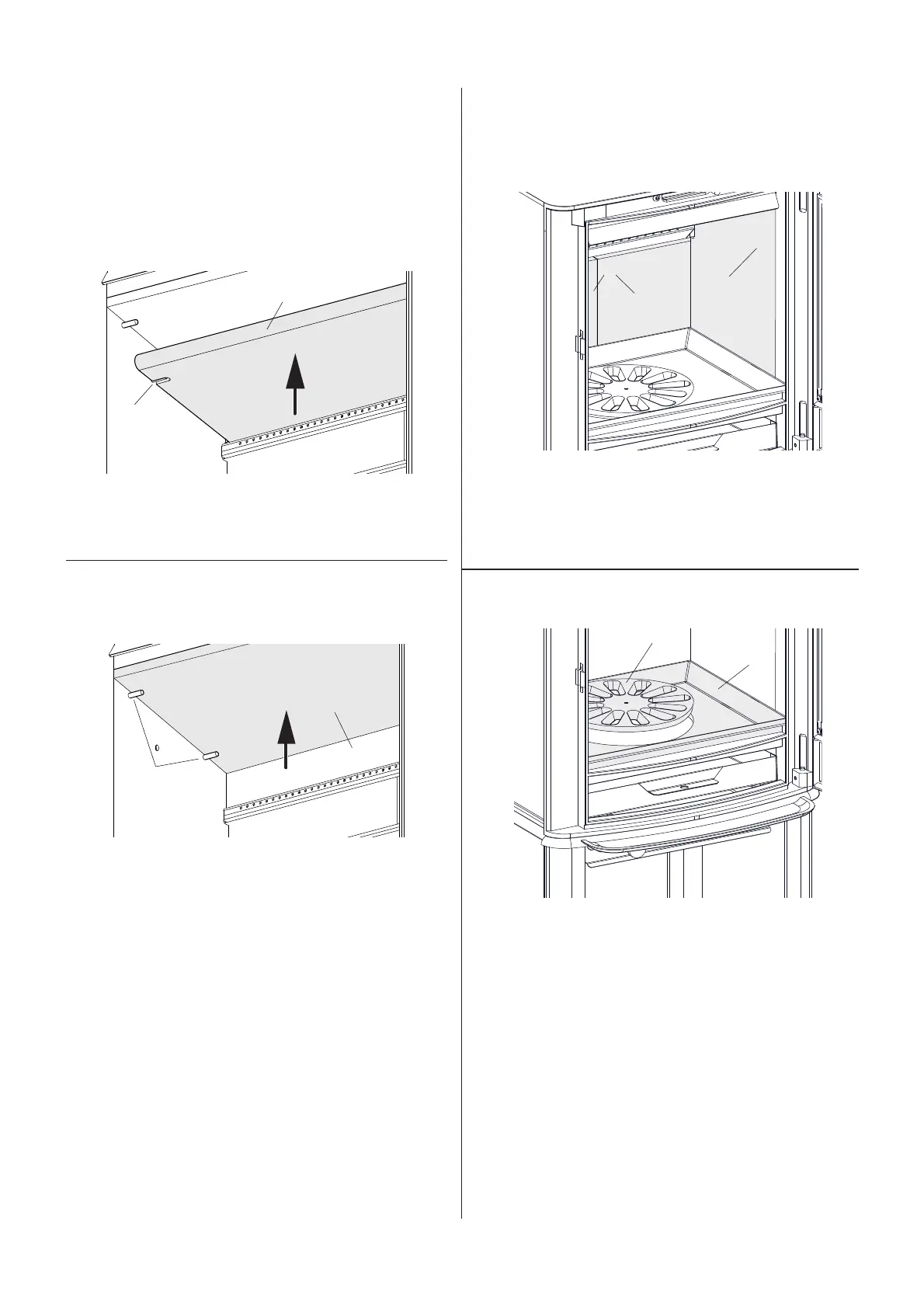

Fig. 17
B
A
1. Lift the baffl e (fi g. 17A) up carefully.
2. Remove the pins (fi g. 17B).
3. Ease the baffl e out.
Fig. 18
B
A
1. Lift the exhaust defl ector (fi g. 18A) up carefully.
2. Remove the pins (fi g. 18B).
3. Ease the exhaust defl ector out.
6.2 Replacing the burn plates/inner
bottom
Fig. 19
B
A
1. Take out the baffl e/exhaust defl ector (see 6.1 - Replacing
the baffl e/exhaust defl ectors)
2. Take out the side burn plates (fi g. 19A).
3. Take out the rear burn plates (fi g. 19B).
Fig. 20
A
B
4. Lift out the ash grate (fi g. 20A) and inner bottom plate
(fi g. 20B).
5. When refi tting, follow the same procedure in reverse order.
