Scantool 16AE - Page 44

42

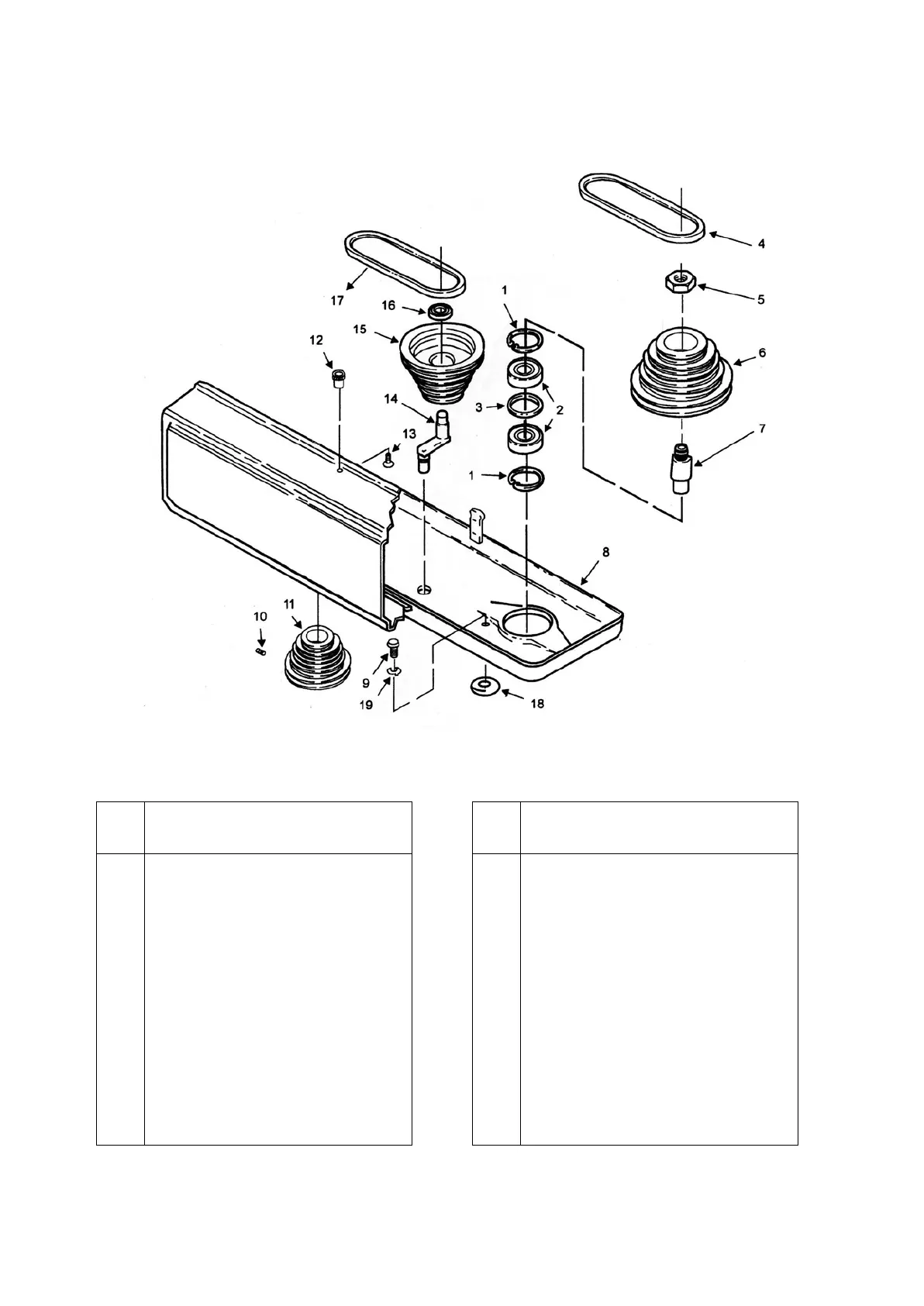

FIGUR 3
Key
No.
Description
Key
No.
Description
1
Ring-Retaining
10
Screw-Set M10*1.5-12
2
Bearing-Ball 25mm
11
Pulley-Motor
3
Spacer-Bearing
12
Knob
4
Belt-"V" M24
13
Screw-Pan HD M5*0.8-12
5
Nut-Pulley
14
Pivot-Ldler
6
Pulley-Spindle
15
Pully-Center
7
Insert-Pulley
16
Bearing-Ball 15mm
8
Guard-Pulley w/Labels
18
Washer Foam
9
Screw-RD HD Washer
19
Lock Washer Ext.M6
M6*1.0
-16
