Scantool 50-2000 - Warranty; Warranty Conditions

19

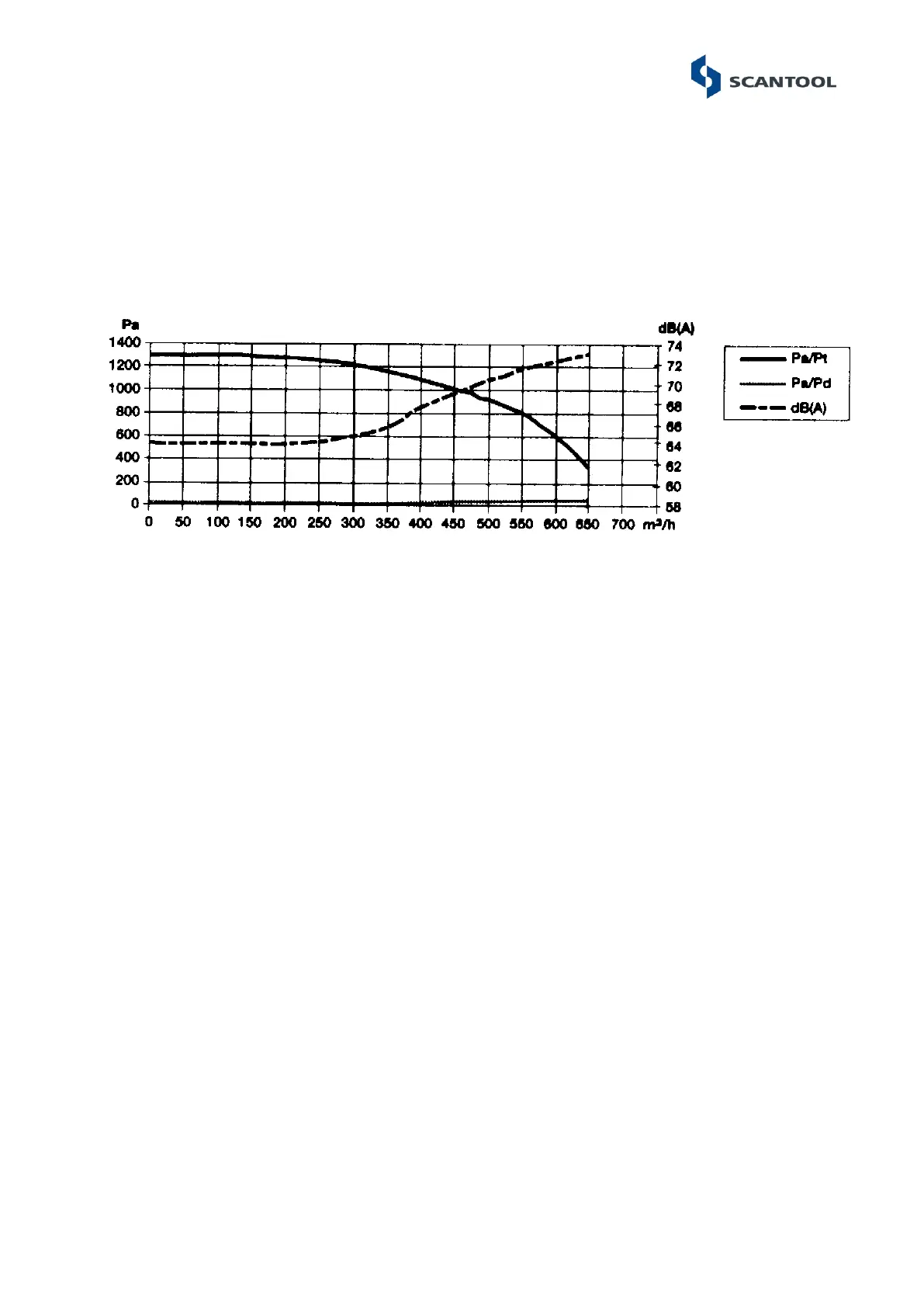

4.4 Pressure diagram
The fan is especially developed for belt grinders. It provides a pressure of up to 1300 Pa
and an air flow from 0 to 650 m³/hour. It is manufactured in 1,5 mm sheet steel and is
welded. Available in 3x400V and 50/60Hz, 2800 revolutions per min. The ventilator is
encapsulated in class IP54.
