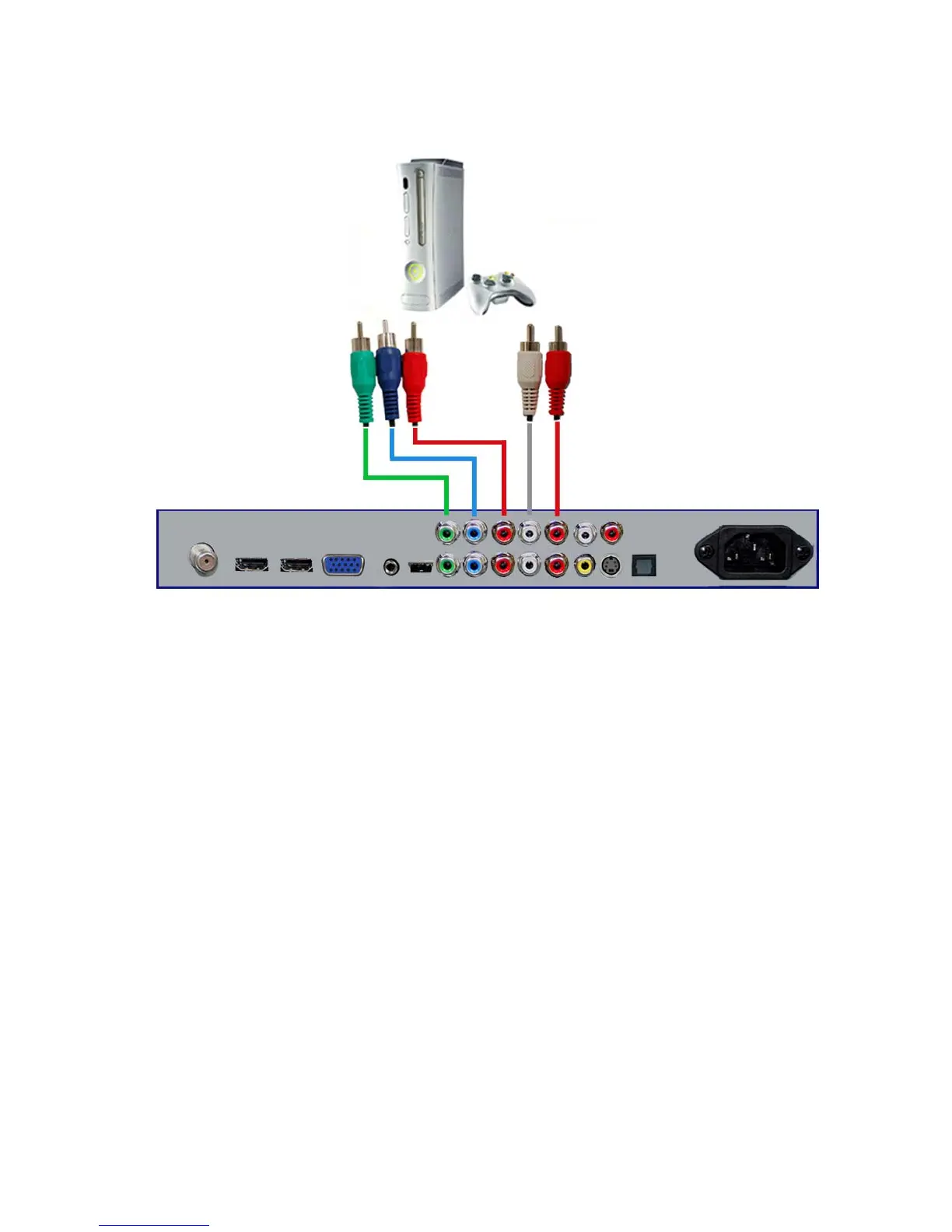

For Your Xbox 360™…
1. Make sure the power of X46 LCD HDTV and your Xbox 360 is turned off.
2. Obtain the Xbox360 Component Cable. Connect the green color connector to Component
1’s green connector port off the back of your X46 LCD HDTV.
3. Connect the blue color connector to Component 1’s blue connector port off the back of your
X46 LCD HDTV.
4. Connect the red color connector to Component 1’s red connector port off the back of your
X46 LCD HDTV.
5. Connect the white color connector Component 1’s white connector port off the back of your
X46 LCD HDTV to the right side of your green, blue, red component connection.
6. Connect the red color connector to Component 1’s red connector port off the back of your
X46 LCD HDTV to the right side of your green, blue, red component connection.
7. Connect the gray head to your Xbox 360 and make sure the switch on the head is switched
to HD.
8. Turn on the X46 LCD HDTV and your Xbox 360.
9. Use the remote control’s source button or the source button on the right side of the TV to
switch to YPbPr 1.
Please Note :
• Make sure to not confuse the red connector for video with the red connector for
audio, they are on separate rows on the Xbox 360’s connector.
• If Component 1 is already occupied, please use Component 2 as your
connection port and switch to source YPbPr 2.
• Please reference the Xbox 360’s manual as well, to make sure the Xbox 360 is
configured to output correctly to the TV.
• This TV will turn off automatically if there’s no signal present for more than 15
minutes.
